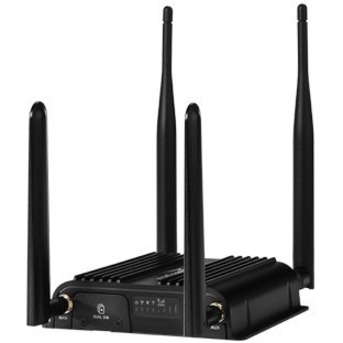

CradlePoint IBR600C Data Networking Model Overview
NetCloud Solution Packages with the compact, semi-ruggedized COR IBR600C Series routers are designed for secure, cloud-managed IoT networking. Embedded modems enable wired or wireless WAN connectivity using 4G LTE, 3G EVDO, or HSPA+ and include NetCloud Perimeter to addresses the biggest gap in IoT: security.

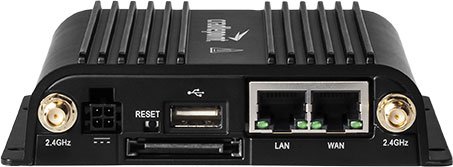

CradlePoint IBR600C-LPE-VZ Data Networking Overview
The Cradlepoint COR IBR600C Series routers are semi-ruggedized compact routers with embedded modems that enable wired or wireless WAN connectivity using 4G LTE, 3G EVDO, or HSPA+ for M2M and in-vehicle applications. This cloud-managed routing platform supports Cradlepoint NetCloud Engine and the Extensibility Platform to meet a wide range of fixed and mobile customer connectivity needs.
Embedded cellular modems with multi-carrier software-defined radios support 4G LTE and EVDO fallback on Verizon and Sprint, and HSPA+ fallback on AT&T and T-Mobile in the United States. The IBR600 series has one wired Gigabit Ethernet for WAN and/or LAN connectivity, one 10/100 Ethernet port, and 2.4 GHz WiFi. The IBR600C Series is built to provide excellent reliable connectivity for kiosks, surveillance cameras, and digital signs, as well as Parallel Networking, in-vehicle and other industrial, retail, and M2M applications.
KEY FEATURES
Embedded 100/50 Mbps Category 3 modem supports Verizon and Sprint with 4G LTE and 3G EVDO fallback
Multi-carrier software-define radios also support AT&T and T-Mobile with 4G LTE and HSPA+ fallback
Fully supported in Cradlepoint NetCloud: cloud management, cloud networking
Semi-ruggedized for industrial and in-vehicle applications
Extensibility
Supports Router SDK and ECM API
COR Extensibility Dock
Dual-modem support with MC400
2 extra 10/100 Ethernet ports
2×10 connector for extra GPIOs
5 V DC 50 mA sensor power
Redundant power supply capable
Sleep Mode / Ignition Sensing
Passive GPS (not recommended for vehicle tracking)
Benefits with Enterprise Cloud ManagerINCREASE NETWORK AVAILABILITY
Multi-carrier software-defined radios support 4G LTE and 3G EVDO and HSPA+ fallback
Supports Ethernet WAN (T1, DSL, Cable, MetroE), WiFi as WAN, and Metro WiFi
Dual-modem capability for failover or load balancing
Create real-time alerts to monitor network availability
DEPLOY & SCALE QUICKLY, MANAGE REMOTELY
Configure, monitor, and manage remotely: individually or in groups
Dashboards for at-a-glance network status
Robust analytics to manage data and usage
SECURE & PROTECT
Advanced security, VPN, and stateful firewall to protect sensitive data
Designed for PCI compliant network architectures
Cloud-managed security and content filtering (CIPA compliant)
Build, secure, control, and manage private virtual cloud networks with NetCloud
EXTEND & CUSTOMIZE
Extensibility Dock: add a second modem, FirstNet modem, or custom sensor or radio module
Router SDK: Support unique applications with custom scripts running on the router
ECM API: Utilize router data while maintaining single-pane-of-glass network management
Full specifications (PDF)
