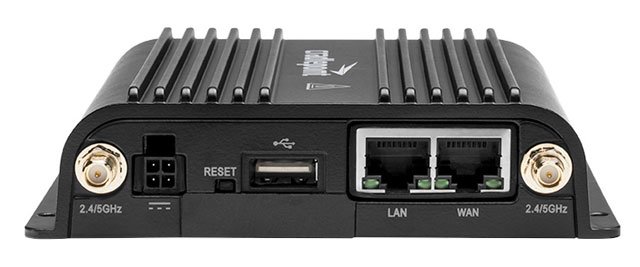

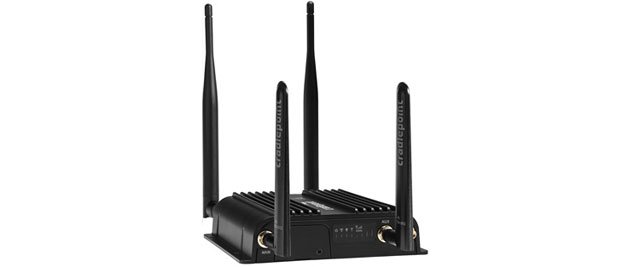

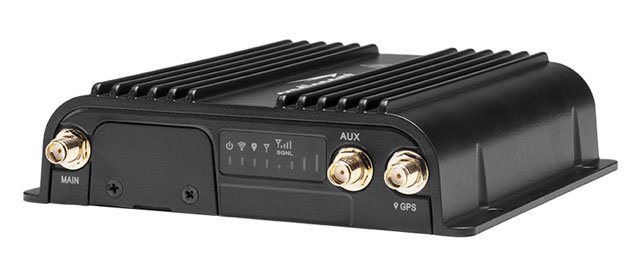

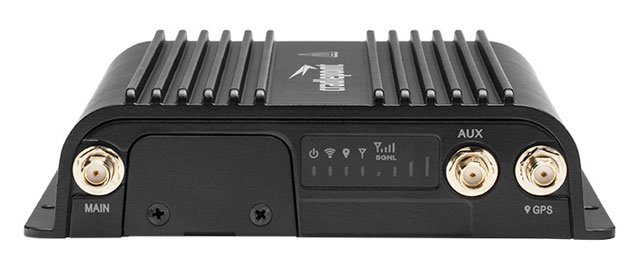

CradlePoint IBR1100LPE-VZ Data Networking

Part Number: IBR1100LPE-VZ
Model: IBR900
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Broadband Transmission Technology
CellularEthernet
Wireless LAN Standard
IEEE 802.11ac
ISM Band
Yes
UNII Band
Yes

Product Description:

  CradlePoint COR IBR1100LPE-VZ IEEE 802.11ac Cellular, Ethernet Modem/Wireless Router - 4G - LTE 1900, LTE 1700, LTE 2100, LTE 700, WCDMA 850, WCDMA 900, WCDMA 1900, WCDMA 2100, GSM 850, GSM 900, GSM 1800, ... - LTE, HSPA+, EVDO, UMTS, GPRS, EDGE - 2.40 GHz ISM Band - 5 GHz UNII Band - 12.50 MB/s Wireless Speed - 3 x Broadband Port - USB - Fast Ethernet - VPN Supported - Desktop
Explore all CradlePoint IBR900 Data Networkings
Add to Quote
CradlePoint IBR1100LPE-VZ Data Networking
CradlePoint IBR1100LPE-VZ Data Networking
CradlePoint IBR1100LPE-VZ Data Networking
CradlePoint IBR1100LPE-VZ Data Networking
CradlePoint IBR1100LPE-VZ Data Networking
CradlePoint IBR1100LPE-VZ Data Networking
CradlePoint IBR1100LPE-VZ Data Networking
CradlePoint IBR1100LPE-VZ Data Networking
CradlePoint IBR1100LPE-VZ Data Networking CradlePoint IBR1100LPE-VZ Data Networking CradlePoint IBR1100LPE-VZ Data Networking CradlePoint IBR1100LPE-VZ Data Networking CradlePoint IBR1100LPE-VZ Data Networking CradlePoint IBR1100LPE-VZ Data Networking CradlePoint IBR1100LPE-VZ Data Networking CradlePoint IBR1100LPE-VZ Data Networking
Full specifications (PDF)

CradlePoint IBR900 Data Networking Model Overview

NetCloud Solution Packages with the ruggedized IBR900 LTE router are designed to enable secure enterprise-grade networking for mobile networks in police and first responder vehicles, utility and service vans, and anywhere reliable mobile connectivity is required.
CradlePoint IBR1100LPE-VZ Data Networking Overview

The CradlePoint COR IBR1100 Series is a compact, ruggedized 3G/4G/LTE networking solution designed for mission critical connectivity in the most challenging environments.

Ideal for in-vehicle networks including police cars, ambulances, and mass transit, this cloud-managed solution provides organizations the ability to scale deployments quickly and manage their vehicle networks easily in real time.

With an extensive list of safety and hardening certifications, the COR IBR1100 is engineered to protect against extreme temperatures, humidity, shocks, vibrations, dust, water splash, reverse polarity and transient voltage.

Full specifications (PDF)
Wireless Specifications
Broadband Transmission Technology:
  • Cellular
  • Ethernet
Wireless LAN Standard:
IEEE 802.11ac
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Maximum Frequency:
5 GHz
Cellular Generation:
4G
Cellular Network Supported:
  • LTE 1900
  • LTE 1700
  • LTE 2100
  • LTE 700
  • WCDMA 850
  • WCDMA 900
  • WCDMA 1900
  • WCDMA 2100
  • GSM 850
  • GSM 900
  • GSM 1800
  • GSM 1900
  • CDMA 800
  • CDMA 1900
Cellular Data Connectivity Technology:
  • LTE
  • HSPA+
  • EVDO
  • UMTS
  • GPRS
  • EDGE
Total Wireless Transmission Speed:
12.50 MB/s
Interfaces/Ports
USB:
Yes
PoE (RJ-45) Port:
No
Number of Broadband (RJ-45) Ports:
3
Network & Communication
Ethernet Technology:
Fast Ethernet
VPN Supported:
Yes
Physical Characteristics
Form Factor:
Desktop
Height:
1.4"
Width:
5.3"
Depth:
4.4"
Weight (Approximate):
1.01 lb
Miscellaneous
Package Contents:
  • COR IBR1100LPE-VZ Modem/Wireless Router
  • 2 meter Locking Power and GPIO Cable (Direct Wire)
  • Quick Start Guide with Warranty Information
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS 2
  • RoHS
  • WEEE
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0702458684312, 0795945994391, 0804879526209, 4923773153901, 4943783143266
UPC: 702458684312, 795945994391, 804879526209
EAN: 0702458684312, 0795945994391, 0804879526209, 4923773153901, 4943783143266
UNSPSC: 43222609
