CradlePoint CBA850LPE-VZ Data Networking

The CradlePoint CBA850LPE-VZ Data Networking has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

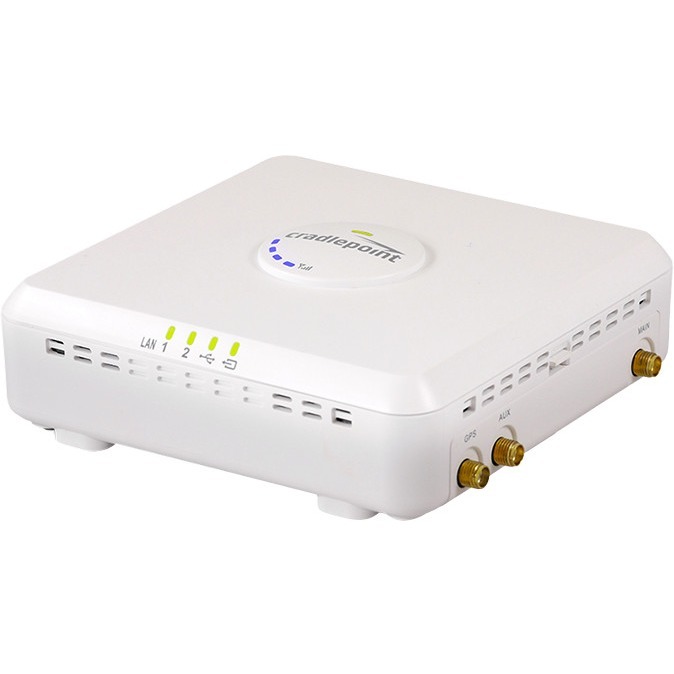

CradlePoint CBA850 - CradlePoint ARC CBA850LPE-VZ Cellular Wireless Router - 4G - LTE 1900, LTE 850, LTE 1700, WCDMA 850, WCDMA 900, WCDMA 1900, WCDMA 2100, LTE 2100, LTE 700, GSM 850, GSM 900, ... - LTE, HSPA+, UMTS, GPRS, EDGE, EVDO(2 x External) - 2 x Network Port - USB - PoE Ports - Gigabit Ethernet - Wall Mountable, Desktop, Rail-mountable
  • With the wireless router, you can enjoy wireless internet throughout your home or office
  • For USB-enabled devices accessibility, the router comes with a built-in USB port
  • Electrical power and data are transmitted using a single cable to devices such as Access Points, IP cameras or IP phones
  • Gigabit Ethernet port for ultra-fast wired network speeds
  • Wall mounting feature - Conveniently install the router while keeping the wires and cables organized
Read More
Discontinued Need Assistance?
Add to Quote
CradlePoint CBA850 Data Networking Model Overview
NetCloud Solution Packages for Branch Networks with the CBA850 LTE Adapter are designed as turnkey networking solutions for best-in-class 3G/4G/LTE failover that integrates seamlessly with existing network infrastructure.
CradlePoint CBA850LPE-VZ Data Networking Overview

FOR FAILOVER & OUT-OF-BAND MANAGEMENT

The Cradlepoint ARC CBA850 is a turnkey networking solution for best-in-class 3G/4G/LTE failover that integrates seamlessly with existing network infrastructure. Using Enterprise Cloud Manager PRIME, the ARC CBA850 provides the ability to extend management capability to any primary router Out-of-Band without a static IP. Equipped with Power-over-Ethernet for flexible, unobtrusive placement anywhere to optimize cellular reception, this powerful solution reduces truck rolls, consolidates infrastructure, and maximizes uptime for businesses that require always-on connectivity.

Defining the industry standard for reliability in cellular routing, the cloud-managed ARC CBA850 empowers administrators to maximize infrastructure investments with a high-speed, automatic secondary path to access and control the network at remote locations when connectivity is lost or even if the primary router goes down.

Wireless Specifications
Broadband Transmission Technology:
Cellular
Cellular Generation:
4G
Cellular Network Supported:
  • LTE 1900
  • LTE 850
  • LTE 1700
  • WCDMA 850
  • WCDMA 900
  • WCDMA 1900
  • WCDMA 2100
  • LTE 2100
  • LTE 700
  • GSM 850
  • GSM 900
  • GSM 1800
  • GSM 1900
  • CDMA 800
  • CDMA 1900
Cellular Data Connectivity Technology:
  • LTE
  • HSPA+
  • UMTS
  • GPRS
  • EDGE
  • EVDO
Number of External Antennas:
2
Interfaces/Ports
Number of Network (RJ-45) Ports:
2
USB:
Yes
PoE (RJ-45) Port:
Yes
Network & Communication
Ethernet Technology:
Gigabit Ethernet
VPN Supported:
No
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Desktop
  • Rail-mountable
Height:
1.7"
Width:
4.8"
Depth:
4.8"
Weight (Approximate):
1.32 lb
Miscellaneous
Package Contents:
  • ARC CBA850LPE-VZ Wireless Router
  • Universal 3G/4G/LTE Antennas with Dedicated Active GPS Antenna Port
  • 12VDC 1A Power Adapter (1.5 Meter Cord)
  • Ethernet Cable
  • Quick Start Guide
  • Mounting Hardware
  • Warranty and Regulatory Information
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
  • RoHS 2
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43222609
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The CradlePoint CBA850LPE-VZ Data Networking is also known as CBA850LPEVZ
