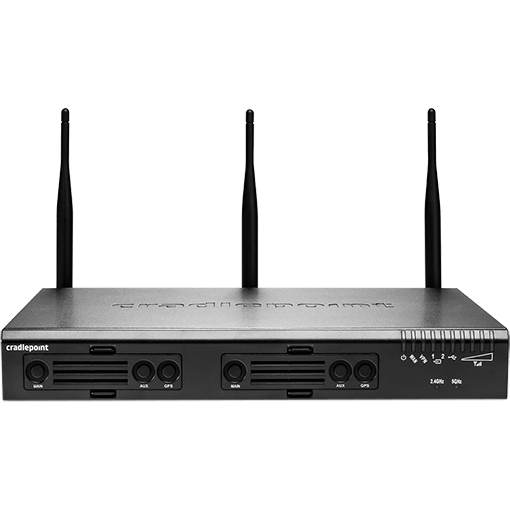

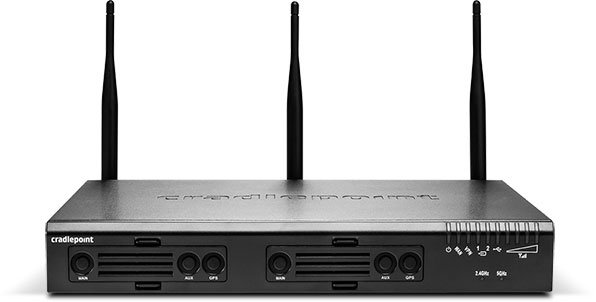

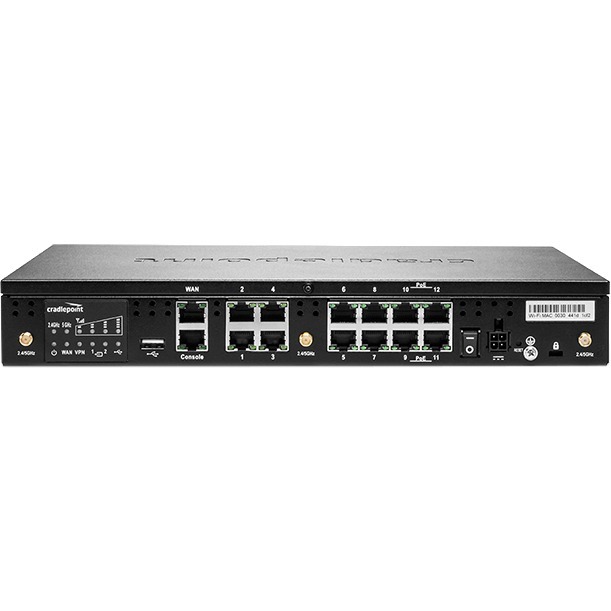

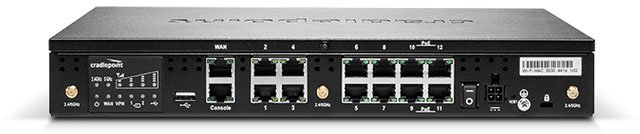

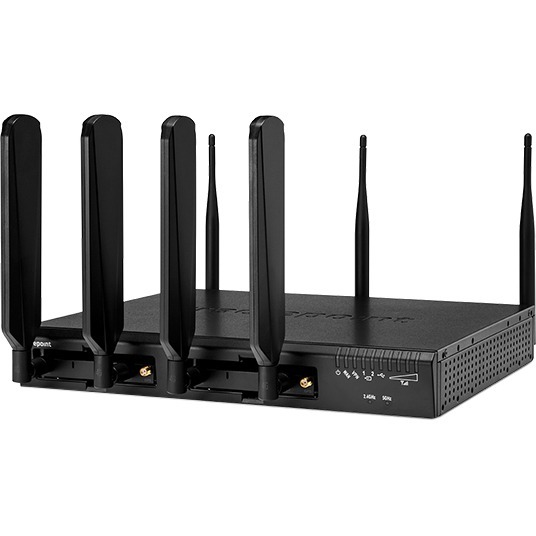

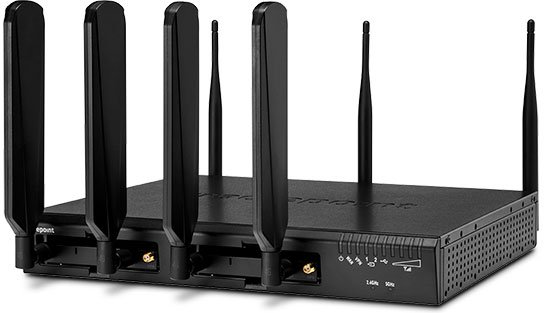

CradlePoint AER3100LPE-VZ Wireless Router

The CradlePoint AER3100LPE-VZ Wireless Router has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

CradlePoint AER3100 - CradlePoint IEEE 802.11ac Cellular, Ethernet Modem/Wireless Router - 4G - LTE 2100, LTE 1800, LTE 2600, LTE 900, LTE 800, WCDMA 800, WCDMA 850, WCDMA 900, WCDMA 1900, WCDMA 2100, GSM 850, ... - LTE, HSPA+, UMTS, GPRS, EDGE - 2.40 GHz ISM Band - 5 GHz UNII Band - 13 x Broadband Port - USB - PoE Ports - Gigabit Ethernet - VPN Supported - Rack-mountable, Desktop

Savor simultaneous downloading and seamless streaming
Maximize the throughput for smoother and faster HD video streaming and file transfer by utilizing the ISM Band
Access USB-compatible peripherals accross the wireless network via built-in USB port
Electrical power and data are transmitted using a single cable to devices such as Access Points, IP cameras or IP phones
Gigabit Ethernet port for ultra-fast wired network speeds
Rack-mountable feature for convenient and safe installation of the router

Need a different version? See all CradlePoint AER3100 Wireless Routers

Discontinued Need Assistance?

Add to Quote

CradlePoint AER3100LPE-VZ Wireless Router

Overview

Full specifications (PDF)

CradlePoint AER3100 Wireless Router Model Overview

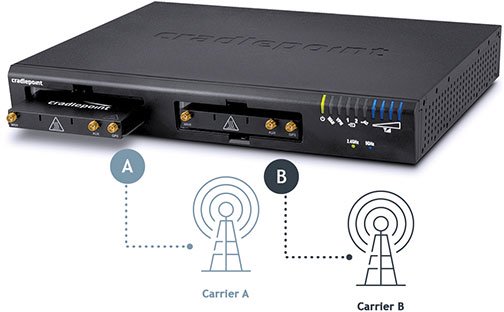

Cradlepoint's AER3100 is the industry's most robust cellular WAN management application system, and is the only 4G LTE networking platform to offer dual-modem multi-carrier support and Unified Threat Management (UTM) capabilities to meet the growing needs of small and micro branch networks. Administrators can extend best-in-breed management and security applications to remote branches with a solution that is customizable and lowers the total cost of ownership in a single deployment.

CradlePoint AER3100LPE-VZ Wireless Router Overview

The Cradlepoint AER3100 is an advanced edge routing solution that combines cloud-management, advanced security (UTM), WAN Diversity, industry leading 4G LTE failover, high performance WiFi, and dual modem capabilities for deployment versatility when wired lines are too costly or not available. Administrators can extend best-in-breed management and security applications to remote branches with a solution that is customizable and lowers the total cost of ownership in a single deployment.

Detailed Specs

Full specifications (PDF)

Wireless Specifications

Broadband Transmission Technology:

Cellular
Ethernet

Wireless LAN Standard:

IEEE 802.11ac

ISM Band:

Yes

UNII Band:

Yes

ISM Maximum Frequency:

2.40 GHz

UNII Maximum Frequency:

5 GHz

Cellular Generation:

Cellular Network Supported:

LTE 2100
LTE 1800
LTE 2600
LTE 900
LTE 800
WCDMA 800
WCDMA 850
WCDMA 900
WCDMA 1900
WCDMA 2100
GSM 850
GSM 900
GSM 1800
GSM 1900

Cellular Data Connectivity Technology:

LTE
HSPA+
UMTS
GPRS
EDGE

Interfaces/Ports

USB:

Yes

PoE (RJ-45) Port:

Yes

Number of Broadband (RJ-45) Ports:

Network & Communication

Ethernet Technology:

Gigabit Ethernet

VPN Supported:

Yes

Physical Characteristics

Form Factor:

Rack-mountable
Desktop

Height:

1.8"

Width:

12.2"

Depth:

10.6"

Weight (Approximate):

6 lb

Miscellaneous

Package Contents:

AER3100 Modem/Wireless Router
MC400 4G LTE Advanced or LTE modem with security screws (2)
External 3G/4G mobile broadband modem antennas (2) (SMA); finger tighten only
External dual-band high-gain WiFi antennas (3) reverse SMA (5 dBi, 2.4 GHz, 5 dBi 5 GHz, VSWR ? 2); finger tighten only
54V 2.25A AC/DC power adapter
Ethernet cable
Quick Start Guide
Warranty information
2 x Brackets for rack mounting with screws (8 + 4)
4 x Rubber feet for desk mounting
Field-replaceable battery for real-time clock, with pull tab

Environmentally Friendly:

Yes

Environmental Certification:

RoHS 2
WEEE

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0804879557050

UPC: 804879557050

EAN: 0804879557050

UNSPSC: 43222609

Reviews

Q&A

Get help from a Barcoding Expert!

The CradlePoint AER3100LPE-VZ Wireless Router is also known as AER3100LPEVZ
