CognitiveTPG Advantage LX – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: LBT42-2043-023R
Model: Advantage LX
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232)
Print Resolution
203 dpi
Max Print Width
4.25 inch

Product Description:

  CognitiveTPG Advantage LX LBT42-2043-023R Direct Thermal/Thermal Transfer Printer - Monochrome - Desktop - Label Print - Serial - 4.10" Print Width - 3 in/s Mono - 203 dpi - Label, Notch, Black Bar, Gap - 4.30" Label Width
Explore all CognitiveTPG Advantage LX Barcode Label Printers
Add to Quote
CognitiveTPG LBT42-2043-023R Barcode Label Printer
CognitiveTPG LBT42-2043-023R Barcode Label Printer
CognitiveTPG LBT42-2043-023R Barcode Label Printer CognitiveTPG LBT42-2043-023R Barcode Label Printer
Full specifications (PDF)

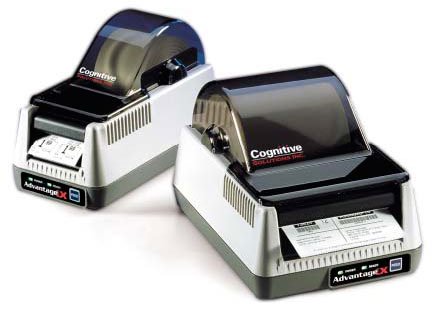

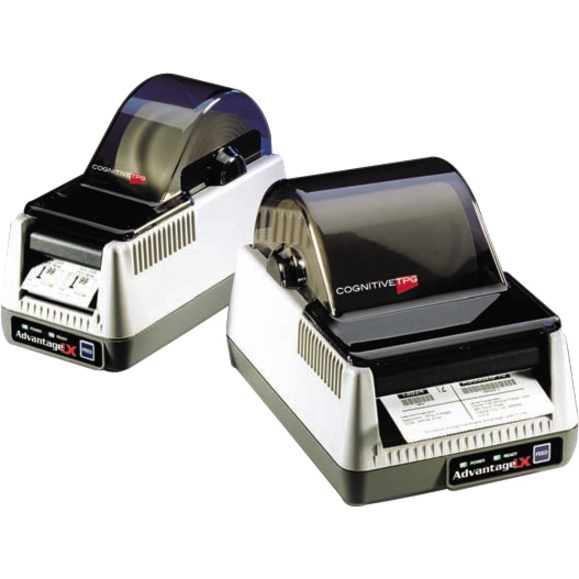

CognitiveTPG Advantage LX Barcode Label Printer Model Overview

Advantage LX printers are tough enough for industrial environments. Specified to print more than 5,000 labels per day, per printer, the rugged metal print mechanism is built to withstand the rigors of warehouses, conveyor lines, manufacturing environments and more.
CognitiveTPG LBT42-2043-023R Barcode Label Printer Overview

CognitiveTPG's most popular desktop label printer, the AdvantageLX (formerly known as the Blaster or Blazer), is still the preferred industry choice for mission critical desktop printer applications. It remains a much beloved printer by both its users and our resellers.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution:
203 dpi
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Add2
  • Add5
  • Codabar
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • D2 of 5
  • Code 2 of 5
  • S2 of 5
  • Interleaved 2 of 5
  • EAN-8+
  • EAN-8
  • EAN-13
  • EAN-13+
  • EAN 128
  • Maxi Code
  • MSI
  • MSI1
  • PDF-417
  • Plessey
  • POSTNET
  • UPC-A
  • UPC-A+
  • UPC-E
  • UPC-E1
Application/Usage:
Desktop
Memory
Standard Memory:
2 MB
Memory Technology:
DRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Media Types & Handling
Media Type:
  • Label
  • Notch
  • Black Bar
  • Gap
Maximum Roll Diameter:
4.70"
Maximum Label Width:
4.30"
Fonts & Emulation
Language Emulation:
CPL
Power Description
Power Source:
AC Supply
Input Voltage:
220 V AC
Physical Characteristics
Height:
6.1"
Width:
6.8"
Depth:
9.4"
Weight (Approximate):
4.40 lb
Miscellaneous
Package Contents:
  • Advantage LX LBT42-2043-023R Label Printer
  • Quick Start Guide
  • Power Supply
  • Software & Driver CD
Power Adapter Included:
Yes
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43212108
