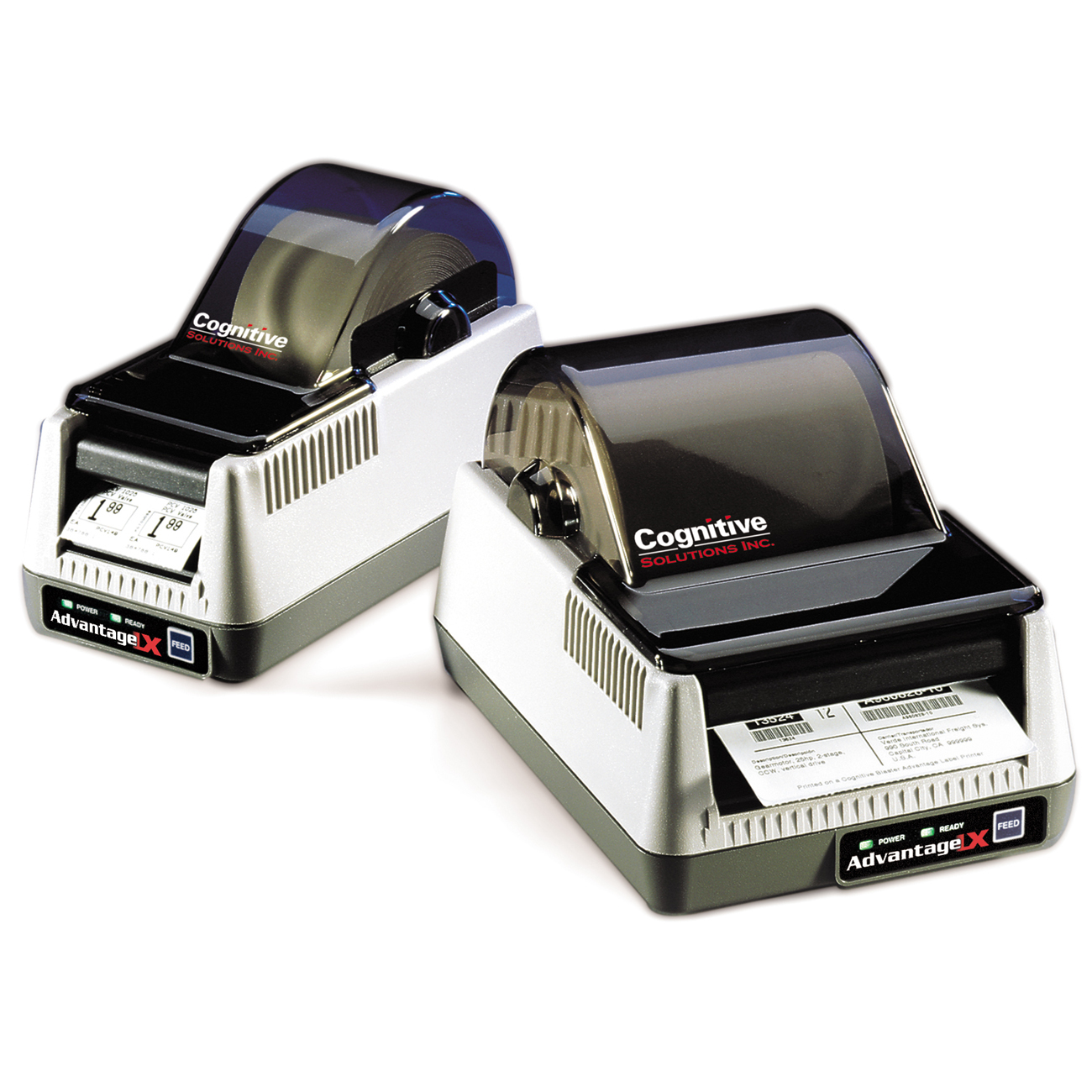

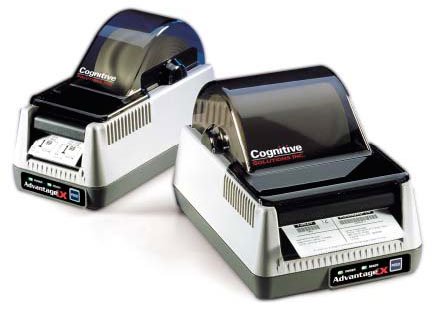

CognitiveTPG Advantage LX – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: LBT24-2043-014
Model: Advantage LX
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Serial (RS-232)
Print Resolution
203 dpi

Product Description:

  Cognitive Advantage LX BT24 Thermal Label Printer - Monochrome - 3 in/s Mono - 203 dpi - Serial - Ethernet
Explore all CognitiveTPG Advantage LX Barcode Label Printers
Add to Quote
CognitiveTPG LBT24-2043-014 Barcode Label Printer
CognitiveTPG LBT24-2043-014 Barcode Label Printer
CognitiveTPG LBT24-2043-014 Barcode Label Printer CognitiveTPG LBT24-2043-014 Barcode Label Printer
Full specifications (PDF)

CognitiveTPG Advantage LX Barcode Label Printer Model Overview

Advantage LX printers are tough enough for industrial environments. Specified to print more than 5,000 labels per day, per printer, the rugged metal print mechanism is built to withstand the rigors of warehouses, conveyor lines, manufacturing environments and more.
CognitiveTPG LBT24-2043-014 Barcode Label Printer Overview

Advantage LX BT24 Label Printerr is the only all-metal print mechanism in this price class providing outstanding power, print performance and value for any application.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
2.40"
Barcode Symbology Supported:
  • Codabar
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • D2 of 5
  • Industrial 2 of 5
  • Standard 2 of 5
  • EAN-8
  • EAN-8+
  • EAN-13
  • EAN-13+
  • EAN 128
  • Maxi Code
  • MSI
  • PDF-417
  • Plessey
  • POSTNET
  • UPC-A
  • UPC-A+
  • UPC-E
  • UPC-E1
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
2 MB
Memory Technology:
DRAM
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Black Bar
  • Notched
  • Gap
Media Sensor:
Reflective Media Sensor
Maximum Roll Diameter:
4.70"
Fonts & Emulation
Language Emulation:
CPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
6.1"
Width:
5"
Depth:
9.4"
Miscellaneous
Package Contents:
  • Advantage LX BT24 Label Printer
  • Companion CD-ROM
  • Power Supply
  • Windows Drivers
  • Quick Start Guide
  • Programmer's Guide
  • Label Design Software
Power Adapter Included:
Yes
Platform Supported:
PC
Warranty
Limited Warranty:
2 Year
