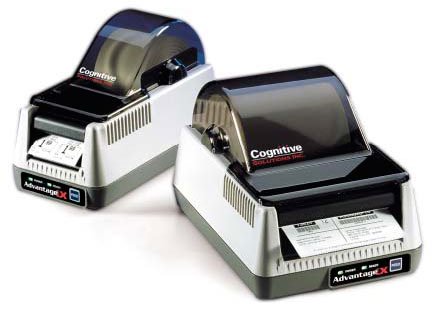

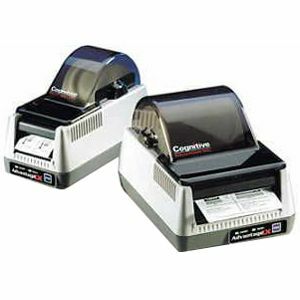

CognitiveTPG LBT24-2043-011 Barcode Label Printer

CognitiveTPG Advantage LX - Thermal transfer, 203 dpi, 2.4" print width, Serial interface, 2MB DRAM, 4MB flash. Includes US power supply and product reference guide. Order cables separately.

Advantage LX printers are tough enough for industrial environments. Specified to print more than 5,000 labels per day, per printer, the rugged metal print mechanism is built to withstand the rigors of warehouses, conveyor lines, manufacturing environments and more.

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Maximum Print Resolution: 203 dpi
  • Maximum Print Width: 2.40"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 2 of 5
    • Codabar
    • Code 16K
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • D2 of 5
    • Industrial 2 of 5
    • S2 of 5
    • EAN-8
    • EAN-8+
    • EAN-13
    • EAN-13+
    • EAN 128
    • Maxi Code
    • MSI
    • MSI1
    • PDF-417
    • Plessey
    • POSTNET
    • UPC-A
    • UPC-A+
    • UPC-E
    • UPC-E1

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: CognitiveTPG
  • Manufacturer: Cognitive TPG
  • Product Model: BT24
  • Product Name: Blaster Advantage BT24 Thermal Label Printer
  • Product Line: Blaster Advantage

Physical Characteristics

  • Height: 6.1"
  • Width: 5"
  • Depth: 9.4"

Interfaces/Ports

  • Serial Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • Blaster Advantage BT24 Label Printer
    • Companion CD-ROM
    • Power Supply
    • Windows Drivers
    • Quick Start Guide
    • Programmer's Guide
    • Label Design Software
    • Blaster Advantage BT24 Label Printer
    • Companion CD-ROM
    • Power Supply
    • Windows Drivers
    • Quick Start Guide
    • Programmer's Guide
    • Label Design Software
  • Additional Information:
    • Rugged and reliable all-metal mechanism
    • High lift printhead convenience
    • Graphics support
    • Clear media cover

Media Types & Handling

  • Media Type:
    • Black Bar
    • Notched
  • Media Sensor: Reflective Media Sensor
  • Maximum Roll Diameter: 4.70"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 2 MB
  • Flash Memory: 4 MB

Warranty

  • Limited Warranty: 2 Year

Full specifications (PDF)

Full specifications (PDF)

Brand CognitiveTPG
Model Advantage LX
Print Speed 3
Maximum Print Width 2.10
Print Method Thermal Transfer
Max Roll Outer Diameter 4.7
Max Label Width 2.40
Print Resolution 203 dpi
Label Core 1.5 inches
Interface Options Serial
Printer Type Desktop
Printer Mobility Not Mobile
Ribbon Core 0.5
