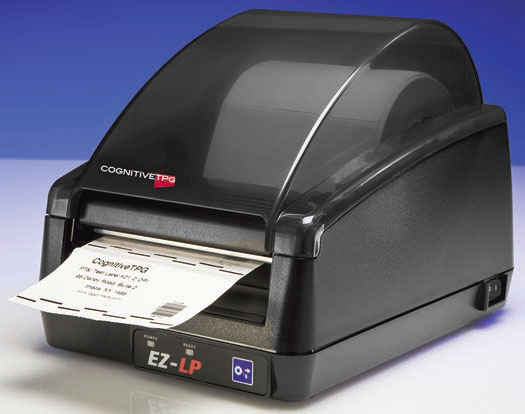

CognitiveTPG EZD42-2185-Z1S Barcode Label Printer

The CognitiveTPG EZD42-2185-Z1S Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
CognitiveTPG EZ-LP - CognitiveTPG EZ-LP Direct Thermal Printer - Monochrome - Black - Desktop - Label Print - USB - Serial - 4.10" Print Width - 5 in/s Mono - 203 dpi - Gap, Notch, Black Bar - 4.25" Label Width
Printer Type
Desktop
Printing Technology
Direct Thermal
Interface Options
Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
4.25 inch
  • A smart and inexpensive solution to print temporary documents
  • The printer is capable of printing sharp and detailed monochrome documents quickly
Read More

Need a different version? See all CognitiveTPG EZ-LP Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
CognitiveTPG EZD42-2185-Z1S Barcode Label Printer
CognitiveTPG EZD42-2185-Z1S Barcode Label Printer CognitiveTPG EZD42-2185-Z1S Barcode Label Printer
CognitiveTPG EZD42-2185-Z1S Barcode Label Printer
CognitiveTPG EZD42-2185-Z1S Barcode Label Printer
Full specifications (PDF)
CognitiveTPG EZ-LP Barcode Label Printer Model Overview
The CognitiveTPG EZ-LP desktop printer is your alternative to more expensive legacy printers, providing a better value with drop-in compatibility. The EZ-LP is a 4" wide direct thermal printer that comes standard with a durable print mechanism, extensive flash memory, 5" media roll capacity and multiple communication interface options and programming emulations. The EZ-LP is ideal for a wide range of applications, including work-in-process (WIP), logistics, and retail.
CognitiveTPG EZD42-2185-Z1S Barcode Label Printer Overview

The EZ-LP is CognitiveTPG's newest desktop barcode label printer. The EZ-LP 4 inch wide direct thermal printer offers a perfect alternative to replace or upgrade legacy desktop label printer installations.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5 in/s
Maximum Print Resolution:
203 dpi
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • EAN-8 With 2 or 5 Digit Extension
  • EAN-8
  • EAN-13
  • EAN-13 With 2 or 5 Digit Extension
  • Interleaved 2 of 5
  • POSTNET
  • UCC/EAN 128
  • UPC E with 2 and 5 add on
  • UPC-A
  • UPC-A with 2 and 5 Add-on
  • UPC-E
  • Aztec Code
  • Data Matrix
  • Maxi Code
  • PDF-417
  • Code 11
  • Plessey
  • UPS Maxi Code
  • RSS
  • Micro PDF-417
  • Industrial 2 of 5
  • Standard 2 of 5
  • UPC/EAN
  • QR Code
  • Planet Code
  • MSI
  • LOGMARS
Application/Usage:
Desktop
Memory
Standard Memory:
8 MB
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Gap
  • Notch
  • Black Bar
Media Size:
2" x 4.25"
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Fonts & Emulation
Language Emulation:
  • EcPL
  • ZcPL
Power Description
Power Source:
AC Supply
Input Voltage:
  • 220 V AC
  • 110 V AC
Physical Characteristics
Color:
Black
Height:
6.9"
Width:
6.9"
Depth:
9.5"
Weight (Approximate):
3.90 lb
Miscellaneous
Package Contents:
  • EZ-LP Label Printer
  • Quick Start Guide
  • User guide
  • Software CD
  • Power Supply and US cord
Power Adapter Included:
Yes
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 45101512
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The CognitiveTPG EZD42-2185-Z1S Barcode Label Printer is also known as COG-EZD42-2185-Z1S or EZD422185Z1S.
