CognitiveTPG DBT42-2085-G1S Barcode Label Printer

The CognitiveTPG DBT42-2085-G1S Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

CognitiveTPG DLXi - CognitiveTPG DLXi Direct Thermal/Thermal Transfer Printer - Monochrome - Desktop - Label Print - USB - 4.10" Print Width - 5 in/s Mono - 203 dpi - Black Bar, Notch, Gap - 4.25" Label Width

Printer Type

Desktop

Interface Options

Parallel, Serial (RS-232), USB

Print Resolution

203 dpi

Max Print Width

4.25 inch

Ribbon Core Size

0.5 inch

A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
Delivers high-speed, hassle-free labeling solution for your business needs
Produce high-quality documents with this monochrome printer to increase your productivity

Need a different version? See all CognitiveTPG DLXi Barcode Label Printers

Discontinued Need Assistance?

Add to Quote

CognitiveTPG DBT42-2085-G1S Barcode Label Printer

Overview

Full specifications (PDF)

CognitiveTPG DLXi Barcode Label Printer Model Overview

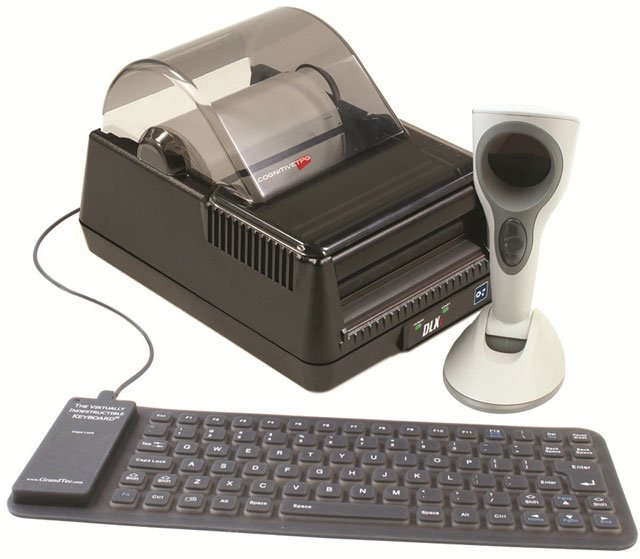

Robust and rugged are the hallmarks of the Blaster and Advantage line of thermal label printers. CognitiveTPG is carrying on this tradition with the introduction of its latest desktop thermal label printer, the DLXi. The DLXi combines legendary reliability with the latest communication interfaces and performance. The DLXi is designed to operate in challenging environments while providing seamless migration from legacy installations and maximum exibility.

CognitiveTPG DBT42-2085-G1S Barcode Label Printer Overview

Built to last...designed to connect.

Robust and rugged are the hallmarks of the Blaster and Advantage LX thermal label printers. CognitiveTPG is carrying on this tradition with the introduction of its latest desktop thermal label printer, the DLXi. The DLXi combines legendary reliability with the latest communication interfaces and performance. The DLXi is designed to operate in challenging environments while providing a seamless migration to the latest technology and performance.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

5 in/s

Maximum Print Resolution:

203 dpi

Maximum Print Width:

4.10"

Barcode Symbology Supported:

Add2
Add5
Codabar
Code 39
Code 93
Code 128-A
Code 128-B
Code 128-C
D2 of 5
I-2/5
S2 of 5
EAN-8
EAN-8+
EAN-13
EAN-13+
EAN 128
Maxi Code
MSI1
MSI
Plessey
POSTNET
UPC-A
UPC-A+
UCP-E
UPC-E1
Data Matrix
Aztec Code
QR Code
RSS
PDF-417

Application/Usage:

Desktop

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

8 MB

Interfaces/Ports

Parallel Port:

Yes

USB:

Yes

Media Types & Handling

Media Type:

Black Bar
Notch
Gap

Maximum Roll Diameter:

4.70"

Maximum Label Width:

4.25"

Fonts & Emulation

Language Emulation:

CPL
ZcPL
EcPL

Power Description

Power Source:

Power Adapter
AC Supply

Input Voltage:

24 V DC
120 V AC
230 V AC

Physical Characteristics

Height:

6.1"

Width:

6.8"

Depth:

9.4"

Weight (Approximate):

4.40 lb

Miscellaneous

Package Contents:

DLXi Label Printer
Quick Start Guide
USB Cable
Power Supply
Power Cord

Cables Included:

USB

Power Adapter Included:

Yes

Platform Supported:

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0088064911524, 0853585555225

UPC: 088064911524, 853585555225

EAN: 0088064911524, 0853585555225

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The CognitiveTPG DBT42-2085-G1S Barcode Label Printer is also known as COG-DBT422085G1S
