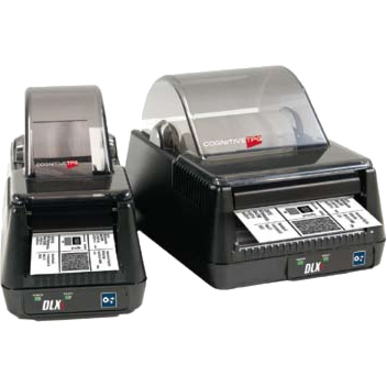

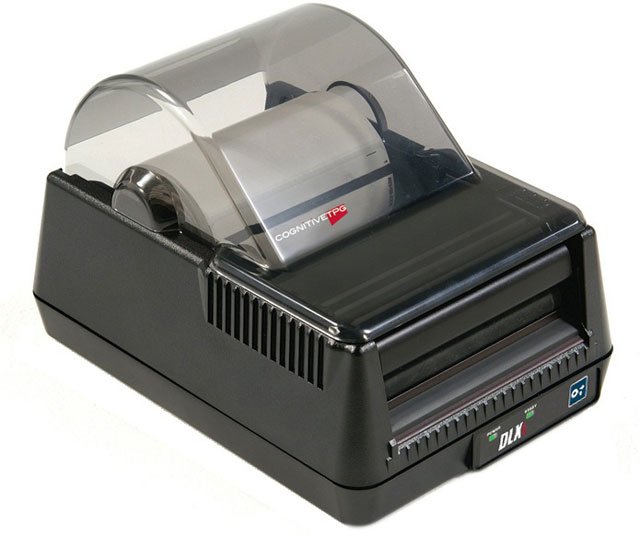

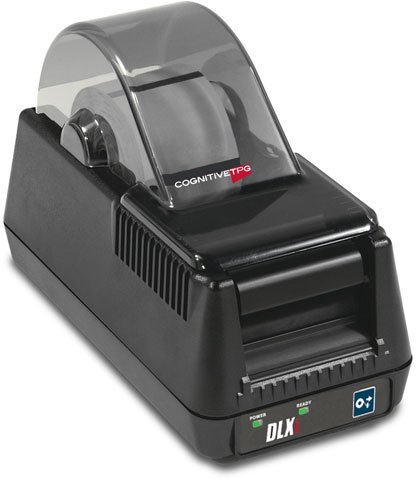

CognitiveTPG DBD42-2085-G2S Barcode Label Printer

CognitiveTPG DLXi - 4.2, DT, 203 dpi, 8MB, 5 ips USB/A, SERIAL, PARALLEL, EU/UK
Built to last designed to connect

Robust and rugged are the hallmarks of the Blaster and Advantage line of thermal label printers. CognitiveTPG is carrying on this tradition with the introduction of its latest desktop thermal label printer, the DLXi. The DLXi combines legendary reliability with the latest communication interfaces and performance. The DLXi is designed to operate in challenging environments while providing seamless migration from legacy installations and maximum exibility.

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Add2
    • Add5
    • Codabar
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • D2 of 5
    • I-2/5
    • S2 of 5
    • EAN-8
    • EAN-8+
    • EAN-13
    • EAN-13+
    • EAN 128
    • Maxi Code
    • MSI1
    • MSI
    • Plessey
    • POSTNET
    • UPC-A
    • UPC-A+
    • UCP-E
    • UPC-E1
    • Data Matrix
    • Aztec Code
    • QR Code
    • RSS
    • PDF-417

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: CognitiveTPG
  • Manufacturer: Cognitive TPG
  • Product Model: DLXi
  • Product Name: DLXi Label Printer

Physical Characteristics

  • Height: 6.1"
  • Width: 6.8"
  • Depth: 9.4"
  • Form Factor: Desktop
  • Weight (Approximate): 3.90 lb

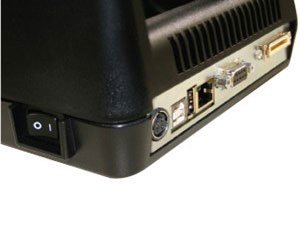

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.20"
  • Media Type:
    • Black Bar
    • Notch
    • Gap
  • Maximum Roll Diameter: 4.70"

Fonts & Emulation

  • Language Emulation:
    • TCPL
    • ZcPL
    • EcPL

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Other

  • Platform Supported: PC

Power Description

  • Power Source: Power Adapter

Full specifications (PDF)


Recommended Accessories for Model: CognitiveTPG DLXi Barcode Label Printer
CognitiveTPG (189-9961425)
MEDIA GUIDE AND SPINDLE KIT FOR 4" DT BLASTER, ADVANTAGE AND DLXI, REPLACES 60-98-14-0003
In Stock: Ships Same Day
$17.50
+ Add to Quote
CognitiveTPG DLXi Accessories (TPG-K320)
US Power cord
$16.30
+ Add to Quote
CognitiveTPG Accessories (60-77-14-0076-01)
Wristband Tray (Supports 1 inch Wide Label Roll)
$26.10
+ Add to Quote
CognitiveTPG (189-9961428)
MEDIA GUIDE AND SPINDLE KIT FOR 2" TT BLASTER, ADVANTAGE AND DLXI
$17.30
+ Add to Quote
CognitiveTPG (189-9961427)
MEDIA GUIDE AND SPINDLE KIT FOR 2" DT BLASTER, ADVANTAGE AND DLXI, REPLACES 60-98-14-0002
$17.30
+ Add to Quote
Recommended Labels for Model: CognitiveTPG DLXi Barcode Label Printer
CognitiveTPG Label (03-02-1660)
4.25" x 6" Thermal transfer paper labels. 320 labels/roll, 12 roll case, for Blast, DelSol, Solus.
$304.60
+ Add to Quote
CognitiveTPG Label (03-02-1519-R)
2.3" x 1" Direct thermal paper label. 1,685 labels/roll, single roll. Also available as a 12 roll case. (Part# 03-02-1519).
In Stock: Ships Same Day
$21.40
+ Add to Quote
CognitiveTPG Labels (03-02-1519)
Cognitive, Consumables, Gap Sensored Paper Label, Direct thermal, 2.3" x 1", 1.5" Core, 4.25" outer diameter, Wound In, 1685 labels/roll, Perforated, 12 rolls/case.
In Stock: Ships Same Day

$164.00
+ Add to Quote
CognitiveTPG Label (03-02-1656-R)
2.3" x 1" Thermal transfer paper label. 1,685 labels/roll, 12 rolls/case Single roll. Also available as a case (Part# 03-02-1656).
In Stock: Ships Same Day
$19.80
+ Add to Quote
CognitiveTPG Label (03-02-1656)
2.3" x 1" Thermal transfer paper label. 1,685 labels/roll, 12 roll case.
In Stock: Ships Same Day

$140.60
+ Add to Quote
Recommended Ribbons for Model: CognitiveTPG DLXi Barcode Label Printer
Cognitive Blaster Advantage (04-00-0028-01)
Wax ribbon, 4.25" x 263', black, 12 rolls/case, 0.5" core size. Compatible with Desktop printers and Paper labels. Available as a single roll (04-00-0028-01-R).
In Stock: Ships Same Day
$151.00
+ Add to Quote
Cognitive Blaster Advantage (04-00-0031-01)
2.4" x 263' Black Wax Ribbon, Compatible with Desktop printers and Paper labels, rolls/case: 12, Core Size: 0.5", Available as a single roll (04-00-0031-01-R)
$101.20
+ Add to Quote
Cognitive Blaster Advantage (04-00-0028-04)
2.4" x 263' Black Wax Ribbon, Compatible with Desktop printers and Paper labels, rolls/case: 12, Core Size: 0.5", Available as a single roll (04-00-0028-04-R)
$101.20
+ Add to Quote
Cognitive Ribbon (04-00-0041-02)
4.25" x 458' Black Resin Ribbon, Compatible with Desktop printers and Polyester Labels, rolls/case: 12, Core Size: 0.5"
In Stock: Ships Same Day
$456.50
+ Add to Quote
Cognitive Ribbon (04-00-0043-01)
4.25" x 6500" Black Wax Ribbon. Compatible with C-Series Printers. 12 ribbon case. Used with paper labels. Custom order item
In Stock: Ships Same Day
$278.30
+ Add to Quote

The CognitiveTPG DBD42-2085-G2S is also known as Cognitive-TPG COG-DBD422085G2S or DBD422085G2S .
