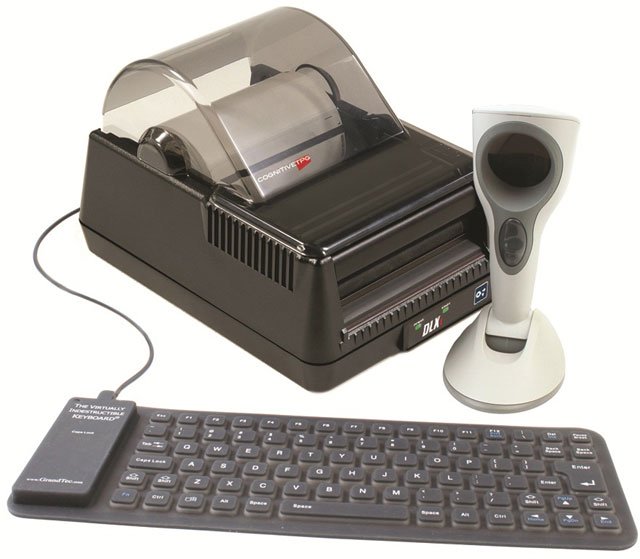

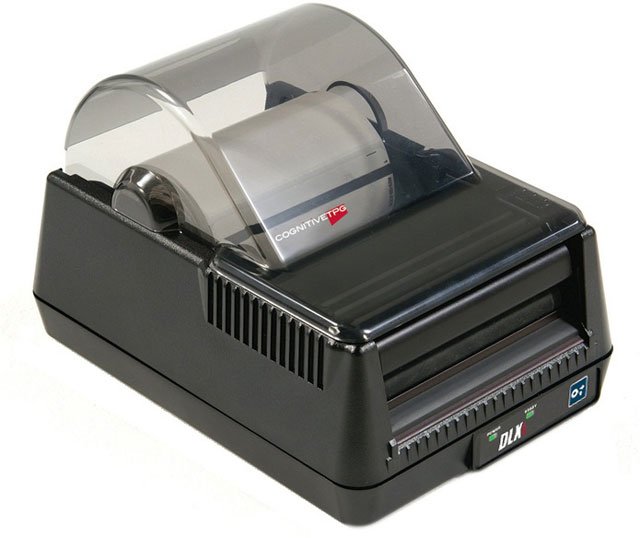

CognitiveTPG DBD42-2085-G1E Barcode Printer

Built to last designed to connect

Robust and rugged are the hallmarks of the Blaster and Advantage line of thermal label printers. CognitiveTPG is carrying on this tradition with the introduction of its latest desktop thermal label printer, the DLXi. The DLXi combines legendary reliability with the latest communication interfaces and performance. The DLXi is designed to operate in challenging environments while providing seamless migration from legacy installations and maximum exibility.

Technical Information

Maximum Mono Print Speed: 5 in/s
Peel Facility: Yes
Maximum Print Resolution: 203 dpi
Print Color: Monochrome
Maximum Print Width: 2.20"
Recommended Use: Label Print
Features: Peel Facility
Barcode Symbology Supported:
- Add2
- Add5
- Codabar
- Code 39
- Code 93
- Code 128-A
- Code 128-B
- Code 128-C
- D2 of 5
- I-2/5
- S2 of 5
- EAN-8
- EAN-8+
- EAN-13
- EAN-13+
- EAN 128
- Maxi Code
- MSI1
- MSI
- Plessey
- POSTNET
- UPC-A
- UPC-A+
- UCP-E
- UPC-E1
- Data Matrix
- Aztec Code
- QR Code
- RSS
- PDF-417

General Information

Product Type: Direct Thermal Printer
Brand Name: CognitiveTPG
Manufacturer: Cognitive TPG
Product Model: DLXi
Product Name: DLXi Label Printer

Physical Characteristics

Height: 6.1"
Width: 4.7"
Depth: 9.4"
Form Factor: Desktop
Weight (Approximate): 3.10 lb

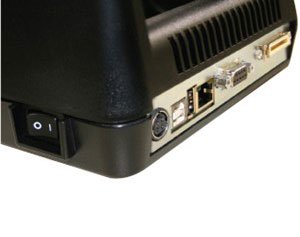

Interfaces/Ports

USB: Yes
Serial Port: Yes
Parallel Port: Yes

Other

Platform Supported: PC
Package Contents:
- DLXi Label Printer
- Quick Start Guide
- USB Cable
- Power Supply
- Power Cord
- Special Serial Cable
- DLXi Label Printer
- Quick Start Guide
- USB Cable
- Power Supply
- Power Cord
- Special Serial Cable

Media Types & Handling

Maximum Label Width: 2.40"
Media Type:
- Black Bar
- Notch
- Gap
Maximum Roll Diameter: 4.70"

Fonts & Emulation

Language Emulation:
- CPL
- ZcPL
- EcPL

Memory

Standard Memory: 16 MB
Memory Technology: SDRAM
Flash Memory: 8 MB

Network & Communication

Ethernet: Yes
Ethernet Technology: Fast Ethernet

Power Description

Input Voltage: 24 V DC
Power Source: Power Adapter

Warranty

Limited Warranty: 2 Year

Full specifications (PDF)

See all CognitiveTPG DLXi options »

Brand	CognitiveTPG
Model	DLXi
Print Speed	5
Interface Options	Parallel, USB, Ethernet, Serial
Print Resolution	203 dpi
Label Core	1.5 inches
Max Label Width	4.25
Print Method	Direct Thermal
Max Roll Outer Diameter	4.7
Maximum Print Width	4.10
Printer Type	Desktop
