CognitiveTPG DLXi – Barcode Label Printer – 203 dpi

Part Number: DBD24-2085-G2S

Model: DLXi

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

Print Resolution

203 dpi

Product Description:

CognitiveTPG DLXi DBD24-2085-G2S Direct Thermal Printer - Monochrome - Desktop - Label Print - USB - Serial - 2.20" Print Width - 5 in/s Mono - 203 dpi - Black Bar, Gap, Notch - 2.40" Label Width

Explore all CognitiveTPG DLXi Barcode Label Printers

Add to Quote

CognitiveTPG DBD24-2085-G2S Barcode Label Printer

Overview

Full specifications (PDF)

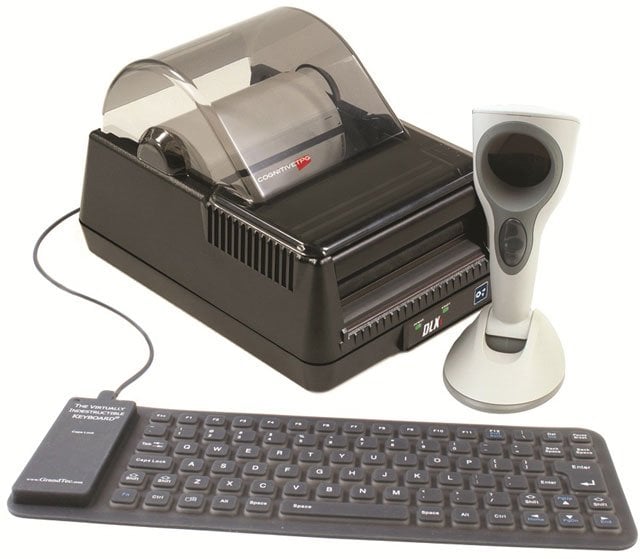

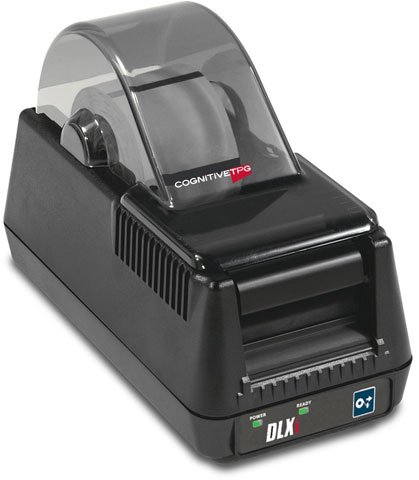

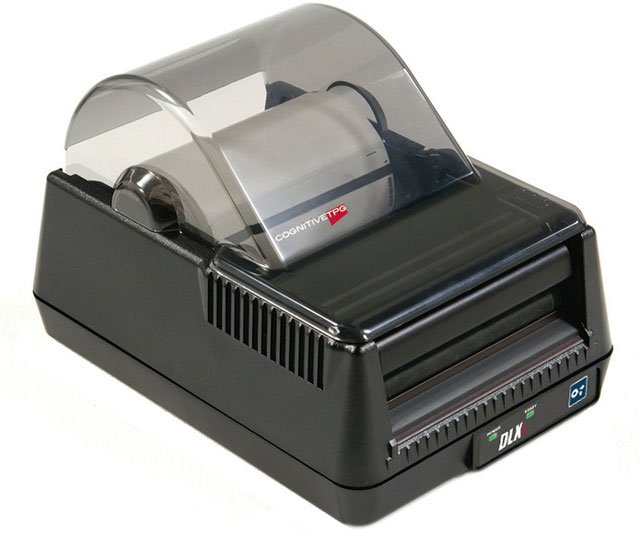

CognitiveTPG DLXi Barcode Label Printer Model Overview

Robust and rugged are the hallmarks of the Blaster and Advantage line of thermal label printers. CognitiveTPG is carrying on this tradition with the introduction of its latest desktop thermal label printer, the DLXi. The DLXi combines legendary reliability with the latest communication interfaces and performance. The DLXi is designed to operate in challenging environments while providing seamless migration from legacy installations and maximum exibility.

CognitiveTPG DBD24-2085-G2S Barcode Label Printer Overview

Built to last...designed to connect.

Robust and rugged are the hallmarks of the Blaster and Advantage LX thermal label printers. CognitiveTPG is carrying on this tradition with the introduction of its latest desktop thermal label printer, the DLXi. The DLXi combines legendary reliability with the latest communication interfaces and performance. The DLXi is designed to operate in challenging environments while providing a seamless migration to the latest technology and performance.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

5 in/s

Maximum Print Resolution:

203 dpi

Maximum Print Width:

2.20"

Barcode Symbology Supported:

Add2
Add5
Code 39
Code 93
Codabar
Code 128-A
Code 128-B
Code 128-C
D2 of 5
I-2/5
S2 of 5
EAN-8
EAN-8+
EAN-13
EAN-13+
EAN 128
Maxi Code
MSI
MSI1
PDF-417
Plessey
POSTNET
UPC-A
UPC-A+
UPC-E
UPC-E1
Data Matrix
Aztec Code
QR Code
RSS
EAN/JAN-13
EAN/JAN-8
Interleaved 2 of 5

Application/Usage:

Desktop

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

8 MB

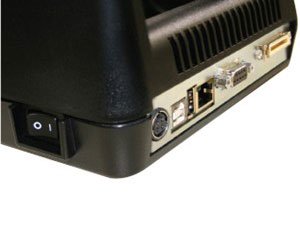

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Media Types & Handling

Media Type:

Black Bar
Gap
Notch

Maximum Roll Diameter:

4.70"

Maximum Label Width:

2.40"

Fonts & Emulation

Language Emulation:

CPL
EcPL
ZcPL

Power Description

Power Source:

Power Adapter

Physical Characteristics

Height:

6.1"

Width:

4.7"

Depth:

9.4"

Weight (Approximate):

3.10 lb

Miscellaneous

Platform Supported:

Item Numbers

GTIN: 4056572363063, 5054533532182, 5712505225196

EAN: 4056572363063, 5054533532182, 5712505225196

UNSPSC: 45101512
