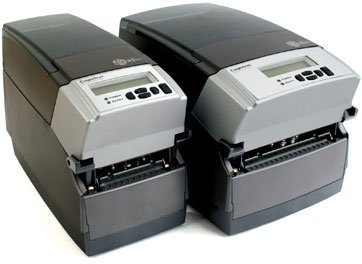

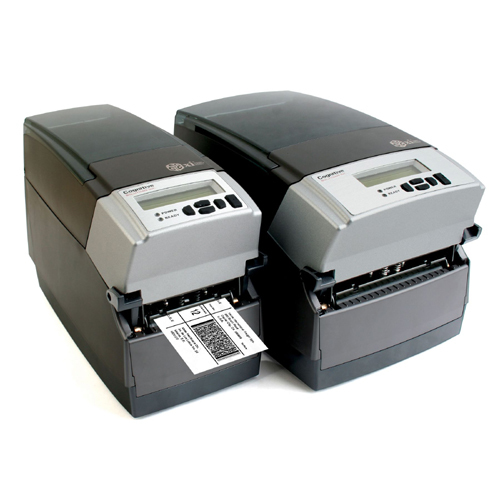

CognitiveTPG CXT4-1000 Barcode Label Printer

CognitiveTPG Cxi - Industrial Label Printer, CognitiveTPG Cxi, Thermal transfer, 203 dpi, 8 ips print speed, 4" print width, 2-line LCD display, Real-time clock, Serial/Parallel/Ethernet/USB interfaces, 16MB DRAM, 8MB Flash, Includes US power supply, US Cord and USB Cable.
$665.00
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
The Cxi delivers exceptional value with a small footprint, competitive price and full connectivity.

The CognitiveTPG Cxi is a rugged and reliable all-metal printer mechanism that prints continuously featuring a die-cast metal user interface to withstand harsh environments. The Cxi uses menu driven LCD controls for easy set up without a computer. The Cxi offers a full communication suite, including internal Ethernet, serial/parallel and USB ports. Also, the Cxi has a Fast 32 bit 200 MIPS Processor for fast throughput and incredible first-label-out speeds.

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Features: LCD Display
  • Barcode Symbology Supported:
    • UPC-A
    • EAN-8
    • Code 128-C
    • UPC-E
    • EAN-13
    • Code 128
    • UPC-E1
    • Code 39
    • Plessey
    • EAN 128
    • POSTNET
    • Code 128-A
    • Codabar
    • Code 93
    • Code 128-B
    • MSI
    • UPC-A+
    • MSI1
    • S2 of 5
    • D2 of 5
    • Maxi Code
    • PDF-417
    • Data Matrix
    • QR Code
    • Aztec Code
    • RSS-14

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: CognitiveTPG
  • Manufacturer: Cognitive TPG
  • Product Model: Cxi
  • Product Name: CXI Thermal Label Printer

Physical Characteristics

  • Height: 7.1"
  • Width: 6.9"
  • Depth: 10.5"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Platform Supported: PC
  • Certifications & Standards:
    • UL
    • FCC Class A
    • CSA GS/TUV/VDE
    • CCC
    • CE
    • WEEE
    • RoHS
  • Additional Information:
    • LCD Display
    • Best performance-to-size ratio
    • Real time clock standard on every printer
    • Large roll capacity for high-volume applications

Media Types & Handling

  • Maximum Label Width: 4.68"
  • Maximum Label Length: 0.38"
  • Media Type:
    • Tag
    • Fanfold
    • Receipt
    • Continuous Form
    • Black Bar
    • Black Mark
    • Notched
  • Media Thickness: 10 mil
  • Media Sensor: Reflective Media Sensor
  • Label Core Size: 1.50"
  • Maximum Roll Diameter: 7.63"

Fonts & Emulation

  • Language Emulation:
    • CPL
    • CePL

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Memory

  • Standard Memory: 32 MB
  • Flash Memory: 6 MB

Warranty

  • Limited Warranty: 2 Year

Full specifications (PDF)

Full specifications (PDF)

Brand CognitiveTPG
Model Cxi
Print Method Thermal Transfer
Interface Options Parallel, Serial, USB
Print Speed 8
Print Resolution 203 dpi
Max Roll Outer Diameter 8
Maximum Print Width 4.15, 4.10
Label Core 3 inches
Printer Type Industrial
Max Label Width 4.63
Printer Mobility Not Mobile
