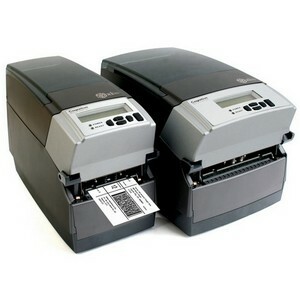

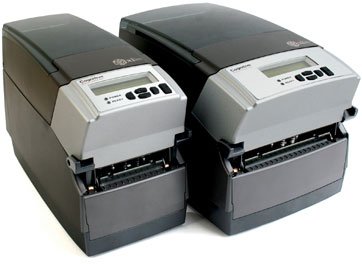

CognitiveTPG CXD4-1000 Barcode Printer

CognitiveTPG Cxi - Direct thermal, 203 dpi, 8 ips, 4" width, serial, parallel, and USB interfaces, 16MB DRAM, 8MB Flash. Includes US power supply. Cables not included. See accessories.
$725.10
Ships in 3-5 Days
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
The Cxi delivers exceptional value with a small footprint, competitive price and full connectivity.

The CognitiveTPG Cxi is a rugged and reliable all-metal printer mechanism that prints continuously featuring a die-cast metal user interface to withstand harsh environments. The Cxi uses menu driven LCD controls for easy set up without a computer. The Cxi offers a full communication suite, including internal Ethernet, serial/parallel and USB ports. Also, the Cxi has a Fast 32 bit 200 MIPS Processor for fast throughput and incredible first-label-out speeds.

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 203 dpi
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Features: LCD Display
  • Barcode Symbology Supported:
    • UPC-E
    • UPC-E1
    • POSTNET
    • PDF-417
    • UPC-A+
    • Maxi Code
    • Code 2 of 5
    • Code 39
    • Industrial 2 of 5
    • Code 93
    • MSI1
    • EAN-8
    • EAN-13
    • Plessey
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • S2 of 5
    • Code 128
    • EAN 128
    • Codabar
    • MSI
    • D2 of 5

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: CognitiveTPG
  • Manufacturer: Cognitive TPG
  • Product Model: Cxi
  • Product Name: CXI Thermal Label Printer

Physical Characteristics

  • Height: 7.1"
  • Width: 6.9"
  • Depth: 10.5"

Media Types & Handling

  • Maximum Label Width: 4.68"
  • Media Type:
    • Label
    • Die-cut Label
    • Black Bar
    • Notched
    • Pre-punched Paper
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Maximum Roll Diameter: 7.63"

Other

  • Platform Supported: PC
  • Package Contents:
    • Cxi Label Printer
    • Software CD
    • Cxi Label Printer
    • Software CD
  • Additional Information:
    • Best performance-to-size ratio
    • Real time clock standard on every printer
    • Large roll capacity for high-volume applications

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Warranty

  • Limited Warranty: 2 Year

Full specifications (PDF)

Full specifications (PDF)

Brand CognitiveTPG
Model Cxi
Max Roll Outer Diameter 8
Maximum Print Width 4.15
Interface Options Serial, USB, Parallel
Print Speed 8
Print Resolution 203 dpi
Print Method Direct Thermal
Printer Type Industrial
Max Label Width 4.63
Label Core 3 inches
Printer Mobility Not Mobile
