CognitiveTPG CXD2-1000 Barcode Label Printer

CognitiveTPG Cxi - Cognitive CXI Thermal Label Printer - Monochrome - 8 in/s Mono - 203 dpi - USB, Parallel, Serial - Ethernet

Printer Type

Industrial

Printing Technology

Direct Thermal

Interface Options

Parallel, Serial (RS-232), USB

Print Resolution

203 dpi

Max Print Width

2.75 inch

Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
203 maximum print resolution (dpi) offers great dependability with added efficiency
Produce high-quality documents with this monochrome printer to increase your productivity
Delivers high-speed, hassle-free labeling solution for your business needs
2.84" maximum label width for your convenience and feasible usability
0.38" maximum label length to easily accommodate your needs with added productivity
Supports tag media type for dependable, efficient results with maximum productivity
LCD Display feature for better reliance and usability
Comes with 32 MB standard memory to make you productive with the direct thermal/thermal transfer printer?s smooth performance

Need a different version? See all CognitiveTPG Cxi Barcode Label Printers

$700.25

Recommended TrueSupport Coverage (/mo.)

Quantity	Unit Price	Discount
2	$693.25	1% OFF
5	$679.24	3% OFF

Add to Quote

CognitiveTPG CXD2-1000 Barcode Label Printer

Overview

Full specifications (PDF)

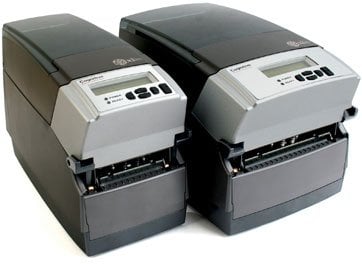

CognitiveTPG Cxi Barcode Label Printer Model Overview

The CognitiveTPG Cxi is a rugged and reliable all-metal printer mechanism that prints continuously featuring a die-cast metal user interface to withstand harsh environments. The Cxi uses menu driven LCD controls for easy set up without a computer. The Cxi offers a full communication suite, including internal Ethernet, serial/parallel and USB ports. Also, the Cxi has a Fast 32 bit 200 MIPS Processor for fast throughput and incredible first-label-out speeds.

CognitiveTPG CXD2-1000 Barcode Label Printer Overview

Cognitive's Cxi printer is the next generation of high-performance thermal label printers, bridging the gap between mid-range and desktop models. Cxi printer deliver exceptional value as high-performance printers with small footprints, competitively priced and with full connectivity availability.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

8 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

2.20"

Barcode Symbology Supported:

UPC-A
EAN-8
Code 128-C
UPC-E
EAN-13
Code 128
UPC-E1
Code 39
Plessey
EAN 128
POSTNET
Code 128-A
Codabar
Code 93
Code 128-B
MSI
UPC-A+
MSI1
S2 of 5
D2 of 5
Maxi Code
PDF-417
Data Matrix
QR Code
Aztec Code
RSS-14

Features:

LCD Display

Memory

Standard Memory:

32 MB

Flash Memory:

6 MB

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Ethernet

Media Types & Handling

Media Type:

Tag
Fanfold
Receipt
Continuous Form
Black Bar
Black Mark
Notched

Media Sensor:

Reflective Media Sensor

Media Thickness:

10 mil

Maximum Roll Diameter:

7.63"

Maximum Label Width:

2.84"

Maximum Label Length:

0.38"

Label Core Size:

1.50"

Fonts & Emulation

Language Emulation:

CPL
CePL

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

7.1"

Width:

Depth:

10.5"

Miscellaneous

Additional Information:

LCD Display
Best performance-to-size ratio
Real time clock standard on every printer
Large roll capacity for high-volume applications

Platform Supported:

Certifications & Standards:

UL
FCC Class A
CSA GS/TUV/VDE
CCC
CE
WEEE
RoHS

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0012302497945, 0088064682653, 0645015443703

UPC: 012302497945, 088064682653, 645015443703

EAN: 0012302497945, 0088064682653, 0645015443703

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The CognitiveTPG CXD2-1000 Barcode Label Printer is also known as COG-CXD2 or CXD21000.
