Cisco CISCO2801-SEC/K9
Cisco CISCO2801-SEC/K9

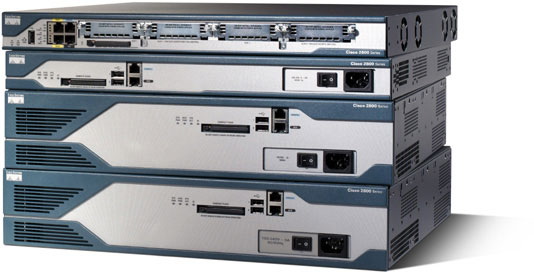

Cisco 2800 Series -
2801 Security Bundle (ADV SEC 64F/256D)
A modular platform with a broad range of interface options
The award-winning Cisco 2800 Series routers, ideal for small to medium-sized businesses and enterprise branch offices, are designed for wire-speed delivery of highly secure concurrent services and can accommodate multiple T1/E1 connections for services including data, security, voice, video and wireless. The integrated services routing architecture of the Cisco 2800 Series provides the performance, availability, and reliability needed to scale mission-critical business applications in the most demanding environments.
General Information
- Product Type: Router
- Product Series: 2800
- Brand Name: Cisco
- Manufacturer: Cisco Systems, Inc
- Product Model: 2801
- Product Name: 2801 Router with Security Bundle
Physical Characteristics
- Compatible Rack Unit: 1U
- Height: 1.7"
- Width: 17.5"
- Depth: 16.5"
- Form Factor:
- Rack-mountable
- Desktop
Interfaces/Ports
- Number of Network (RJ-45) Ports: 2
- Total Number of Ports: 2
- USB: Yes
- Management Port: Yes
Other
- Package Contents:
- 2801 Router
- Cisco 2801 IOS ADVANCED SECURITY
- Device manager for routers (ROUTER-SDM)
- 128 to 256MB SODIMM DRAM factory upgrade for the Cisco 2801 (MEM2801-128U256D)
- 64MB CF default for Cisco 2800 Series (MEM2800-64CF-INC)
- Blank WAN Interface Card Panel (WIC-BLANK-PANEL)
- Cisco 2801 AC power supply (PWR-2801-AC)
- Power Cord
- One blue RJ-45-to-DB-9 console cable
- One DB-9-to-DB-25 modem adapter
- 19-inch (48.26-cm) rack-mount brackets with bracket screws
- Cable management bracket with one mounting screw
- Rubber chassis feet for desktop application
- Cisco product registration card
- Cisco 2800 Series and Cisco 3800 Series Regulatory Compliance and Safety Information document
- Cisco Router and Security Device Manager (SDM) Quick Start Guide document
- Cisco 2800 Series Integrated Services Routers Quick Start Guide
- 2801 Router
- Cisco 2801 IOS ADVANCED SECURITY
- Device manager for routers (ROUTER-SDM)
- 128 to 256MB SODIMM DRAM factory upgrade for the Cisco 2801 (MEM2801-128U256D)
- 64MB CF default for Cisco 2800 Series (MEM2800-64CF-INC)
- Blank WAN Interface Card Panel (WIC-BLANK-PANEL)
- Cisco 2801 AC power supply (PWR-2801-AC)
- Power Cord
- One blue RJ-45-to-DB-9 console cable
- One DB-9-to-DB-25 modem adapter
- 19-inch (48.26-cm) rack-mount brackets with bracket screws
- Cable management bracket with one mounting screw
- Rubber chassis feet for desktop application
- Cisco product registration card
- Cisco 2800 Series and Cisco 3800 Series Regulatory Compliance and Safety Information document
- Cisco Router and Security Device Manager (SDM) Quick Start Guide document
- Cisco 2800 Series Integrated Services Routers Quick Start Guide
- Certifications & Standards:
- IEEE 802.3: 10BASE-T
- IEEE 802.3u: 100BASE-TX
- IEEE 802.1x: Authentication
- USB 1.1
- Safety:
- UL 60950
- CAN/CSA C22.2 No. 60950
- IEC 60950
- EN 60950-1
- AS/NZS 60950
- Immunity:
- EN300386
- EN55024/CISPR24
- EN50082-1
- EN61000-6-2
- EMC:
- FCC Part 15
- ICES-003 Class A
- EN55022 Class A
- CISPR22 Class A
- AS/NZS 3548 Class A
- VCCI Class A
- EN 300386
- EN61000-3-3
- EN61000-3-2
- TELCOM:
- Interfaces comply with FCC Part 68, CS-03, JATE Technical Conditions, European Directive 99/5/EC and relevant TBR's
- Additional Information:
- Interface Card Slots:
- 2 slots support HWIC, WIC, VIC, or VWIC type modules
- 1 slot supports WIC, VIC, or VWIC type modules
- 1 slot supports VIC or VWIC type modules
- Operation Altitude (derate 1.5°C per 1000 ft):
- 25°C @ 3 km/10 kft
- 40°C @ sea level
Management & Protocols
- Security Features:
- AIM-based security acceleration
- Secure Shell (SSH)
- Easy VPN Client and Server
- VPN Hardware Acceleration (on motherboard):
- DES, 3DES, AES 128, AES 192, and AES 256
- Threat Defense:
- Cisco IOS Firewall
- Transparent Firewall
- URL Filtering
- Trust and Identity:
- Network Admission Control (NAC)
- Authentication, Authorization, and Accounting (AAA)
- 802.1x Support
Memory
- Flash Memory: 64 MB
- Standard Memory: 128 MB
- Memory Technology: DRAM
- Maximum Memory: 384 MB
I/O Expansions
- Number of Total Expansion Slots: 8
- Expansion Slot Type:
- AIM
- PVDM
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Network & Communication
- Ethernet Technology: Fast Ethernet
- Network Technology: 10/100Base-TX
Warranty
- Limited Warranty: 90 Day
Full specifications (PDF)| Brand | Cisco |
| Model | 2800 Series |
The Cisco CISCO2801-SEC/K9 is also known as CSC-CISCO2801SECK9 or CISCO2801SECK9 .
