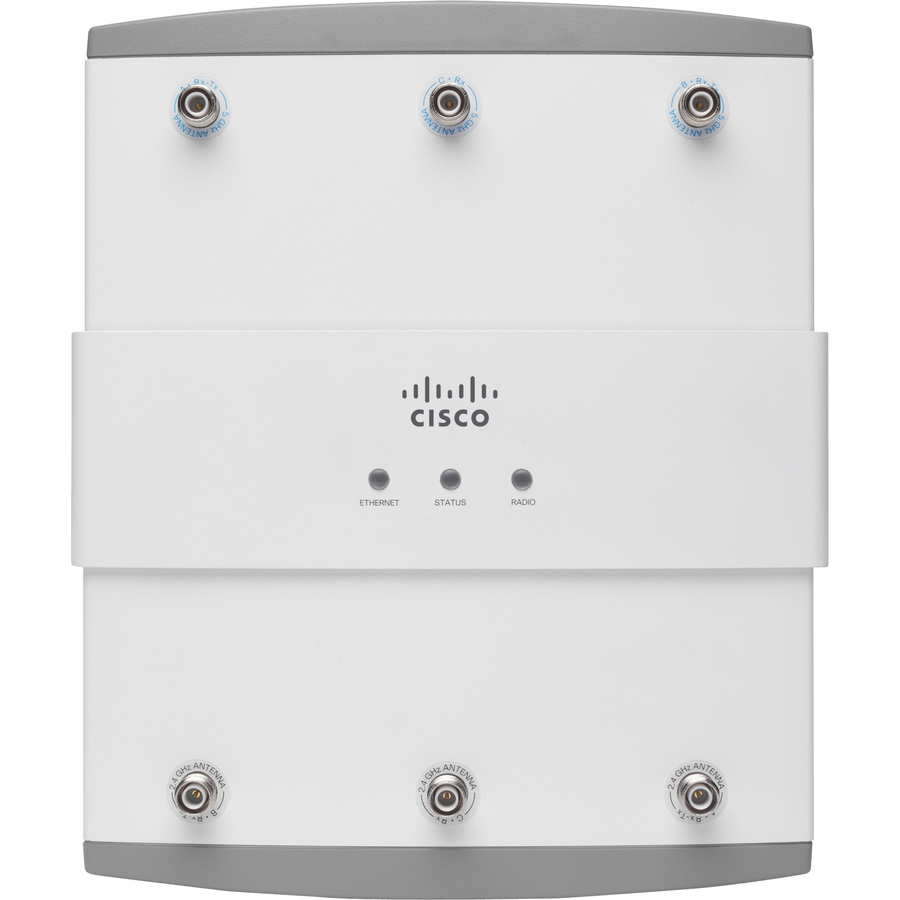

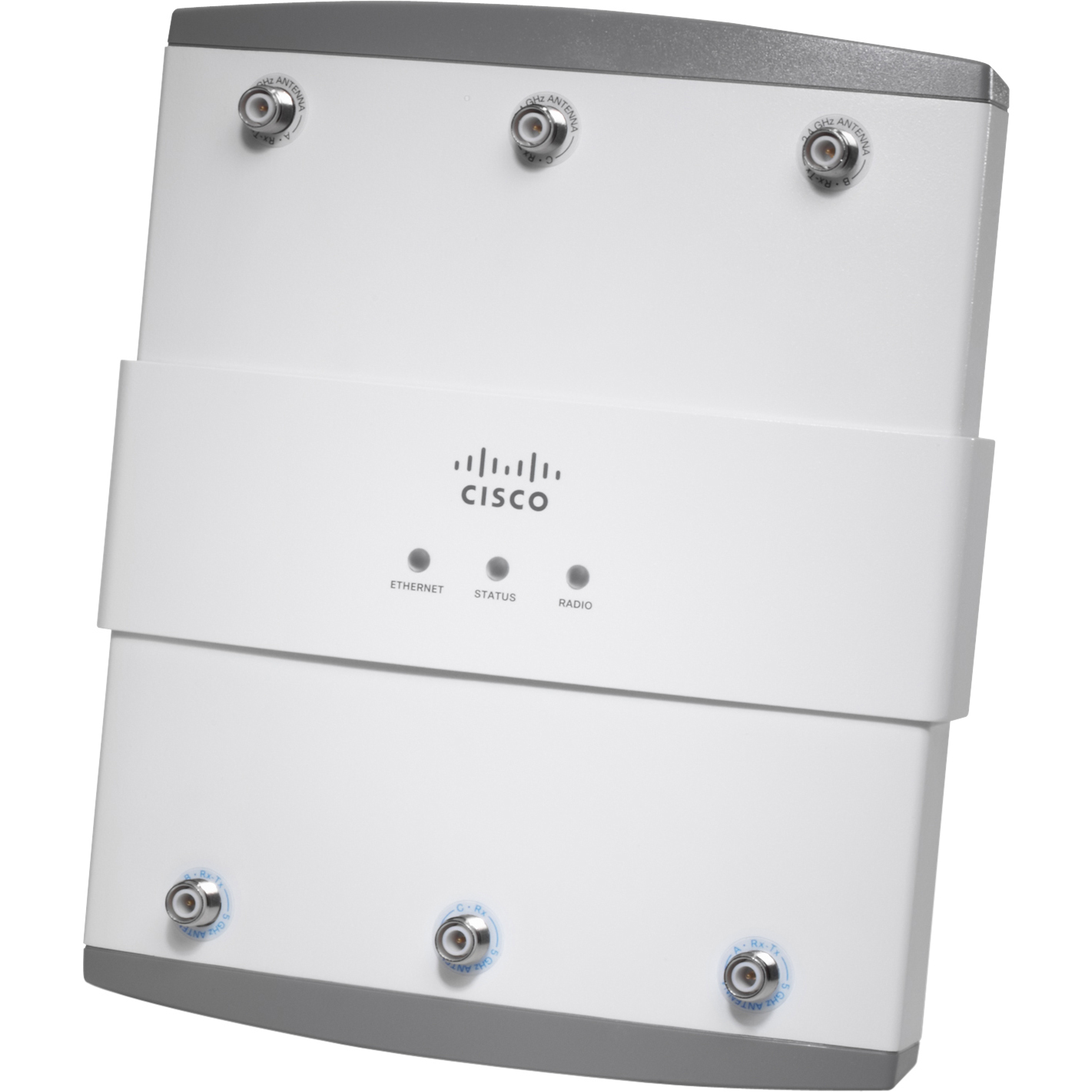

Cisco AIR-AP1252G-A-K9 Wireless Access Points

Part Number: AIR-AP1252G-A-K9

Model: Aironet 1250 Series

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Wireless LAN Standard

IEEE 802.11n

ISM Band

Yes

UNII Band

Yes

ISM Minimum Frequency

2.41 GHz

Product Description:

Cisco Aironet 1252G-A Wireless Access Point - 300Mbps - 1 x

Explore all Cisco Aironet 1250 Series Access Points

Add to Quote

Cisco AIR-AP1252G-A-K9 Wireless Access Points

Overview

Full specifications (PDF)

Cisco Aironet 1250 Series Access Point Model Overview

Cisco Aironet 1250 Series wireless access points are the first business-class access points to be Wi-Fi 802.11n draft 2.0 certified. These modular wireless access points provide reliable and predictable WLAN coverage to improve the end user's experience with both existing 802.11a/b/g clients and new 802.11n clients. With the Aironet 1250 Series wireless access points you can augment throughput for high-bandwidth wireless applications, protect your investment in wireless networking, and increase network reliability for mission-critical applications.

Cisco AIR-AP1252G-A-K9 Wireless Access Points Overview

The Cisco Aironet 1252G-A is the first enterprise-class access point to support the IEEE 802.11n draft 2.0 standard. 802.11n offers combined data rates of up to 600 Mbps to provide users with mobile access to high-bandwidth data, voice, and video applications regardless of their location. Through the use of multiple-input multiple-output (MIMO) technology, 802.11n also provides reliable and predictable WLAN coverage to improve the end-user experience for both existing 802.11b/g clients and new 802.11n clients.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11n

ISM Band:

Yes

UNII Band:

Yes

ISM Minimum Frequency:

2.41 GHz

ISM Maximum Frequency:

2.46 GHz

Total Number of Antennas:

Antenna Connector:

RP-TNC Connector

Wireless Transmission Speed:

300 Mbit/s

Wireless Security:

Wi-Fi Protected Access (WPA)
WPA2

Interfaces/Ports

Ethernet Technology:

Gigabit Ethernet

Number of Network (RJ-45) Ports:

Management Port:

Yes

Management & Protocols

Management:

Radio Resource Management (RRM)
MIMO
Superior DFS support
SDR certification
Spectrum intelligence integration into WCS

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

2.4"

Depth:

9.5"

Miscellaneous

Additional Information:

Support Cisco IOS Software Release 12.4(10b)JA or later (Autonomous Mode)

Certifications & Standards:

UL 60950-1
CAN/CSA-C22.2 No. 60950-1
UL 2043
IEC 60950-1
EN 60950-1
FCC Part 15.247, 15.407
RSS-210 (Canada)
EN 300.328, EN 301.893 (Europe)
ARIB-STD 33 (Japan)
ARIB-STD 66 (Japan)
ARIB-STD T71 (Japan)
AS/NZS 4268.2003 (Australia and New Zealand)
EMI and susceptibility (Class B)
FCC Part 15.107 and 15.109
ICES-003 (Canada)
VCCI (Japan)
EN 301.489-1 and -17 (Europe)
EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
802.11i, WPA2, WPA
802.1X
AES, TKIP
FCC Bulletin OET-65C
RSS-102
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n draft 2.0
IEEE 802.11h
IEEE 802.11d
WPA: Enterprise, Personal
WPA2: Enterprise, Personal
EAP-Transport Layer Security (TLS)
EAP-Tunneled TLS(TTLS)/Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
Protected EAP (PEAP)v0/EAP-MSCHAPv2
PEAPv1/EAP-Generic Token Card (GTC)
EAP-SIM
WMM
