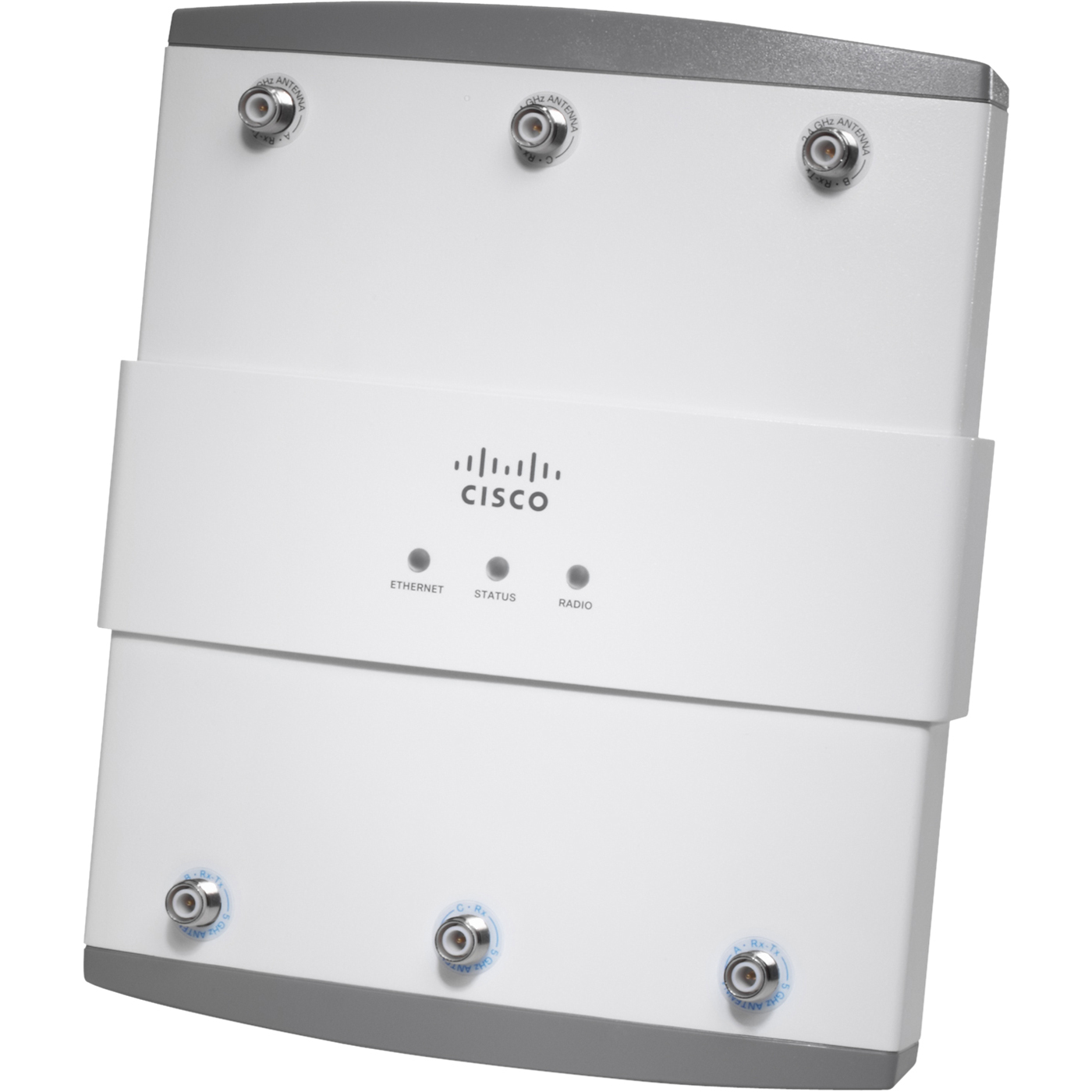

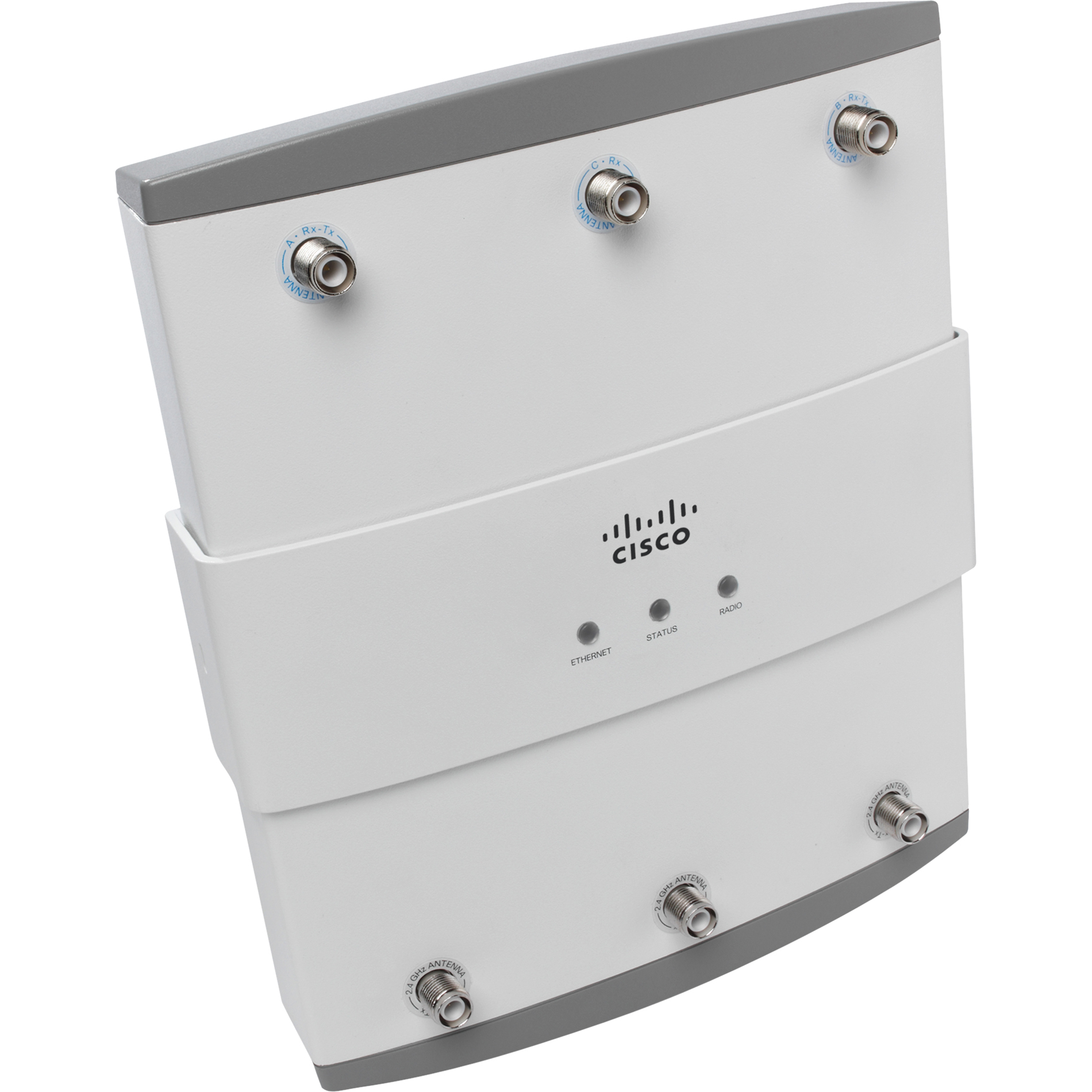

Cisco AIR-AP1252AG-N-K9 Access Point

The Cisco AIR-AP1252AG-N-K9 Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Cisco Aironet 1250 Series - Cisco Aironet 1252 Wireless Access Point - 600Mbps

Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
With IEEE 802.11n network technology and data transfer rate of up to 600 Mbit/s, enjoy superior HD media playback and lag-free gaming
Up to 10x faster than standard Ethernet connectivity for your wired network

Need a different version? See all Cisco Aironet 1250 Series Access Points

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Cisco Aironet 1250 Series Access Point Model Overview

Cisco Aironet 1250 Series wireless access points are the first business-class access points to be Wi-Fi 802.11n draft 2.0 certified. These modular wireless access points provide reliable and predictable WLAN coverage to improve the end user's experience with both existing 802.11a/b/g clients and new 802.11n clients. With the Aironet 1250 Series wireless access points you can augment throughput for high-bandwidth wireless applications, protect your investment in wireless networking, and increase network reliability for mission-critical applications.

Cisco AIR-AP1252AG-N-K9 Access Point Overview

The Cisco Aironet 1252 Wireless Access Point is the first enterprise-class access point to support the IEEE 802.11n draft 2.0 standard. 802.11n offers combined data rates of up to 600 Mbps to provide users with mobile access to high-bandwidth data, voice, and video applications regardless of their location.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11n

ISM Band:

Yes

UNII Band:

Yes

ISM Minimum Frequency:

2.41 GHz

ISM Maximum Frequency:

2.46 GHz

UNII Minimum Frequency:

5.15 GHz

UNII Maximum Frequency:

5.83 GHz

Total Number of Antennas:

Antenna Connector:

RP-TNC Connector

Wireless Transmission Speed:

600 Mbit/s

Wireless Security:

WPA (Enterprise, Personal)
WPA2 (Enterprise, Personal)

Interfaces/Ports

Ethernet Technology:

Gigabit Ethernet

Number of Network (RJ-45) Ports:

Management Port:

Yes

Management & Protocols

Management:

CLI
Browser based management
DHCP
SNMP

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Form Factor:

Ceiling Mountable
Wall Mountable

Height:

8.1"

Depth:

2.4"

Weight (Approximate):

5.10 lb

Miscellaneous

Package Contents:

Aironet 1252 Wireless Access Point
Power Supply Not Shipped (AIR-NO-PWR-SUPPLY)
Cisco 1250 Series IOS Wireless LAN (S125W7K9-12410JA)

Additional Information:

Non-FCC configuration

Certifications & Standards:

Safety:

UL 60950-1
CAN/CSA-C22.2 No. 60950-1
UL 2043
IEC 60950-1
EN 60950-1

Radio approvals:

FCC Part 15.247, 15.407
RSS-210
EN 300.328, EN 301.893
ARIB-STD 33
ARIB-STD 66
ARIB-STD T71
AS/NZS 4268.2003
EMI and susceptibility (Class B)
FCC Part 15.107 and 15.109
ICES-003
VCCI
EN 301.489-1 and -17
EN 60601-1-2

IEEE Standard:

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (draft 2.0)
IEEE 802.11h
IEEE 802.11d

Other:

FCC Bulletin OET-65C
RSS-102
Wi-Fi

Warranty

Limited Warranty:

90 Day

Item Numbers

GTIN: 0882658140785

UPC: 882658140785

EAN: 0882658140785

UNSPSC: 43222631
