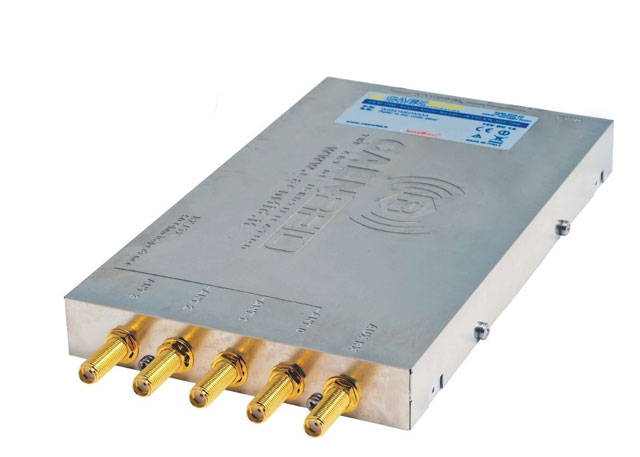

CAEN RFID Tau A941M RFID Reader

CAEN RFID Tau A941M  -  The Tau, OEM reader of the easy2read Family, is an UHF multi protocol module for long range applications. With programmable output power in 256 steps from 17dBm to 32dBm, the reader can detect tags up to 10m of distance. The A941M is ideal for customers who want to design their own RFID solution and require a long range RFID reader engine featuring up to 4 antennas.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Starting at:
$2,143.08
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

CAEN RFID Tau A941M RFID Reader
CAEN RFID Tau A941M RFID Reader
Accessories For CAEN RFID Tau A941M RFID Reader

CAEN RFID Tau A941M RFID Reader Options

Full specifications (PDF)

CAEN RFID Tau A941M RFID Reader Model Overview

The Tau A941M embedded UHF RFID reader is engineered for long-range applications, making it a perfect choice for vehicle access control systems, industrial control, and RFID tunnels. With programmable output power up to 32 dBm and up to four external antenna connectors, this OEM reader provides exceptional versatility and performance. Its compact design allows for easy integration into various infrastructures, delivering reliable data management and enhancing operational efficiency wherever RFID solutions are required.
Key Features
  • ETSI EN 302 208 Compliant
  • EPC C1 G2, ISO 18000-6C Compliant
  • Programmable output power up to 1.5W (32dBm)
  • Up to 4 External Antenna Connectors
  • Supports long-range tag detection up to 10m

Specifications
  • Frequency Range: 865.6÷867.6 MHz (ETSI EN 302 208)
  • RF Power: SW programmable Max.: 1.5 W (32 dBm) conducted
  • Antenna Connector: 5 SMA type female (4 read points + 1 LBT)
  • Frequency Tolerance: ±10 ppm over the entire temp. range
  • Channels: 4 channels compliant to ETSI EN 302 208
  • Compliance: ISO 18000-6B, Philips UCODE EPC 1.19, EPC C1G2
  • Digital I/O: Five I/O lines 3.3 V out, 5 V tolerant
  • Connectivity: RS232 (9.6÷115 kbit/s data rate)
  • Dimensions: (W)187 x (L)101 x (H)18 mm³ (7.4 x 4.0 x 0.7 inch³)
  • Power Consumption: - 1 A @ 15 V (TX/RX mode); - 260 mA @ 15 V (idle mode)
  • DC Power: 15±5% VDC
  • Operating Temp: -20 °C to 70°C
  • Weight: 330 g
