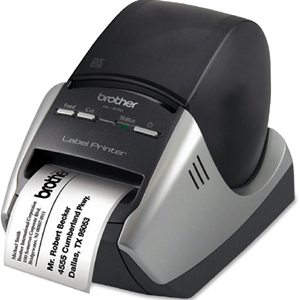

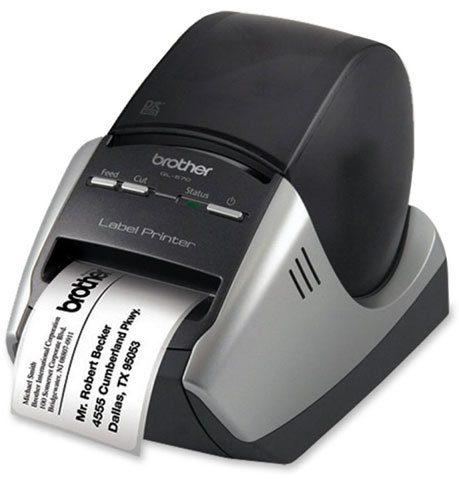

Brother QL-570VM – Barcode Label Printer

Part Number: QL-570VM

Model: QL-570VM

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Recommended Use

Label Print

Print Color Capability

Monochrome

Maximum Mono Print Speed

1.1 lps

Maximum Print Resolution

300 x 600 dpi

Product Description:

Brother QL-570VM Direct Thermal Printer - Monochrome - Beige - Label Print - USB - 2.30" Print Width - 1.1 lps Mono - 300 x 600 dpi - Label, Address Label, File Folder Label, CD/DVD Label, Shipping Label, Paper Tape - 2.40" Label Width - 36" Label Length

Explore all Brother QL-570VM Barcode Label Printers

Add to Quote

Overview

Full specifications (PDF)

Brother QL-570VM Barcode Label Printer Model Overview

The Brother QL-570VM Visitor Badge & Management Kit is a complete badge solution that puts timely visitor log in, professional badge creation and efficient report generation within the reach of practically any organization when used with a PC. If you are still using a paper log to track visitors, and need a better way to manage your entry or exit data, this could be the right solution for you. In addition to printing visitor badges, the Brother QL-570VM can also print a wide variety of other pre sized, self adhesive labels and tapes. Make a great first impression while also keeping track of visitors to your office, school or seminar.

Brother QL-570VM Barcode Label Printer Overview

Visitor Badge and Management Kit is a complete badge solution that offers timely visitor log-in, professional badge creation, and efficient report generation when used with a PC. Software provides templates to create and print badges as well as the database program to recall, store and query visitor records. The included P-touch Editor software extends the design capabilities so you can import logos and other graphics for customized badges. Two check-in modes include reception mode for assisted check-in and self check-in mode that is ideal for trade shows and events. Label printer has a USB interface, three-color LED, resolution of 300 x 600 dpi, 2-2/5" maximum tape width and 2-3/10" maximum print width. Visitor management system can be used with a web camera (sold separately) to create picture badges. Kit includes QL-570 label printer, Visitor Management and P-touch Editor software, power cord, two rolls of nonadhesive badge stock, 12 badge holders and lanyards.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

1.1 lps

Maximum Print Resolution:

300 x 600 dpi

Maximum Print Width:

2.30"

Barcode Symbology Supported:

Code 39
UCC/EAN 128
QR Code
Maxi Code
EAN/JAN-8
EAN/JAN-13
UPC-A
UPC-E
Codabar
Code 128
PDF-417
Data Matrix
ITF
RSS

Interfaces/Ports

USB:

Yes

Cutter

Cutter:

Yes

Cutting Method:

Automatic

Media Types & Handling

Media Type:

Label
Address Label
File Folder Label
CD/DVD Label
Shipping Label
Paper Tape

Maximum Label Width:

2.40"

Maximum Label Length:

36"

Physical Characteristics

Color:

Beige

Height:

5.6"

Width:

5.3"

Depth:

8.2"

Miscellaneous

Package Contents:

QL-570VM Thermal Label Printer
Manuals
Quick Reference Guide
2 x DK-N5224 Continuous rolls
2 x Non Adhesive DK Rolls
12 Badge Holders and Lanyards
USB and Power Cord
CD (Includes: VM-100 Visitor Badge and Management Software, P-touch Editor 5.0 Software and Drivers)

Cables Included:

Additional Information:

Can be used with a Web camera to create picture badges
Generate Emergency evacuation reports on-demand
Reception and Self check-in modes available
Database file compatibility
Font Styles: True Type
Display: 3 color LED
Cutter Life: 300,000?

Platform Supported:

Recycled:

Post-consumer-waste%:

Assembly Required:

Country of Origin:

China

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0012502621980, 0686727676638

UPC: 012502621980, 686727676638

EAN: 0012502621980, 0686727676638

UNSPSC: 45101512
