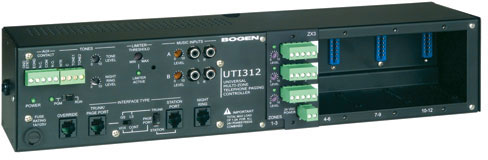

Bogen UTI312 Public Address Equipment
Bogen UTI312 -
The Bogen UTI312 Multi-Zone Telephone Interface universal telephone interface provides single-zone or multi-zone paging for one-way applications such as self-amplified speaker systems. It is compatible with all standard analog port types and includes two audio outputs with level controls. It features microcontroller-based operation. Other notable characteristics include Night Ringer, Tone Trigger, Tone burst, Programmable activation of AUX contacts and a wealth other advanced functions. It comes with wall mounting flanges and rack panel kits.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$395.69
Item on backorder — chat for lead time
Bogen UTI312 Public Address Equipment Options
-
Bogen UTI312 Public Address Equipment
Universal Telephone Interface, Multi-zone paging, Night Ringer, Tone Trigger, Tone burst, DTMF programming, Microcontroller-based operationItem on backorder — chat for lead time$395.69
Bogen UTI312 Public Address Equipment Model Overview
The UTI312 Zone Paging Controller is an advanced solution designed for multi-zone paging in one-way applications, such as self-amplified speaker systems. With seamless compatibility for up to 150 speakers per zone, this versatile controller offers robust functionality with capabilities to expand from 3 to 12 zones. Pre-installed with a ZX3 module, it features programmable options including all-call, night ring, and two-tone triggers, making it an ideal choice for commercial environments. The microcontroller-based operation ensures reliable performance while maintaining intuitive user control.
Key Features
- Expandable from 3 to 12 zones using ZX3 modules
- 24 programmable paging zone groups
- Supports various telephone interfaces including loop start trunk and page port activation
- Non-volatile memory for all setup data
- Audio drive for up to 150 self-amplified speakers per zone
- Wall or rack-mountable design for flexible installation
- Two-Year Warranty
Specifications
- Input Impedance: 600 ohms (nominal)
- Output Level: -10 dBm (nominal)
- Speaker Drive Capacity: 150 speakers per zone
- Aux Contact Closure: 2A @ 30V DC, 0.6A @ 125V AC
- Voltage: 120V AC
- Dimensions: 16-3/8" W x 3-1/2" H x 4-7/8" D
- Product Weight: 8 lb.
- Temperature Range: 0 to 104° F (-18 to 40° C)
- Humidity: 0 to 85% non-precipitating
- Approvals: C-UL (UL60950), FCC Part 68 Registered, FCC Part 15 Compliant
