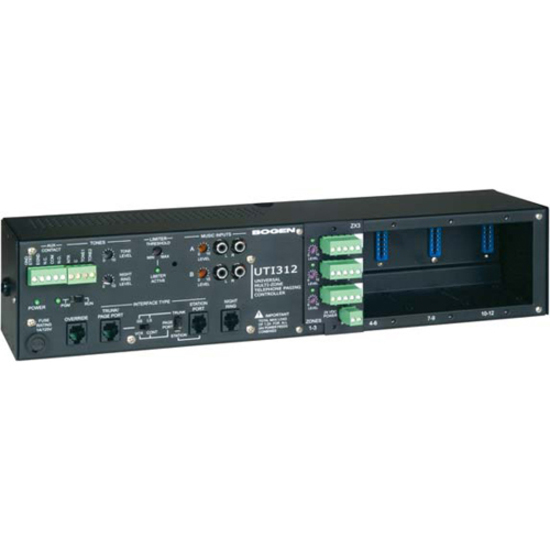

Bogen UTI312 Public Address Equipment Model Overview
The UTI312 Zone Paging Controller is an advanced solution designed for multi-zone paging in one-way applications, such as self-amplified speaker systems. With seamless compatibility for up to 150 speakers per zone, this versatile controller offers robust functionality with capabilities to expand from 3 to 12 zones. Pre-installed with a ZX3 module, it features programmable options including all-call, night ring, and two-tone triggers, making it an ideal choice for commercial environments. The microcontroller-based operation ensures reliable performance while maintaining intuitive user control.
Key Features
Expandable from 3 to 12 zones using ZX3 modules
24 programmable paging zone groups
Supports various telephone interfaces including loop start trunk and page port activation
Non-volatile memory for all setup data
Audio drive for up to 150 self-amplified speakers per zone
Wall or rack-mountable design for flexible installation
Two-Year Warranty
Specifications
Input Impedance: 600 ohms (nominal)
Output Level: -10 dBm (nominal)
Speaker Drive Capacity: 150 speakers per zone
Aux Contact Closure: 2A @ 30V DC, 0.6A @ 125V AC
Voltage: 120V AC
Dimensions: 16-3/8" W x 3-1/2" H x 4-7/8" D
Product Weight: 8 lb.
Temperature Range: 0 to 104° F (-18 to 40° C)
Humidity: 0 to 85% non-precipitating
Approvals: C-UL (UL60950), FCC Part 68 Registered, FCC Part 15 Compliant
