Full specifications (PDF)
Minimum Frequency Response:
20 Hz

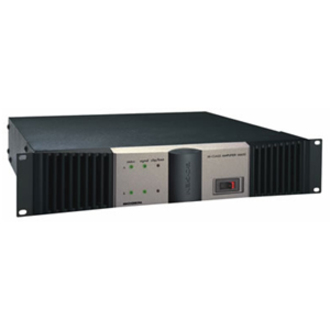

Bogen M600 Public Address Equipment
Part Number:
M600
Model:
M-Class
Bogen M-Class Public Address Equipment Model Overview
The Bogen M-Class Amplifier Series is engineered to meet the diverse needs of audio contractors, delivering exceptional reliability and unrivaled performance. With models offering up to 600W per channel and options for 70V mono, dual mono, or stereo configurations, these amplifiers provide flexibility to adapt to various installations. Each unit includes high-quality input modules, ensuring compatibility with a wide range of audio devices, all while protecting against overload and ensuring efficient cooling.
Key Features:
Specifications:
Key Features:
- Up to 600W/ch in stereo or 1200W for 70V mono operation
- Three modes of operation: 70V Mono, Dual Mono, Stereo
- Flexible modular input capability with 2 module capacity
- Built-in Sleep Mode to save energy during idle periods
- Advanced protection circuitry to safeguard against thermal overloads and signal clipping
Specifications:
- Power Output: 600W @ 4 ohms, 1200W for 70V systems
- Input Sensitivity: 1.161V for 600W @ 4 ohms
- Signal to Noise Ratio: 109 dB ref. 8 ohms
- Cooling: Two independent variable-speed fans
- Dimensions: 17" x 3.5" x 16"
- Weight: M600 - 46 lbs, M450 - 44 lbs, M300 - 41 lbs
- Indicators: Status, Clip/Limit, Signal
Bogen M600 Public Address Equipment Overview
Bogen's M-Class delivers on what professional sound installers need most - Flexibility, Power, and Reliability. Flexibility - 3 modes of operation: Stereo, 70V Mono, or Dual Mono; and 2 modular input bays for a variety of prioritized input types. Power - up to 600W/ch stereo. Massive power toroid and heat sinks; heavy 14-gauge chassis; patented Back-Slope AC voltage stabilization; Clip limiters, DC voltage, over-current, and thermal protection circuits.
Technical Information
Audio
Audio Channels:
2
RMS Output Power:
600 W
Power Description
Input Voltage:
110 V AC
Frequency:
60 Hz
Physical Characteristics
Height:
3.5"
Width:
17"
Depth:
16"
Weight (Approximate):
46 lb
Miscellaneous
Additional Information:
Features:
- Back-Slope AC voltage stabilization for dependable performance over varying AC line voltages
- 3 modes of operation: Stereo (4-ohm), Dual Mono (4-ohm), or 70V Mono
- Recessed volume control knobs with snap-on protective cover
- Heavy-gauge steel chassis with cast aluminum front panel
- 2 Module input bays for flexible modular input capability
- Low noise, low distortion, and high slew rate
- Status, Signal, and Clip/Limit indicators
- 2 x 1 mixer function in mono modes
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC:
52161547
