Bogen HFCS1 Public Address Equipment Model Overview
The Bogen HFCS1 High-Fidelity Ceiling Speaker is engineered for optimal sound performance in a variety of environments. Featuring a low-distortion speaker design complemented by dual front exit ports, it ensures exceptional sound clarity and bass response, making it an ideal choice for both music and speech reinforcement. Easy to install in different ceiling types, this versatile loudspeaker offers multiple power settings via a front-mounted rotary switch, ensuring compatibility with various audio systems. Key Features
Wide-dispersion coaxial driver for broad, even coverage
Selectable power taps with settings of 32, 16, 8, 4, 2, and 1 watt
Durable polycarbonate cone and compounded rubber surround for lasting performance
Computer-matched venting system for full bass output
Easy wiring with snap-on connector and loop-through capability
Attractive design with a white textured finish that can be painted
Specifications
Frequency Response: 65 Hz to 19 kHz
LF Driver: 6-1/2" PolyCone
HF Driver: 20 mm (3/4") Polycarbonate Dome
Sensitivity: 89 dBspl (Average 100 Hz - 10 kHz)
Impedance Ratings: Low (16 ohms) / High (70V/100V)
Max Power Input: 75W @ 16 ohms; 32W @ 70V/100V
Product Weight: 9 lb.
Speaker Dimensions: 12-16" dia. x 12" D
Back Can Material: Heavy-Gauge Plated Steel
Baffle Material: Fire-rated (94VO) ABS

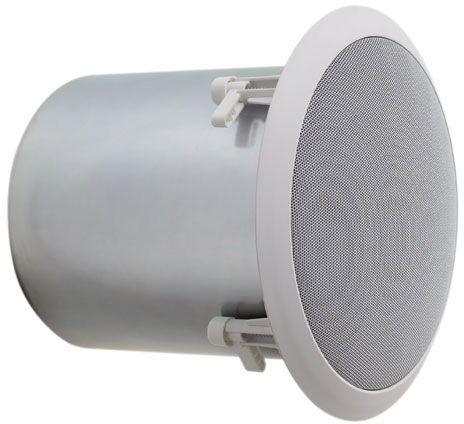

Bogen HFCS1LP Public Address Equipment Overview
The Bogen HFCS1LP Ceiling Loudspeaker deliver superior sound and clear intelligibility in a variety of ceiling environments. The system can be easily installed in hard-surfaced ceilings, suspended ceilings, and new constructions.
The Bogen HFCS1LP Public Address Equipment is also known as
BOG-HFCS1LP
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
