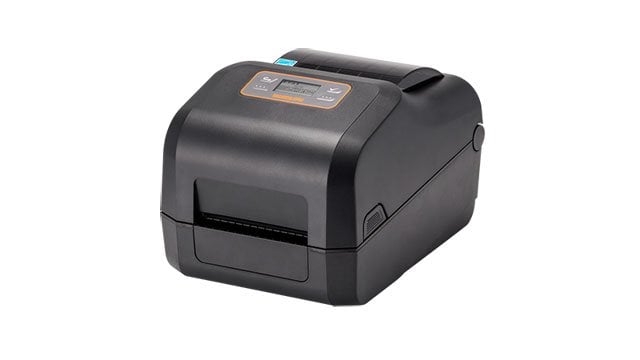

Bixolon XD5-40t – Barcode Label Printer

Part Number: XD5-40TWK
Model: XD5-40
Add to My Shopping List Add to Compare
$408.85

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recommended Use
Label Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
6 in/s
Maximum Print Resolution (dpi)
203

Product Description:

  Barcode Label Printers, Bixolon XD5-40, Black, Built In USB, USB Host, Wi-Fi, 6 ips Printing Speed, Thermal Transfer, 203 dpi, Package: Power Supply/US Power Cord, Warranty: Limited 2 Years, TPH 1 Year
Explore all Bixolon XD5-40 Barcode Label Printers
Add to Quote
Bixolon XD5-40TWK Barcode Label Printer
Bixolon XD5-40TWK Barcode Label Printer
Bixolon XD5-40TWK Barcode Label Printer
Bixolon XD5-40TWK Barcode Label Printer Bixolon XD5-40TWK Barcode Label Printer Bixolon XD5-40TWK Barcode Label Printer
Full specifications (PDF)

Bixolon XD5-40 Barcode Label Printer Model Overview

The XD5-40 Series 4-inch Desktop Label Printer delivers robust and reliable performance tailored for various industries including manufacturing, logistics, retail, and healthcare. With advanced direct thermal and thermal transfer printing options, it achieves fast processing speeds of up to 7 inches per second. Coupled with high-resolution capabilities, seamless wireless connectivity, and extensive memory, this printer is designed for growing business needs. User-friendly features such as an adjustable media guide, easy paper loading, and optional LCD display make it perfect for efficient operation and management.


Key Features

  • Print Methods: Direct Thermal (XD5-40d) & Thermal Transfer (XD5-40t)
  • Print Speeds: Up to 7 ips (XD5-40d) and 6 ips (XD5-40t)
  • High Resolution: Optional 300 dpi for fine print quality
  • Wireless Connectivity: Dual-band WLAN and Bluetooth V5.0
  • Usability Features: Compact design, adjustable media guide, and optional auto cutter
  • Label Design Software Compatibility: BIXOLON's Label Artist™ and Seagull's BarTender®

Specifications

  • Print Methods:
    • XD5-40d: Direct Thermal
    • XD5-40t: Thermal Transfer or Direct Thermal
  • Print Speeds:
    • XD5-40d: Up to 7 ips (178 mm/sec)
    • XD5-40t: Up to 6 ips (152 mm/sec)
  • Print Resolution:
    • XD5-40d, XD5-40t: 203 dpi
  • Dimensions:
    • XD5-40d: 194 x 248 x 169 mm
    • XD5-40t: 210 x 284 x 188 mm
  • Weight:
    • XD5-40d: 1.89 kg (4.17 lbs.)
    • XD5-40t: 2.48 kg (5.46 lbs.)
  • Connectivity:
    • USB + USB Host (standard)
    • Optional interfaces available: Serial, Ethernet, WLAN, Bluetooth
Bixolon XD5-40TWK Barcode Label Printer Overview

The mid-tier 4-inch (118mm) thermal transfer desktop label printer features a tool-less design for simple maintenance, multiple wired and wireless interface, optional mono LCD and supporting half-inch and full-inch core ribbon (74m and 300m). XD5-40t is suitable for asset marking, price management and manufacturing labelling that requires robust and exceptional print quality.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
39.37"
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • GS1 DataBar
  • Standard 2 of 5
  • UPC/EAN
  • UPC-A
  • UPC-E
  • IMB
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • Micro PDF-417
  • PDF417
  • QR Code
  • TLC 39
Peel Facility:
Yes
Application/Usage:
Desktop
Features:
  • Compact
  • LCD Display
Connectivity Technology:
Wireless
Optional Connectivity:
  • Serial (RS-232)
  • Bluetooth
  • Ethernet
Fonts Included:
  • 10 SLCS
  • One SLCS
  • 16 BPL-Z
  • One BPL-Z
  • 5 BPL-E
  • 23 Code Page
  • Unicode supported
  • UTF-8
  • UTF-16LE
  • UTF-16BE
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
64 MB
Interfaces/Ports
USB Host:
Yes
USB:
Yes
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Gap
  • Black Mark
  • Notch
  • Fanfold
  • Continuous Label
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
7.87 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Fonts & Emulation
Language Emulation:
  • SLCS
  • BPL-Z
  • BPL-D
  • BPL-E
Power Description
Power Source:
  • Power Adapter
  • AC Supply
Input Voltage:
  • 120 V AC
  • 230 V AC
Environmental Conditions
Operating Temperature:
41°F (5°C) - 104°F (40°C)
Operating Relative Humidity:
10% - 80%
Storage Temperature:
-4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity:
10% - 90%
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
7.4"
Width:
8.3"
Depth:
11.2"
Weight (Approximate):
5.47 lb
Miscellaneous
Power Cable Localization:
US
Platform Supported:
  • PC
  • Android
  • iOS
  • Mac
Energy Star:
Yes
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Bixolon XD5-40TWK Barcode Label Printer is also known as XD5-40TWK
