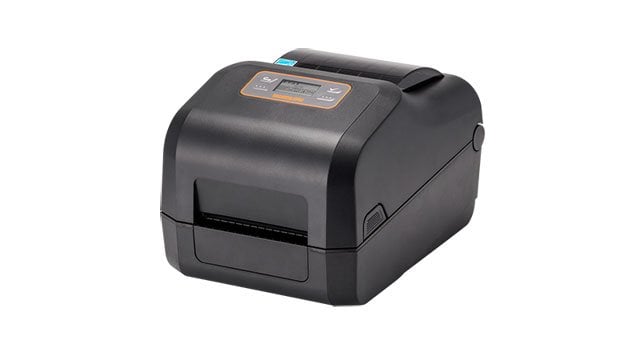

Bixolon XD5-40TEBK Barcode Label Printer

Bixolon XD5-40t - Barcode Label Printers, Bixolon XD5-40, Black, Built In USB, USB Host, Ethernet, Bluetooth, Serial, 6 ips Printing Speed, Thermal Transfer, 203 dpi, Power Supply/US Power Cord, Warranty: Limited 2 Years, TPH 1 Year
  • Direct Thermal/Thermal Transfer Printer provides high-quality label/receipt printing with maximum dependability
  • 203 maximum print resolution (dpi) offers great dependability with added efficiency
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
  • 4.65" maximum label width to easily accommodate your needs with added productivity
  • Supports label media type for dependable, efficient results with maximum productivity
  • Direct Thermal/Thermal Transfer Printer with desktop application/usage provides reliable, feasible printing solution
  • Compact feature for maximum productivity with added dependability
  • Comes with 64 MB standard memory to ensure maximum efficiency with great quality printing results
Read More

Need a different version? See all Bixolon XD5-40 Barcode Label Printers

$543.46
In Stock
Recommended TrueSupport Coverage (/mo.)
Add to Quote
Add to My Shopping List Add to Compare
Bixolon XD5-40TEBK Barcode Label Printer
Bixolon XD5-40TEBK Barcode Label Printer Bixolon XD5-40TEBK Barcode Label Printer Bixolon XD5-40TEBK Barcode Label Printer
Bixolon XD5-40TEBK Barcode Label Printer
Bixolon XD5-40TEBK Barcode Label Printer
Bixolon XD5-40TEBK Barcode Label Printer
Full specifications (PDF)
Bixolon XD5-40 Barcode Label Printer Model Overview
The XD5 series printers are available in Direct Thermal or Thermal Transfer model, fully compatible with a market-leading programming language such as SLCS??, BPL-Z?? and BPL-E??, while supporting Smart Switch Programming Language. The XD5 series supports UHF RFID encode and print capability, easy installation and maintenance with exceptional print quality at 300 dpi. The XD5 series can connect to a wired or wireless network - 10/100 Ethernet or WLAN 802.11a/b/g/n. The long-lasting print head, auto cutter and platen rollers with tool-less removable design minimize operation and maintenance costs.?The XD5 series offers easy integration with the availability of Windows, OPOS, Linux and MAC drivers, plus the development of your own applications via a suite of SDKs, and is backed by class-leading reliability.
Bixolon XD5-40TEBK Barcode Label Printer Overview

The mid-tier 4-inch (118mm) thermal transfer desktop label printer features a tool-less design for simple maintenance, multiple wired and wireless interface, optional mono LCD and supporting half-inch and full-inch core ribbon (74m and 300m). XD5-40t is suitable for asset marking, price management and manufacturing labelling that requires robust and exceptional print quality.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
39.37"
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • GS1 DataBar
  • Standard 2 of 5
  • UPC/EAN
  • UPC-A
  • UPC-E
  • IMB
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • Micro PDF-417
  • PDF417
  • QR Code
  • TLC 39
Application/Usage:
Desktop
Features:
  • Compact
  • LCD Display
Connectivity Technology:
Wired
Optional Connectivity:
Wireless LAN
Fonts Included:
  • 10 SLCS
  • One SLCS
  • 16 BPL-Z
  • One BPL-Z
  • 5 BPL-E
  • 23 Code Page
  • Unicode supported
  • UTF-8
  • UTF-16LE
  • UTF-16BE
Memory
Standard Memory:
64 MB
Interfaces/Ports
Serial Port:
Yes
USB Host:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Bluetooth:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Gap
  • Black Mark
  • Notch
  • Fanfold
  • Continuous Label
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
7.87 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.65"
Fonts & Emulation
Language Emulation:
  • SLCS
  • BPL-Z
  • BPL-D
  • BPL-E
Power Description
Power Source:
  • Power Adapter
  • AC Supply
Input Voltage:
  • 120 V AC
  • 230 V AC
Environmental Conditions
Operating Temperature:
41°F (5°C) - 104°F (40°C)
Operating Relative Humidity:
10% - 80%
Storage Temperature:
-4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity:
10% - 90%
Physical Characteristics
Product Color:
Black
Height:
7.4"
Width:
8.3"
Depth:
11.2"
Weight (Approximate):
5.47 lb
Miscellaneous
Power Cable Localization:
US
Platform Supported:
  • PC
  • Android
  • iOS
  • Mac
Energy Star:
Yes
Item Numbers
UNSPSC: 43212108
