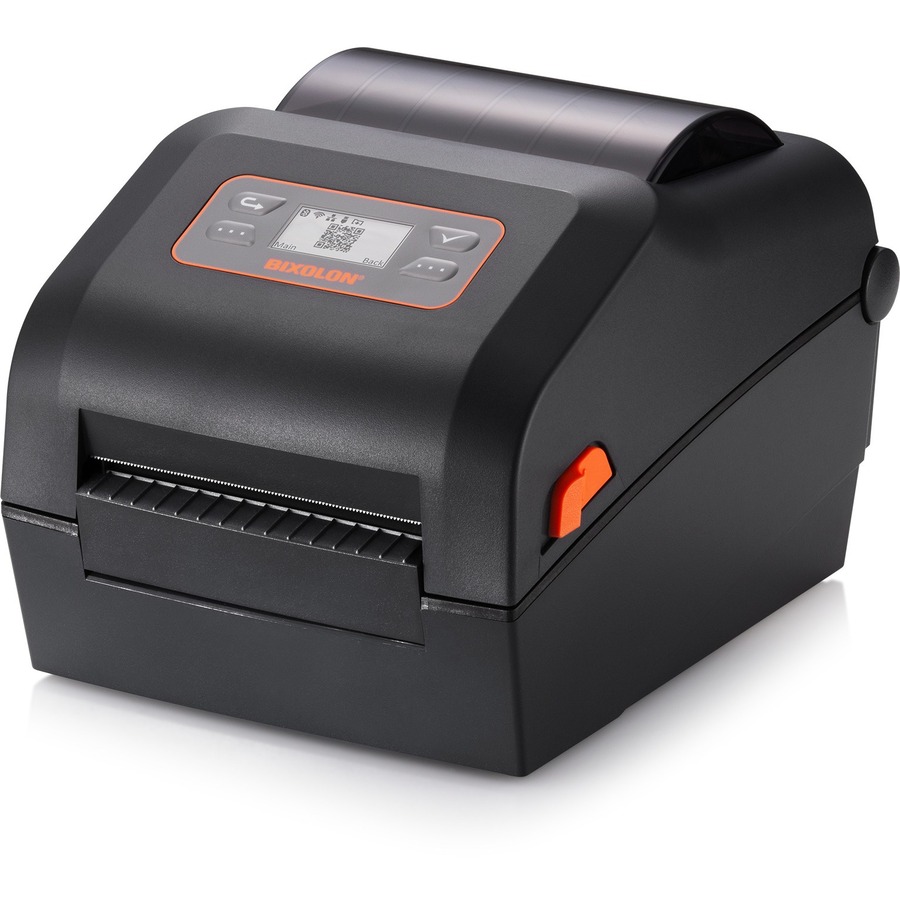

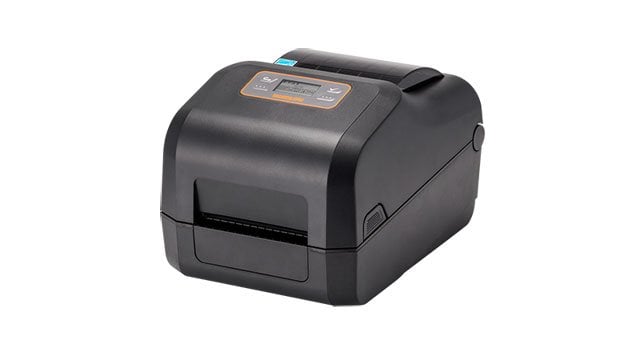

Bixolon XD5-40 Barcode Label Printer Model Overview
The XD5-40 Series 4-inch Desktop Label Printer delivers robust and reliable performance tailored for various industries including manufacturing, logistics, retail, and healthcare. With advanced direct thermal and thermal transfer printing options, it achieves fast processing speeds of up to 7 inches per second. Coupled with high-resolution capabilities, seamless wireless connectivity, and extensive memory, this printer is designed for growing business needs. User-friendly features such as an adjustable media guide, easy paper loading, and optional LCD display make it perfect for efficient operation and management.
Key Features
Print Methods: Direct Thermal (XD5-40d) & Thermal Transfer (XD5-40t)
Print Speeds: Up to 7 ips (XD5-40d) and 6 ips (XD5-40t)
High Resolution: Optional 300 dpi for fine print quality
Wireless Connectivity: Dual-band WLAN and Bluetooth V5.0
Usability Features: Compact design, adjustable media guide, and optional auto cutter
Label Design Software Compatibility: BIXOLON's Label Artist™ and Seagull's BarTender®
Specifications
Print Methods:
XD5-40d: Direct Thermal
XD5-40t: Thermal Transfer or Direct Thermal
Print Speeds:
XD5-40d: Up to 7 ips (178 mm/sec)
XD5-40t: Up to 6 ips (152 mm/sec)
Print Resolution:
XD5-40d, XD5-40t: 203 dpi
Dimensions:
XD5-40d: 194 x 248 x 169 mm
XD5-40t: 210 x 284 x 188 mm
Weight:
XD5-40d: 1.89 kg (4.17 lbs.)
XD5-40t: 2.48 kg (5.46 lbs.)

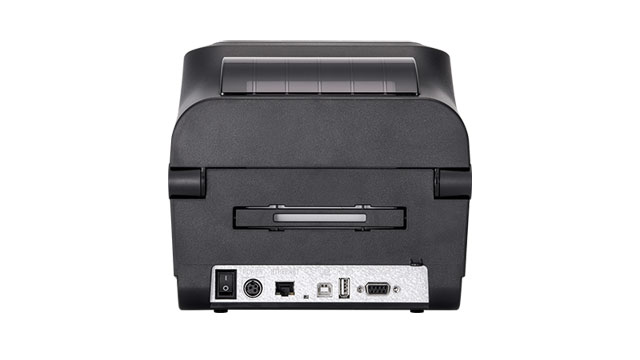

Connectivity:
USB + USB Host (standard)
Optional interfaces available: Serial, Ethernet, WLAN, Bluetooth
Bixolon XD5-40DEBK Barcode Label Printer Overview
Robust and highly featured
The XD5-40d is a 4-inch (118mm) mid-level Direct Thermal Desktop Barcode and Label Printer featuring a compact, clamshell design and comprehensive software features which is ideal for labelling applications within the Manufacturing, Transport and Logistics, Retail and Healthcare industries. Available as XD5-40d (203dpi) and XD5-43d (300dpi) resolution options, the XD5-40d's standard model (XD5-40d) offers quick data processing and print speeds of up to 7 ips (178mm/sec), with enhanced memory space of up to 256MB SDRAM and 256MB Flash.
Accompanied with a field installable Peeler, Auto Cutter and an external paper supply, the label printer offers an optional visual LCD display, adjustable paper guide plus holder and space for a media roll diameter of up to 127mm. Complemented by its Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 2-year warranty as standard.
Supporting multiple connectivity options, the XD5-40d comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The XD5-40d is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON's XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file). Alongside compatibility with label design software including BIXOLON's Label Artist-II™ and BarTender®.
The Bixolon XD5-40DEBK Barcode Label Printer is also known as
XD5-40DEBK
