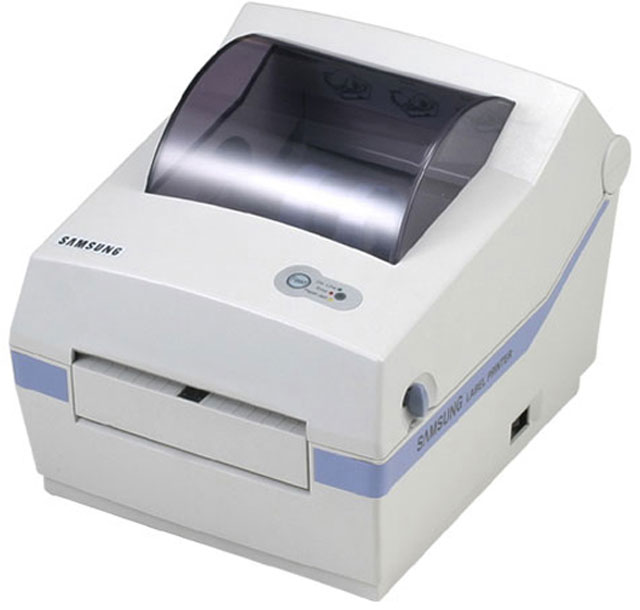

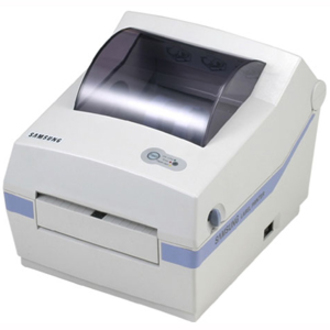

Bixolon SRP-770 Receipt Printer

Overview

Full specifications (PDF)

Bixolon SRP-770 Receipt Printer Model Overview

The Samsung SRP-770 is the perfect printer for applications that need to print a large amount of information on a receipt. The SRP-770 can produce direct thermal labels for retail, warehouse, shipping & receiving, medical and many other applications. USB, serial and parallel interfaces are standard on every printer.

Bixolon SRP-770 Receipt Printer Overview

The SRP-770 is the only printer on the market that provides printing on 1" to 4" wide paper at an amazing speed. It is the perfect printer for applications that need to print a large amount of information on a receipt . Produce direct thermal labels for retail, warehouse, shipping/ receiving, medical and many other applications. USB, serial and parallel interface standard on every printer.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Maximum Mono Print Speed:

5 in/s 5 lps

Maximum Print Resolution:

203 dpi

Maximum Print Width:

Barcode Symbology Supported:

Code 39
Code 128
Interleaved 2 of 5
Codabar
Code 93
UPC-A
UPC-E
EAN-8
EAN-13
UCC/EAN 128
Maxi Code
PDF-417

Features:

Dispenser

Memory

Standard Memory:

512 KB

Flash Memory:

1 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Media Types & Handling

Media Type:

Die-cut Label
Fanfold
Roll Fed
Linerless

Media Sensor:

Reflective Media Sensor

Maximum Roll Diameter:

1.50"

Maximum Label Width:

4.10"

Maximum Label Length:

12"

Power Description

Input Voltage:

24 V DC

Physical Characteristics

Height:

6.7"

Width:

7.2"

Depth:

8.7"

Miscellaneous

Additional Information:

Paper Type: KANZAKI, RICOH, FASSON
Printing Direction: Unidirection with Friction Feed

Item Numbers

UNSPSC: 43212108
