Bixolon SRP-770II – Barcode Label Printer – 203 dpi

Part Number: SRP-770II
Model: SRP-770II
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Print Resolution
203 dpi

Product Description:

  Samsung Bixolon SRP-770II Thermal Label Printer - Monochrome - 203 dpi - USB, Serial, Parallel
Explore all Bixolon SRP-770II Barcode Label Printers
Add to Quote

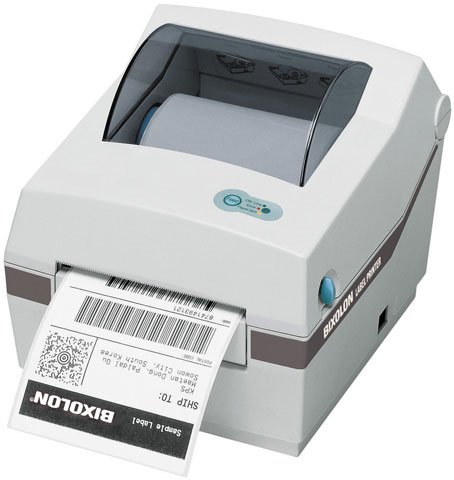

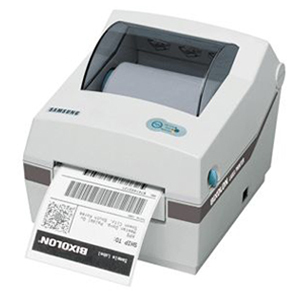

Bixolon SRP-770II Barcode Label Printer
Bixolon SRP-770II Barcode Label Printer
Bixolon SRP-770II Barcode Label Printer Bixolon SRP-770II Barcode Label Printer
Full specifications (PDF)

Bixolon SRP-770II Barcode Label Printer Model Overview

The Samsung-Bixolon SRP-770II is the ideal solution for label printing with its high printing speed, its versatile and upgraded, all-in-one interfaces, plus the ease of SLSC, EPL2 and ZPL2 emulations all make it an easy choice. The SRP-770II also sports the unique feature of a standard peel-off dispenser, a first in its class. Upgrades over the SRP-770 include a wider paper width, media sensor-calibration, an automatic checking of font versions, memory switch function, increased number of code pages 16-22, and 16 international characters. The SRP-770II prints 2 dimensional barcodes, Maxicode, PDF417 and QR Code.
Bixolon SRP-770II Barcode Label Printer Overview

he SRP-770II is the only printer on the market that provides printing on 1inch to 4inch wide paper at an amazing speed. It is the perfect printer for applications that need to print a large amount of information on a receipt . The SRP-770II can produce direct thermal labels for retail, warehouse, shipping/ receiving, medical and many other applications

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
51 in/s
Maximum Print Resolution:
203 dpi
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Code 39
  • Code 128
  • Interleaved 2 of 5
  • Codabar
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UCC/EAN 128
  • Maxi Code
  • PDF-417
Features:
Dispenser
Memory
Standard Memory:
2 MB
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Label
  • Tag
  • Continuous Form
  • Linerless
  • Fanfold
Media Size:
  • 4.20" x Roll Paper
  • 4.40"
Media Sensor:
Reflective Media Sensor
Maximum Roll Diameter:
5.10"
Maximum Label Width:
4.40"
Fonts & Emulation
Language Emulation:
  • EPL II
  • ZPL
  • ESC/POS
Software
Operating System Supported:
  • Microsoft Windows 2003
  • Microsoft Windows 95/98/ME/NT/2000/XP
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
6.7"
Width:
7.2"
Depth:
8.7"
Weight (Approximate):
3.63 lb
Miscellaneous
Additional Information:
  • Paper Supply: Easy Paper Loading

Paper Width:

  • Roll: 1.5 - 4.2 inch
  • Fan-fold: 2.9 - 4.4 inch

Sensors:

  • Gap
  • Notch
  • Black Mark
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0145303989550, 0777786034191, 4923773118603, 4923773152775, 4943783176363, 4943793116694, 8809166671084
UPC: 145303989550, 777786034191
EAN: 0145303989550, 0777786034191, 4923773118603, 4923773152775, 4943783176363, 4943793116694, 8809166671084
UNSPSC: 43212108
