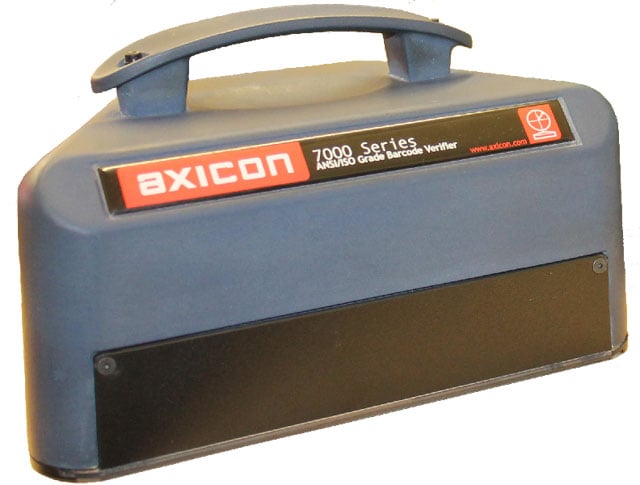

Axicon 7015-IP Barcode Verifier
Axicon 7015-IP -
The IP50 rating makes the 7015-IP50 ideal for use in dusty environments while the IP65 rated version is ideal for use where a higher level of protection is required -- including use in hose down areas such as in the food industry. The Axicon 7015-IP verifiers have been specifically designed for all barcodes where an 8, 10, or 20mil aperture is mandatory, up to 185mm width including quite zones. Meets International Standards.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$10.00
Axicon 7015-IP Barcode Verifier Options
-
Axicon V7015-IP50 Barcode Verifier
The Axicon 7015-IP50 has an IP50 rating (protection against harmful dust particles). -
Axicon V7015-IP65 Barcode Verifier
The Axicon 7015-IP65 has an IP65 rating (totally sealed against all dust ingress and sealed against low pressure water spray from all directions).
Axicon 7015-IP Barcode Verifier Model Overview
The Axicon 7015-IP Barcode Verifiers are engineered for optimal performance in demanding industrial environments. With IP protection ratings of IP50 and IP65, these verifiers cater to a variety of usage conditions—ideal for dusty areas or high-contact zones found in the food industry. They verify various barcode types with precision, supporting symbologies such as GS1-128 and ITF-14, ensuring compliance with international standards. The user-friendly design minimizes errors and maximizes accuracy, while advanced technology guarantees that your verification process remains robust and reliable across applications.
Key Features
- IP Protection Ratings: Available in IP50 and IP65 for various environmental requirements.
- Robust Verification: Independently tested to meet ISO/ANSI standards for multiple barcode types.
- User-Friendly Design: Automatic variable aperture to reduce user error.
- Multi-Language Interface: Easy accessibility for global users.
- Advanced Software: Includes diagnostics, plugins for enhanced functionality and USB connectivity.
Specifications
- Dimensions: 215 x 125 x 95mm (8.4" x 4.9" x 3.7")
- Weight: 1 Kg (35.2 Oz)
- Construction: Cast Aluminium and ABS plastic
- Interface: USB
- Nominal Measuring Aperture: 8mil, 10mil, and 20mil
- Power Consumption: Current draw of 180mA supplied via USB host
- Environmental Ratings: Operating temperature: 10° to 40°C, Storage temperature: -20° to 70°C
- Compliance: CE Certified, RoHS Compliant, meets ISO 15416 & 15426-1 standards
- Warranty: 2 years parts and labor - return to bench
