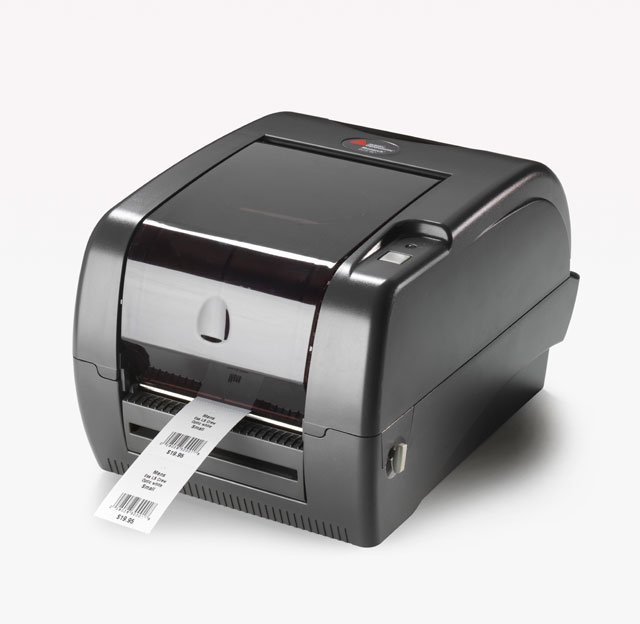

Avery-Dennison 9416 XL – Barcode Label Printer – Thermal Transfer
Part Number:
M09416TT3IEXL
Model:
9416 XL
Full specifications (PDF)
Avery-Dennison 9416 XL Barcode Label Printer Model Overview
The Avery Dennison® Monarch® 9416XL Printer is your go-to solution for efficient label printing in space-constrained environments like retail back rooms and shipping docks. Its compact design enables it to fit seamlessly into tight spaces while delivering high-speed printing, making it perfect for shipping labels, small signs, and receipts. With options for both thermal direct and thermal transfer supplies, and the ability to handle various media types, the 9416XL enhances productivity and simplifies your labeling tasks.
Key features:
Specifications:
Key features:
- High-speed printing: Prints at speeds up to 4 ips (3 ips at 300 dpi).
- Flexible supply choice: Supports non-indexed, continuous, die-cut, black mark, roll, and fanfold media.
- Versatile connectivity: Ethernet, USB, Serial, and Centronics/Parallel Port options available.
- Memory capabilities: Equipped with 4 Mb Flash and 8 Mb SDRAM for faster print jobs.
- Two printing resolutions: Choose between 203 dpi and 300 dpi.
Specifications:
- Printer Types: Thermal Transfer and Thermal Direct
- Dimensions (Thermal Transfer): Height: 7.4" (118 mm), Width: 8.38" (213 mm), Depth: 12.36" (314 mm), Weight: 6.3 lbs (2.86 kg)
- Dimensions (Thermal Direct): Height: 6.3" (168 mm), Width: 8.25" (210 mm), Depth: 9.4" (239 mm), Weight: 4.1 lbs (1.9 kg)
- Processor: 32-bit RISC Processor
- Memory: 4 Mb Flash, 8 Mb SDRAM, SD card reader
- Printer Language: MPCLII/EPL2 (auto detect)
- Connections: Serial, Centronics/Parallel Port, USB
- Media Width: 0.78" - 4.4" (20-112mm)
- Media Thickness: 2.36 - 6.3 mil
- Core Diameter: 1"-3" (25.4mm -76.2mm)
- Printer Warranty: One (1) year parts and labor
- Printhead Warranty: 1 million inches or six months, whichever comes first
- Barcode Types: Supports various barcode formats, including UPC, EAN, and Code 39.
