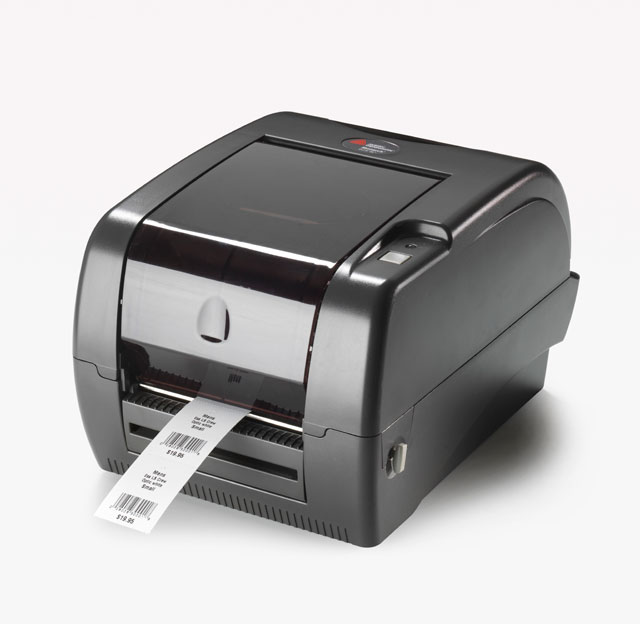

Avery-Dennison 9416 XL – Barcode Label Printer – 203 dpi

Part Number: M09416TT2XL

Model: 9416 XL

$808.88

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

Print Resolution

203 dpi

Product Description:

Monarch 9416 XL Thermal Label Printer - Monochrome - 5 in/s Mono - 203 dpi - Serial, Parallel

Explore all Avery-Dennison 9416 XL Barcode Label Printers

Add to Quote

Avery-Dennison M09416TT2XL Barcode Label Printer

Overview

Full specifications (PDF)

Avery-Dennison 9416 XL Barcode Label Printer Model Overview

The Avery Dennison® Monarch® 9416XL Printer is your go-to solution for efficient label printing in space-constrained environments like retail back rooms and shipping docks. Its compact design enables it to fit seamlessly into tight spaces while delivering high-speed printing, making it perfect for shipping labels, small signs, and receipts. With options for both thermal direct and thermal transfer supplies, and the ability to handle various media types, the 9416XL enhances productivity and simplifies your labeling tasks.
Key features:

High-speed printing: Prints at speeds up to 4 ips (3 ips at 300 dpi).
Flexible supply choice: Supports non-indexed, continuous, die-cut, black mark, roll, and fanfold media.
Versatile connectivity: Ethernet, USB, Serial, and Centronics/Parallel Port options available.
Memory capabilities: Equipped with 4 Mb Flash and 8 Mb SDRAM for faster print jobs.
Two printing resolutions: Choose between 203 dpi and 300 dpi.

Specifications:

Printer Types: Thermal Transfer and Thermal Direct
Dimensions (Thermal Transfer): Height: 7.4" (118 mm), Width: 8.38" (213 mm), Depth: 12.36" (314 mm), Weight: 6.3 lbs (2.86 kg)
Dimensions (Thermal Direct): Height: 6.3" (168 mm), Width: 8.25" (210 mm), Depth: 9.4" (239 mm), Weight: 4.1 lbs (1.9 kg)
Processor: 32-bit RISC Processor
Memory: 4 Mb Flash, 8 Mb SDRAM, SD card reader
Printer Language: MPCLII/EPL2 (auto detect)
Connections: Serial, Centronics/Parallel Port, USB
Media Width: 0.78" - 4.4" (20-112mm)
Media Thickness: 2.36 - 6.3 mil
Core Diameter: 1"-3" (25.4mm -76.2mm)
Printer Warranty: One (1) year parts and labor
Printhead Warranty: 1 million inches or six months, whichever comes first
Barcode Types: Supports various barcode formats, including UPC, EAN, and Code 39.

Avery-Dennison M09416TT2XL Barcode Label Printer Overview

The Monarch 9416 XL printer may be small, but it's big on memory. With more memory to work with, print jobs go faster, increasing productivity. If this standard memory still isn't enough, install a standard SD memory card. The Monarch 9416 XL printer is a great solution for item marking, returns, markdowns, shipping, signage printing, shelf labels and more.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

5 in/s

Maximum Print Resolution (dpi):

203

Barcode Symbology Supported:
