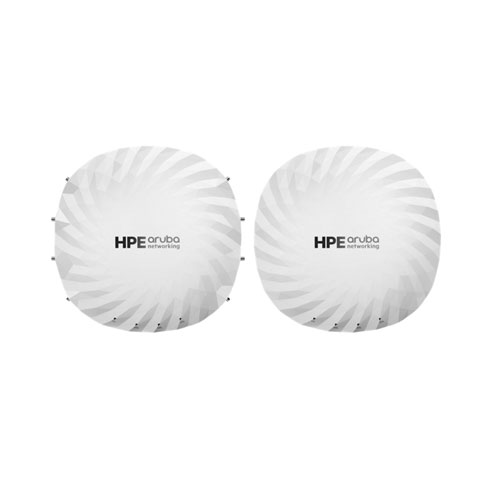

HPE Aruba S1G85A Wireless Access Points

The HPE Aruba S1G85A delivers up to 18.7 Gbps aggregate throughput across its tri-band configuration (2.4 GHz, 5 GHz, and 6 GHz), and can reach 28.8 Gbps peak throughput when operating in dual-6 GHz mode. This is achieved through concurrent 4×4 MIMO on all three bands with support for 802.11be multilink and 4K QAM modulation. We offer this flagship access point for organizations requiring extreme performance and capacity in high-density environments.

Yes, the S1G85A includes integrated Bluetooth 5.4 and IEEE 802.15.4 (Zigbee) radios for comprehensive IoT support, plus a built-in GNSS L1/L5 receiver and barometric sensor for precise indoor mapping and location tracking. These capabilities enable seamless integration with IoT devices and location-based services without requiring separate hardware. Contact us today to discuss how these features can enhance your facility management and asset tracking capabilities.

The S1G85A features two 10 GbE Smart Rate ports with MACsec support and Power-over-Ethernet (PoE) capability across IEEE 802.3af, at, and bt standards. The dual 10 GbE ports with redundancy ensure uninterrupted uplink connectivity and support high-bandwidth backhaul requirements. Visit barcodesinc.com to confirm port configurations and PoE power budget requirements for your deployment.

The S1G85A incorporates enterprise-grade security including WPA3 encryption, Enhanced Open protocol support, MACsec for port-level security, and a Trusted Platform Module (TPM) 2.0 for secure credential storage and device authentication. These features work together to protect against unauthorized access and man-in-the-middle attacks across all wireless bands. We offer this access point for organizations with stringent security compliance requirements.

The S1G85A's advanced tri-band coexistence filtering optimizes band separation and minimizes interference between the 2.4 GHz, 5 GHz, and 6 GHz radios operating simultaneously. This intelligent filtering, combined with ClientMatch and AirMatch RF optimization algorithms, ensures clients are automatically steered to the best-performing band and channel. The result is improved throughput, reduced latency, and better user experience across your wireless network.

The S1G85A operates reliably in temperatures from 0°C to 50°C with humidity levels between 5–95% relative humidity, making it suitable for both indoor campus deployments and controlled outdoor environments. The access point measures 260×260×57 mm and weighs 1.53 kg, fitting standard ceiling or wall mounting configurations. Contact us today for guidance on installation planning and environmental assessment for your specific deployment location.
