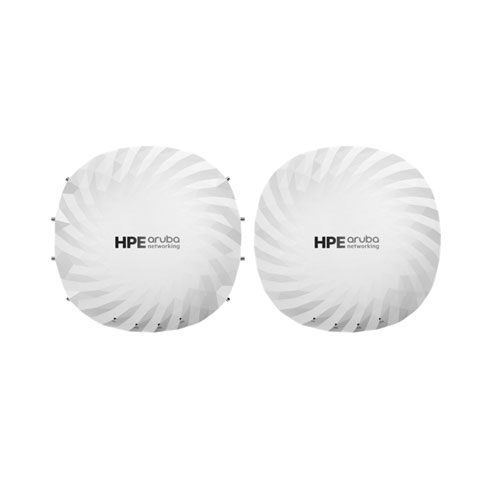

HPE Aruba 750 Series Wireless Access Points Model Overview
The HPE Aruba Networking 750 Series Campus Access Points are a game-changer in the realm of wireless connectivity, offering robust, high-speed, and secure network solutions ideal for demanding environments. Featuring advanced Wi-Fi 7 (802.11be) technology, this flagship series significantly enhances connectivity with up to 18.7 Gbps maximum tri-band aggregate data rate. With capabilities to support extensive IoT devices and powerful location services, these access points ensure seamless user experiences in high-capacity settings.
Key features:
Wi-Fi 7 technology offering multilink operation (MLO) for optimal throughput.
Tri-band support with three 4x4 MIMO radios—capable of up to 28.8 Gbps data rate.
Enhanced security with MACsec support and advanced encryption for data protection.
IoT-ready platform featuring integrated Bluetooth and Zigbee radios.
Dynamic power savings with AI-driven power management for energy efficiency.
Specifications:
Access Point Types: Indoor, tri-radio, 2.4 GHz, 5 GHz, and 6 GHz
Maximum Aggregate Data Rate: Up to 28.8 Gbps
Ethernet Ports: Dual 10GbE ports for redundancy and increased capacity
IoT Capabilities: Two integrated Bluetooth and Zigbee radios
Environmental Operating Range: 0°C to +50°C, with humidity support from 5% to 95%
Dimensions: (AP-755) 260mm x 260mm x 57mm, Weight: 1530g
Power Options: Supports PoE with maximum consumption of 51W
HPE Aruba S1G82A Wireless Access Points Overview
HPE Aruba Networking 750 Series Campus Access Points | Flagship Wi-Fi 7 access points for high performance, high capacity, resilient, and secure wireless connectivity
Ideal for the most demanding users and applications, the HPE Aruba Networking 750 Series Campus APs deliver secure, and high-performance Wi-Fi 7 connectivity. The flagship 750 Series delivers up to 18.7 Gbps maximum tri-band aggregate data rate and goes beyond the Wi-Fi 7 standard to maximize 6 GHz capacity by up to 30%, connect 2 times the IoT devices, strengthen security across wired and wireless, and enable highly accurate location-aware capabilities.
Unique to HPE Aruba Networking, the 750 Series APs includes Ultra Tri-Band (UTB) filtering and dual 10 Gbps Ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity. Intelligent automation, AI insights, and unified infrastructure management, provided by HPE Aruba Networking Wireless Operating System (AOS-10) and HPE Aruba Networking Central, help drive efficient IT operations.
What are the maximum throughput speeds for the HPE Aruba S1G82A access point?
The HPE Aruba S1G82A delivers up to 18.7 Gbps aggregate throughput in tri-band mode (2.4 GHz, 5 GHz, and 6 GHz), with the ability to upgrade to 28.8 Gbps peak throughput when operating in dual-6 GHz mode. This extreme performance is enabled by Wi-Fi 7 (802.11be) technology with concurrent 4×4 MIMO on all three bands and 4K QAM modulation. Contact us today to learn how this access point can meet your high-capacity wireless requirements.
Does the S1G82A support IoT devices and location services?
Yes, the HPE Aruba S1G82A includes integrated Bluetooth 5.4 and IEEE 802.15.4 (Zigbee) radios for comprehensive IoT connectivity, plus GNSS L1/L5 receivers and a barometric sensor for precise indoor mapping and location services. These built-in capabilities enable seamless integration of IoT devices and real-time asset tracking without requiring separate infrastructure. Visit barcodesinc.com to explore how this multi-protocol support simplifies your IoT deployment.
What network connectivity options does the S1G82A provide?
The access point features two 10 GbE Smart Rate ports with MACsec support for high-speed backhaul connectivity and enhanced security. Both ports support Power over Ethernet (PoE) classes 3–6 and 802.3af/at/bt standards, allowing flexible power delivery options. This dual 10 GbE architecture with redundant connectivity ensures uninterrupted network performance in mission-critical environments.
How does the S1G82A simplify deployment and RF management?
The S1G82A features AI-driven provisioning and RF tuning through ClientMatch and AirMatch technologies, which automatically optimize band selection and spatial stream allocation for each connected device. Cloud-native zero-touch setup eliminates manual configuration, while tri-band coexistence filtering ensures optimal band separation and performance. We offer management through HPE Aruba OS-10 and Central with AIOps capabilities for streamlined operations.
What security features are built into the S1G82A?
The HPE Aruba S1G82A includes WPA3 encryption, Enhanced Open authentication, MACsec for port-level security, and a Trusted Platform Module (TPM) 2.0 for secure credential storage and cryptographic operations. These enterprise-grade security features protect against unauthorized access and ensure data integrity across your wireless network. Contact us today for guidance on deploying this access point in security-sensitive environments.
What are the operating conditions and physical specifications for the S1G82A?
The S1G82A operates reliably in temperatures from 0°C to 50°C with humidity levels between 5–95% RH, making it suitable for diverse deployment scenarios including warehouse and logistics environments. The compact form factor measures 260×260×57 mm and weighs only 1.53 kg, enabling flexible mounting options. It holds certifications from Wi-Fi Alliance, CE, FCC/ISED, UL2043, and IEC 62368-1 for global compliance.
Full specifications (PDF)
