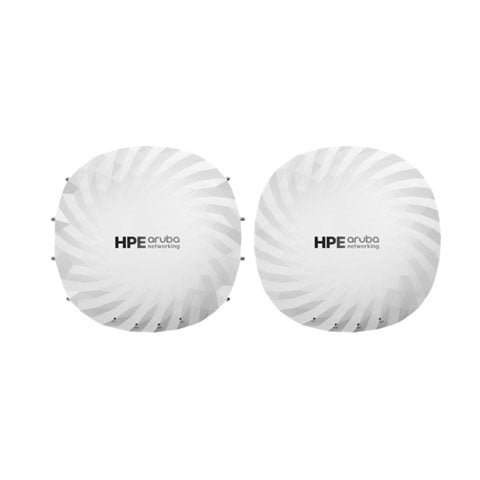

HPE Aruba 750 Series Wireless Access Points Model Overview
The HPE Aruba Networking 750 Series Campus Access Points are a game-changer in the realm of wireless connectivity, offering robust, high-speed, and secure network solutions ideal for demanding environments. Featuring advanced Wi-Fi 7 (802.11be) technology, this flagship series significantly enhances connectivity with up to 18.7 Gbps maximum tri-band aggregate data rate. With capabilities to support extensive IoT devices and powerful location services, these access points ensure seamless user experiences in high-capacity settings.
Key features:
Wi-Fi 7 technology offering multilink operation (MLO) for optimal throughput.
Tri-band support with three 4x4 MIMO radios—capable of up to 28.8 Gbps data rate.
Enhanced security with MACsec support and advanced encryption for data protection.
IoT-ready platform featuring integrated Bluetooth and Zigbee radios.
Dynamic power savings with AI-driven power management for energy efficiency.
Specifications:
Access Point Types: Indoor, tri-radio, 2.4 GHz, 5 GHz, and 6 GHz
Maximum Aggregate Data Rate: Up to 28.8 Gbps
Ethernet Ports: Dual 10GbE ports for redundancy and increased capacity
IoT Capabilities: Two integrated Bluetooth and Zigbee radios
Environmental Operating Range: 0°C to +50°C, with humidity support from 5% to 95%
Dimensions: (AP-755) 260mm x 260mm x 57mm, Weight: 1530g
Power Options: Supports PoE with maximum consumption of 51W
What are the maximum throughput speeds for the HPE Aruba S0H11A access point?
The HPE Aruba S0H11A delivers up to 18.7 Gbps aggregate throughput across its tri-band configuration (2.4 GHz, 5 GHz, and 6 GHz). In dual-6 GHz mode, the access point can achieve peak speeds of 28.8 Gbps, making it ideal for high-density deployments requiring extreme performance. This Wi-Fi 7 (802.11be) capability with 4×4 MIMO on each band ensures maximum data rates for demanding enterprise environments.
Does the HPE Aruba S0H11A support IoT and location-based services?
Yes, the S0H11A includes integrated Bluetooth 5.4 and IEEE 802.15.4 (Zigbee) radios for comprehensive IoT connectivity. It also features a GNSS L1/L5 receiver and barometric sensor for precise indoor mapping and location services, enabling advanced asset tracking and environmental monitoring capabilities. These integrated radios eliminate the need for separate IoT access points in your deployment.
What network connectivity options are available on the HPE Aruba S0H11A?
The S0H11A provides two 10 GbE Smart Rate ports with MACsec support for secure, high-speed backhaul connectivity. Both ports support Power over Ethernet (PoE) delivery across IEEE 802.3af, at, and bt standards, allowing flexible deployment options without requiring separate power supplies. The redundant 10 GbE ports ensure uninterrupted connectivity and network resilience.
How does the HPE Aruba S0H11A simplify deployment and ongoing management?
The S0H11A features cloud-native zero-touch setup and AI-driven provisioning that dramatically reduces deployment time and complexity. Its ClientMatch and AirMatch technologies provide automated RF optimization and band steering, while the OS-10 and Central management platforms with AIOps deliver intelligent monitoring and troubleshooting. Contact us today to learn how we can streamline your wireless infrastructure deployment.
What security features does the HPE Aruba S0H11A provide?
The S0H11A incorporates enterprise-grade security including WPA3 encryption, Enhanced Open for guest networks, MACsec for port-level security, and TPM 2.0 for secure credential storage. These features work together to protect your network from unauthorized access and ensure compliance with modern security standards. The dual 10 GbE ports with MACsec support provide additional layer-2 security for backhaul traffic.
What are the environmental operating conditions and physical specifications for the HPE Aruba S0H11A?
The S0H11A operates reliably in temperatures from 0°C to 50°C with humidity levels between 5% and 95%, making it suitable for diverse indoor and outdoor campus environments. The compact form factor measures 260×260×57 mm and weighs only 1.53 kg, allowing flexible mounting options. It meets international certifications including Wi-Fi Alliance, CE, FCC/ISED, UL2043, and IEC 62368-1 standards.
The HPE Aruba S0H11A Wireless Access Points is also known as
HPE-S0H11A
