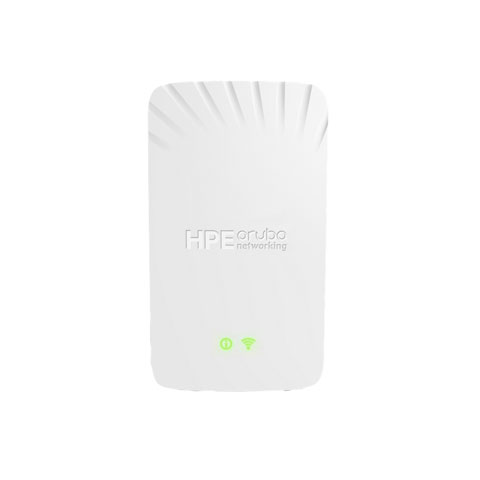

HPE Aruba R3V38A Wireless Access Points

The HPE Aruba Networking 500H Series Hospitality Access Points deliver high-performance, cost-effective connectivity tailored for hospitality and remote work environments. With advanced Wi-Fi 6 (802.11ax) technology, these access points support up to 1.5 Gbps throughput and provide seamless integration of wired and wireless access. Ideal for venues like hotels and remote offices, they offer a scalable solution that manages multiple devices and traffic types efficiently, ensuring optimal connectivity for end-users.

• Wi-Fi 6 (802.11ax) technology for superior wireless performance.
• Up to 1.5 Gbps maximum wireless throughput.
• WPA3 and Enhanced Open security for better data protection.
• 4 wired network ports and 1 Smart Rate uplink for versatile connectivity.
• Patented ClientMatch technology for seamless device management.
• IoT-ready with support for Bluetooth 5 and Zigbee.

• Hardware Variants:
  • AP-503H: 1+2 Ethernet ports
  • AP-505H: 1+4 Ethernet ports, PSE, USB
• Maximum Clients: Up to 256 associated clients per radio.
• Supported Bands: 2.4 GHz and 5 GHz.
• Power Consumption:
  • AP-503H: 10.0W (DC), 11.4W (PoE)
  • AP-505H: 14W (DC), 51W (802.3bt PoE)
• Operating Conditions: 0°C to +40°C, 5% to 93% humidity (non-condensing).
• Dimensions:
  • AP-503H: 86mm x 40mm x 150mm
  • AP-505H: 86mm x 47mm x 150mm
