Device Supported:
Controller
HPE Aruba JX934A Wireless Controller
Part Number:
JX934A
Model:
7000 Series
HPE Aruba 7000 Series Wireless Controller Model Overview
Aruba 7000 Series Mobility Controllers are designed to transform the digital workplace, enabling secure and efficient management of cloud services and enterprise applications across branch offices. These adept controllers simplify the deployment and administration of networks while enhancing scalability. Support for up to 64 access points and 24 Ethernet ports allows these devices to accommodate over 4,000 users. With integrated security features, including stateful firewall policy enforcement and secure IP tunneling, the Aruba 7000 ensures a robust connection to both cloud and data center environments. Effortlessly deployable with zero-touch provisioning, these controllers are essential for modern business infrastructures seeking reliability and efficiency.
Key features:
Specifications:
Key features:
- Optimize cloud services and secure enterprise applications for hybrid WAN in branch locations.
- Integrated WAN compression, health checks, and zero-touch configuration for streamlined network management.
- Unify policy management with third-party security services to enhance security.
- Real-time dashboard for identifying Quality-of-Service issues and balancing application loads.
- Robust performance supporting up to 4,096 concurrent users with stateful firewall throughput up to 8 Gbps.
Specifications:

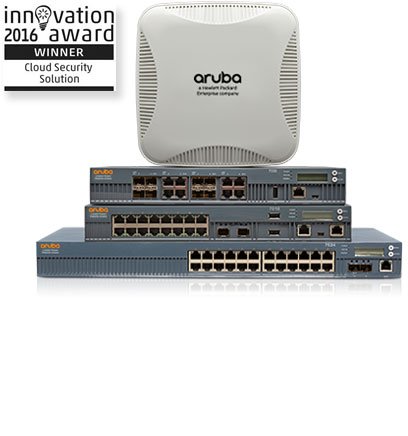

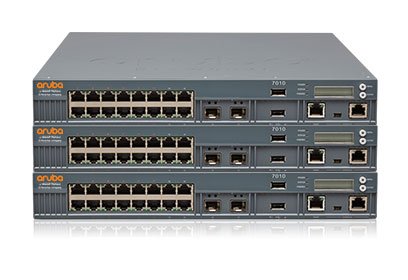

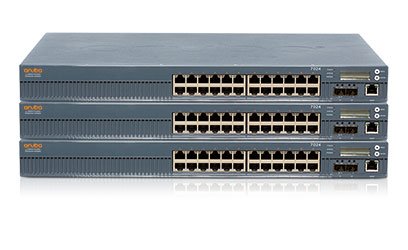

- Models: 7005, 7008, 7010, 7024, 7030
- Maximum campus AP licenses: 16 (7005 & 7008), 32 (7010 & 7024), 64 (7030)
- Maximum concurrent users/devices: 1,024 (7005 & 7008), 2,048 (7010 & 7024), 4,096 (7030)
- Firewall throughput: Up to 8 Gbps (7030)
- Power consumption: 16.6W (7005), up to 450W with PoE (7030)
- Physical Dimensions:

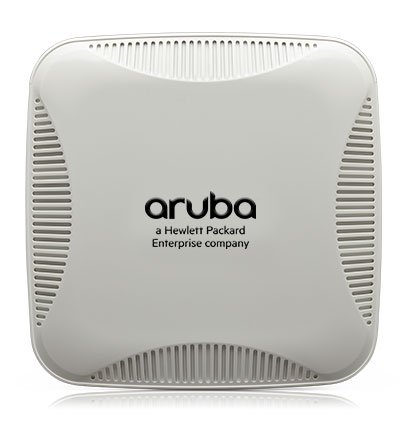

- 7005: 4.1 cm x 20 cm x 20 cm, 0.92 kg
- 7008: 4.2 cm x 20.32 cm x 20.32 cm, 1 kg
- 7030: 4.4 cm x 30.5 cm x 21.1 cm, 2.06 kg
- Operating Temperature: 0° C to 40° C
Product Information
Miscellaneous
Compatibility:
Aruba 7008 Mobility Controller
Item Numbers
GTIN:
0190017087603, 0818242734078, 0818249632353
UPC:
190017087603, 818242734078, 818249632353
EAN:
0190017087603, 0818242734078, 0818249632353
UNSPSC:
31162309
Recommended Accessories
Category
- HPE Aruba (14)
- Telecom Accessories (14)
- Wireless Controllers (14)
Recommended Accessories for Model: HPE Aruba JX934A Wireless Controller
Top HPE Aruba Purchased With HPE Aruba JX934A
-
$718.38 -
$422.69 -
$336.52
Top Telecom Accessories Purchased With HPE Aruba JX934A
-
$718.38
-
$422.69
-
$336.52
Top Wireless Controllers Purchased With HPE Aruba JX934A
-
$718.38
-
$422.69
-
$336.52
Frequently Asked Questions
What wireless access points can the HPE Aruba JX934A controller support?
The HPE Aruba 7000 Series Mobility Controller supports up to 64 access points, making it ideal for medium to large enterprise deployments across branch offices and head-end locations. This scalability allows you to expand your wireless network without requiring additional controller hardware. Contact us today to discuss the right AP configuration for your deployment needs.
Does the Aruba 7000 Series controller support hybrid WAN connectivity?
Yes, the HPE Aruba JX934A combines wireless, wired, and hybrid WAN services with integrated WAN compression and health checks to optimize cloud services and secure enterprise applications. This unified approach reduces deployment complexity and cost while supporting secure connectivity across branch offices. We offer complete hybrid WAN solutions—visit barcodesinc.com to explore our full Aruba networking portfolio.
How many Ethernet ports does the Aruba 7008 controller include?
The Aruba 7000 Series Mobility Controller features 24 Ethernet ports for wired connectivity and management. Combined with support for up to 64 wireless access points, this provides comprehensive network connectivity for enterprise deployments. Our team can help you plan the right port configuration for your infrastructure requirements.
What security and policy management features does the HPE Aruba JX934A offer?
The controller unifies policy management with third-party security services and includes policy-based routing to create a secure digital workplace experience. It supports zero-touch configuration for simplified deployment and integrated health checks to maintain network integrity across head-end and branch locations. Contact us today for guidance on implementing security policies that match your enterprise requirements.
Is the Aruba 7008 controller suitable for branch office deployments?
Yes, the HPE Aruba 7000 Series is specifically designed to optimize cloud services and reduce deployment complexity at branch offices while supporting hybrid WAN services. The controller's integrated WAN compression and zero-touch configuration make it ideal for distributed enterprise networks. We offer complete branch networking solutions—visit barcodesinc.com to discuss your deployment scenario.
What is the 19-inch rack mount kit (JX934A-MNT-19) used for?
The Aruba 7008-MNT-19 19-inch rack mount kit enables you to install the Aruba 7000 Series controller in standard server racks, optimizing space in data centers and network closets. This is essential for professional deployments where rack-mounted infrastructure is required. Available from us—contact us today for complete controller and mounting solutions.
