HPE Aruba 7000 Series Wireless Controller Model Overview
Aruba 7000 Series Mobility Controllers are designed to transform the digital workplace, enabling secure and efficient management of cloud services and enterprise applications across branch offices. These adept controllers simplify the deployment and administration of networks while enhancing scalability. Support for up to 64 access points and 24 Ethernet ports allows these devices to accommodate over 4,000 users. With integrated security features, including stateful firewall policy enforcement and secure IP tunneling, the Aruba 7000 ensures a robust connection to both cloud and data center environments. Effortlessly deployable with zero-touch provisioning, these controllers are essential for modern business infrastructures seeking reliability and efficiency. Key features:
Optimize cloud services and secure enterprise applications for hybrid WAN in branch locations.
Integrated WAN compression, health checks, and zero-touch configuration for streamlined network management.
Unify policy management with third-party security services to enhance security.
Real-time dashboard for identifying Quality-of-Service issues and balancing application loads.
Robust performance supporting up to 4,096 concurrent users with stateful firewall throughput up to 8 Gbps.
Specifications:
Models: 7005, 7008, 7010, 7024, 7030
Maximum campus AP licenses: 16 (7005 & 7008), 32 (7010 & 7024), 64 (7030)
Power consumption: 16.6W (7005), up to 450W with PoE (7030)
Physical Dimensions:
7005: 4.1 cm x 20 cm x 20 cm, 0.92 kg
7008: 4.2 cm x 20.32 cm x 20.32 cm, 1 kg
7030: 4.4 cm x 30.5 cm x 21.1 cm, 2.06 kg
Operating Temperature: 0° C to 40° C
HPE Aruba JW687A Wireless Controller Overview
Aruba 7000 series Cloud Services Controllers optimize cloud services and secure enterprise applications at branch offices while providing configuration, management, encryption, and application visibility to ensure the reliable delivery of network services.
The 7005, 7010 and 7030 Cloud Services Controllers support 16, 32 and 64 APs, respectively. The Cloud Services Controllers also unify policy management for wired and wireless, making it simple and cost-effective to create an all-wireless workplace at branch offices.
Capable of handling up to 4,000 users, the 7000 series performs stateful firewall policy enforcement at up to 8 Gbps. Secure IP tunnels protect branch traffic across the public and private transport network to the cloud and headquarters. Local bridging can be performed, depending on end-user applications or IT traffic forwarding requirements.
The 7000 series also supports Aruba's Next-Generation Mobility Firewall with AppRF™ technology, which continuously evaluates app usage and performance and makes configuration changes in real-time to ensure optimal bandwidth, priority and network paths in branch offices.
This ensures the best possible app experience in the branch, even for apps that are hidden as encrypted or web traffic. And IT gets unprecedented insight into over 1,500 apps, including cloud and web-based apps like Lync, SharePoint, Box, GoToMeeting and Salesforce.com.
A real-time dashboard makes it easy to identify and correct quality-of-service tags, load-balance specific apps across APs, adjust RF management and roaming parameters for latency- sensitive apps, and apply bandwidth contracts per app or for a group of apps.
The 7000 series supports other enterprise-critical capabilities like authentication, VPN connections, IPv4 and IPv6 services, the Policy Enforcement Firewall™, Adaptive Radio Management™ and ClientMatch™ technologies, and RFProtect™ spectrum analysis and wireless intrusion protection.
How many access points and concurrent users does the HPE Aruba 7030 controller support?
The HPE Aruba 7030 supports up to 64 access points and 4,096 concurrent users/devices, making it ideal for large enterprise deployments across multiple branch locations. This capacity allows you to manage extensive wireless networks while maintaining robust performance and security across your organization.

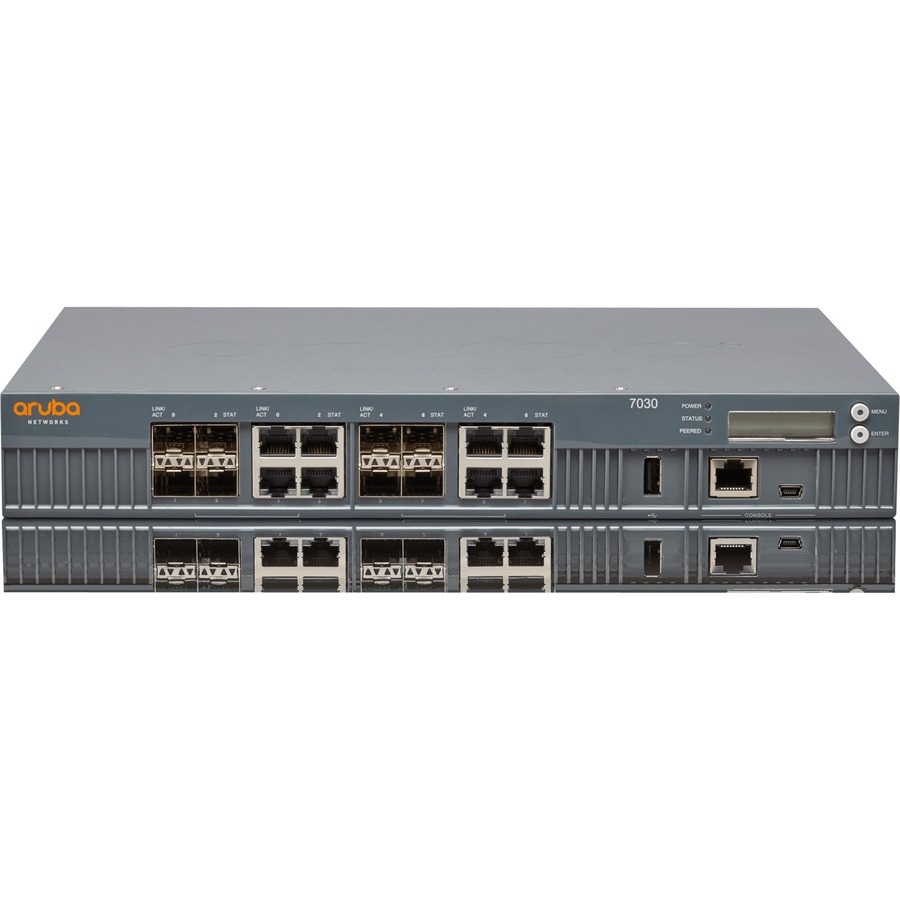

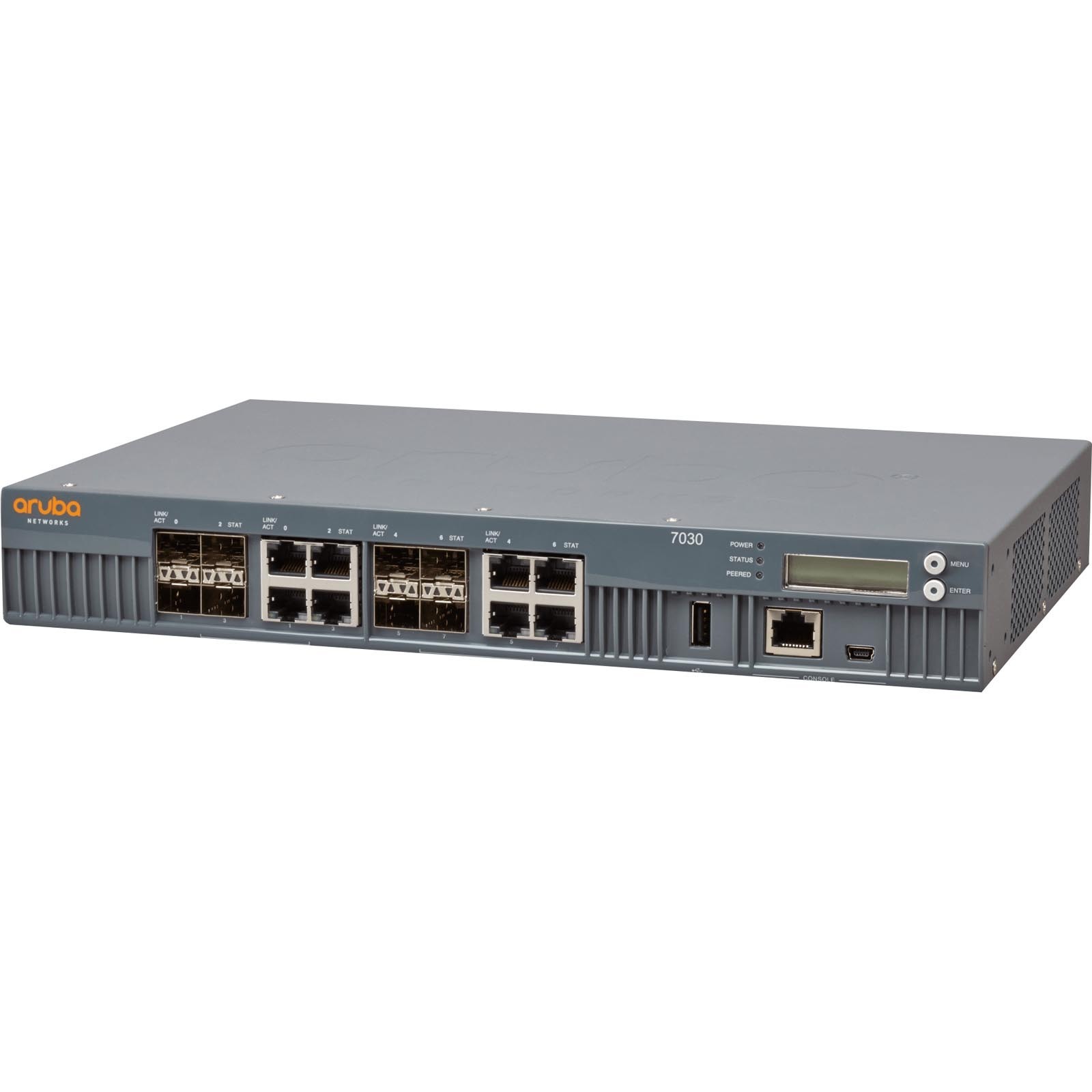

What are the network interface options on the Aruba 7030 controller?
The Aruba 7030 features 8 auto-negotiating 10/100/1000BASE-T ports with dual personality SFP support, providing flexible connectivity options for both copper and fiber connections. These dual personality ports allow you to choose between standard Gigabit Ethernet or SFP connectivity based on your network infrastructure requirements.
What security features does the Aruba 7030 provide for enterprise networks?
The Aruba 7030 includes stateful firewall policy enforcement with 8 Gbps throughput, support for up to 2,048 concurrent IPsec sessions, and 1,024 concurrent GRE tunnels for secure IP tunneling to cloud and data center environments. These integrated security capabilities enable unified policy management with third-party security services to create a secure digital workplace experience.
Does the HPE Aruba 7030 support zero-touch configuration and WAN optimization?
Yes, the Aruba 7030 features zero-touch configuration for streamlined deployment and integrated WAN compression to optimize bandwidth utilization across branch offices. The controller also includes health checks and policy-based routing to simplify network management and reduce deployment complexity.
What is the firewall throughput and encrypted throughput performance of the Aruba 7030?
The Aruba 7030 delivers 8 Gbps firewall throughput and supports encrypted throughput of up to 4.0 Gbps with AES-CCM encryption, or 2.4 Gbps with 3DES and AES-CBC encryption. This performance level ensures secure handling of enterprise traffic while maintaining high-speed data processing for demanding applications.
Is the Aruba 7030 suitable for hybrid WAN deployments in branch offices?
Yes, the Aruba 7030 is specifically designed to optimize cloud services and secure enterprise applications for hybrid WAN at branch offices while reducing deployment and management costs. The controller combines wireless, wired, and hybrid WAN services with integrated features like WAN compression and policy-based routing to support complex branch network architectures. Contact us today to discuss how we can deploy this solution for your branch office requirements.
The HPE Aruba JW687A Wireless Controller is also known as
HPE-JW687A
Full specifications (PDF)
