HPE Aruba JW686A Wireless Controller

Part Number: JW686A
Model: 7000 Series
Add to My Shopping List Add to Compare
$9,235.25
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Ethernet Technology
Gigabit Ethernet
Number of Network (RJ-45) Ports
8
PoE (RJ-45) Port
No
VGA
No

Product Description:

  8x10/100/1000BASE-T or 8x1GBASE-X SFP dual personality ports, Supports up to 64 AP and 4K clients. Integrated AC power supply. This SKU is a rest-of-world product and should not be deployed in the United States.
Explore all HPE Aruba 7000 Series Wireless Controllers
Add to Quote
HPE Aruba JW686A Wireless Controller
HPE Aruba JW686A Wireless Controller
HPE Aruba JW686A Wireless Controller
HPE Aruba JW686A Wireless Controller
HPE Aruba JW686A Wireless Controller
HPE Aruba JW686A Wireless Controller
HPE Aruba JW686A Wireless Controller HPE Aruba JW686A Wireless Controller HPE Aruba JW686A Wireless Controller HPE Aruba JW686A Wireless Controller HPE Aruba JW686A Wireless Controller HPE Aruba JW686A Wireless Controller
Full specifications (PDF)

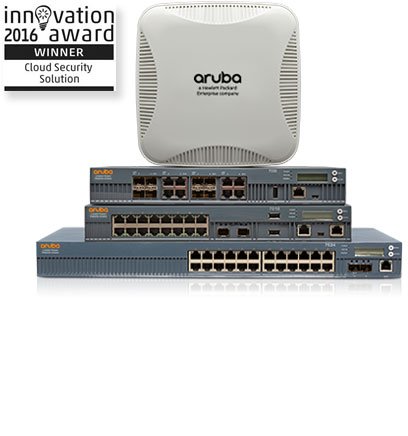

HPE Aruba 7000 Series Wireless Controller Model Overview

Aruba 7000 Series Mobility Controllers are designed to transform the digital workplace, enabling secure and efficient management of cloud services and enterprise applications across branch offices. These adept controllers simplify the deployment and administration of networks while enhancing scalability. Support for up to 64 access points and 24 Ethernet ports allows these devices to accommodate over 4,000 users. With integrated security features, including stateful firewall policy enforcement and secure IP tunneling, the Aruba 7000 ensures a robust connection to both cloud and data center environments. Effortlessly deployable with zero-touch provisioning, these controllers are essential for modern business infrastructures seeking reliability and efficiency.
Key features:
  • Optimize cloud services and secure enterprise applications for hybrid WAN in branch locations.
  • Integrated WAN compression, health checks, and zero-touch configuration for streamlined network management.
  • Unify policy management with third-party security services to enhance security.
  • Real-time dashboard for identifying Quality-of-Service issues and balancing application loads.
  • Robust performance supporting up to 4,096 concurrent users with stateful firewall throughput up to 8 Gbps.

Specifications:

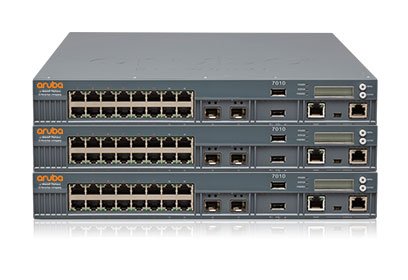

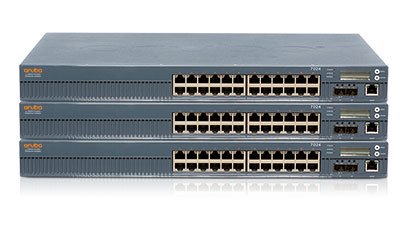

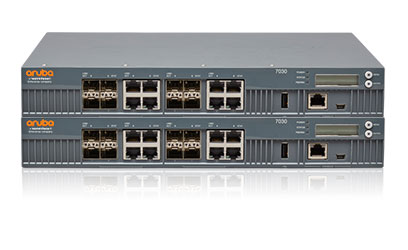

  • Models: 7005, 7008, 7010, 7024, 7030
    • Maximum campus AP licenses: 16 (7005 & 7008), 32 (7010 & 7024), 64 (7030)
    • Maximum concurrent users/devices: 1,024 (7005 & 7008), 2,048 (7010 & 7024), 4,096 (7030)
    • Firewall throughput: Up to 8 Gbps (7030)
    • Power consumption: 16.6W (7005), up to 450W with PoE (7030)
  • Physical Dimensions:
    • 7005: 4.1 cm x 20 cm x 20 cm, 0.92 kg
    • 7008: 4.2 cm x 20.32 cm x 20.32 cm, 1 kg
    • 7030: 4.4 cm x 30.5 cm x 21.1 cm, 2.06 kg
  • Operating Temperature: 0° C to 40° C
HPE Aruba JW686A Wireless Controller Overview

Aruba 7000 series Cloud Services Controllers optimize cloud services and secure enterprise applications at branch offices while providing configuration, management, encryption, and application visibility to ensure the reliable delivery of network services.

The 7005, 7010 and 7030 Cloud Services Controllers support 16, 32 and 64 APs, respectively. The Cloud Services Controllers also unify policy management for wired and wireless, making it simple and cost-effective to create an all-wireless workplace at branch offices.

Capable of handling up to 4,000 users, the 7000 series performs stateful firewall policy enforcement at up to 8 Gbps. Secure IP tunnels protect branch traffic across the public and private transport network to the cloud and headquarters. Local bridging can be performed, depending on end-user applications or IT traffic forwarding requirements.

The 7000 series also supports Aruba's Next-Generation Mobility Firewall with AppRF™ technology, which continuously evaluates app usage and performance and makes configuration changes in real-time to ensure optimal bandwidth, priority and network paths in branch offices.

This ensures the best possible app experience in the branch, even for apps that are hidden as encrypted or web traffic. And IT gets unprecedented insight into over 1,500 apps, including cloud and web-based apps like Lync, SharePoint, Box, GoToMeeting and Salesforce.com. A real-time dashboard makes it easy to identify and correct quality-of-service tags, load-balance specific apps across APs, adjust RF management and roaming parameters for latency-sensitive apps, and apply bandwidth contracts per app or for a group of apps.

The 7000 series supports other enterprise-critical capabilities like authentication, VPN connections, IPv4 and IPv6 services, the Policy Enforcement Firewall™, Adaptive Radio Management™ and ClientMatch™ technologies, and RFProtect™ spectrum analysis and wireless intrusion protection.

Full specifications (PDF)
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
8
PoE (RJ-45) Port:
No
VGA:
No
HDMI:
No
USB:
Yes
Powerline:
No
Management Port:
Yes
Physical Characteristics
Form Factor:
Rack-mountable
Height:
1.7"
Width:
12"
Depth:
8.3"
Weight (Approximate):
4.54 lb
Miscellaneous
Country of Origin:
China
Item Numbers
GTIN: 0190017027418, 1900170274180
UPC: 190017027418
EAN: 0190017027418, 1900170274180
UNSPSC: 43222600

Recommended Accessories

Category

  • HPE Aruba (14)
  • Telecom Accessories (14)
  • Wireless Controllers (14)

Recommended Accessories for Model: HPE Aruba JW686A Wireless Controller

Top HPE Aruba Purchased With HPE Aruba JW686A

See All HPE Aruba for HPE Aruba JW686A Wireless Controller >

Top Telecom Accessories Purchased With HPE Aruba JW686A

See All Telecom Accessories for HPE Aruba JW686A Wireless Controller >

Top Wireless Controllers Purchased With HPE Aruba JW686A

See All Wireless Controllers for HPE Aruba JW686A Wireless Controller >

Frequently Asked Questions

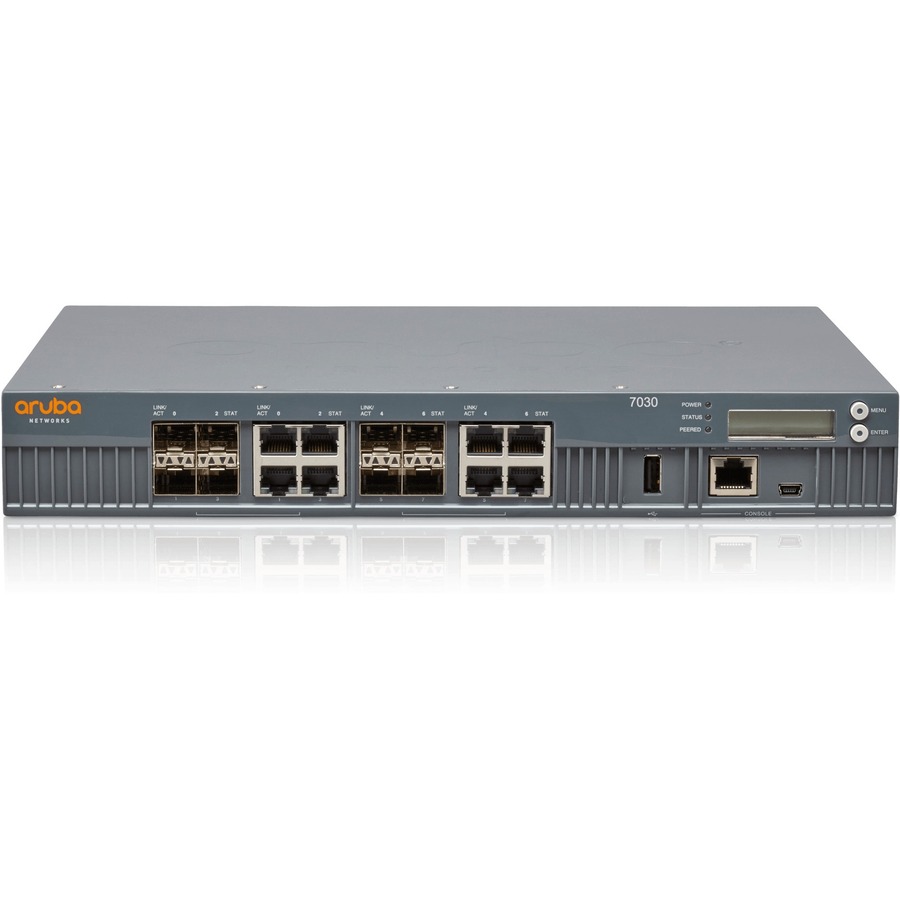

The HPE Aruba 7030 controller (JW686A) supports up to 64 access points and 4,096 concurrent users or devices. This makes it ideal for larger enterprise deployments requiring scalable wireless coverage across multiple locations. We offer this controller as part of our comprehensive Aruba networking solutions to support your growing infrastructure needs.

The JW686A features 8 auto-negotiating 10/100/1000BASE-T ports with dual personality capability, allowing them to function as either Gigabit Ethernet ports or 1GBASE-X SFP connections. This flexible dual-personality design enables seamless integration into diverse network environments without requiring separate hardware configurations. Contact us today to discuss which port configuration best fits your deployment requirements.

The Aruba 7030 delivers enterprise-grade security with support for up to 65,536 active firewall sessions, 2,048 concurrent IPsec sessions, and 1,024 concurrent GRE tunnels. It provides encrypted throughput up to 2.4 Gbps with 3DES and AES-CBC encryption, and 4.0 Gbps with AES-CCM encryption, ensuring secure communications for sensitive enterprise data. The integrated stateful firewall and policy-based routing unify security management with third-party services for comprehensive protection.

Yes, the Aruba 7030 is specifically designed to optimize cloud services and secure enterprise applications for hybrid WAN at branch offices while reducing deployment and management complexity. It features integrated WAN compression, health checks, and zero-touch configuration capabilities that streamline branch network administration. Visit barcodesinc.com to explore how this controller can simplify your multi-location wireless infrastructure.

The Aruba 7030 delivers 8 Gbps firewall throughput, making it suitable for high-performance enterprise environments requiring robust security inspection and policy enforcement. This performance level supports demanding applications while maintaining encrypted traffic processing at up to 4.0 Gbps with AES-CCM encryption. Available from us with full technical support to ensure optimal deployment in your network.

The Aruba 7030 includes an LCD panel with navigation buttons, management and status LEDs, a dedicated out-of-band management port, and a console port for comprehensive device administration. It supports real-time dashboards for identifying Quality-of-Service issues and balancing application loads across your network. Contact us today for assistance with configuration and management strategies tailored to your enterprise requirements.

The HPE Aruba JW686A Wireless Controller is also known as HPE-JW686A
