HPE Aruba JW679A Wireless Controller

Part Number: JW679A
Model: 7000 Series
Add to My Shopping List Add to Compare
$2,280.00
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Ethernet Technology
Gigabit Ethernet
Number of Network (RJ-45) Ports
16
PoE (RJ-45) Port
Yes
VGA
No

Product Description:

  12x10/100/1000BASE-T PoE/PoE+ (150W), 4x10/100/1000BASE-T, 2x1G BASE-X SFP ports, Supports up to 32AP and 2K clients. Integrated AC power supply. This SKU is an US only SKU and should not be deployed in rest-of-world.
Explore all HPE Aruba 7000 Series Wireless Controllers
Add to Quote
HPE Aruba JW679A Wireless Controller
HPE Aruba JW679A Wireless Controller
HPE Aruba JW679A Wireless Controller
HPE Aruba JW679A Wireless Controller
HPE Aruba JW679A Wireless Controller
HPE Aruba JW679A Wireless Controller
HPE Aruba JW679A Wireless Controller HPE Aruba JW679A Wireless Controller HPE Aruba JW679A Wireless Controller HPE Aruba JW679A Wireless Controller HPE Aruba JW679A Wireless Controller HPE Aruba JW679A Wireless Controller
Full specifications (PDF)

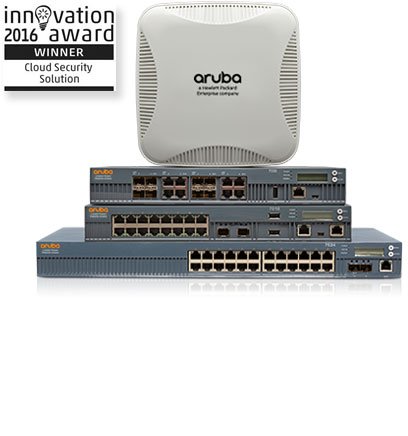

HPE Aruba 7000 Series Wireless Controller Model Overview

Aruba 7000 Series Mobility Controllers are designed to transform the digital workplace, enabling secure and efficient management of cloud services and enterprise applications across branch offices. These adept controllers simplify the deployment and administration of networks while enhancing scalability. Support for up to 64 access points and 24 Ethernet ports allows these devices to accommodate over 4,000 users. With integrated security features, including stateful firewall policy enforcement and secure IP tunneling, the Aruba 7000 ensures a robust connection to both cloud and data center environments. Effortlessly deployable with zero-touch provisioning, these controllers are essential for modern business infrastructures seeking reliability and efficiency.
Key features:
  • Optimize cloud services and secure enterprise applications for hybrid WAN in branch locations.
  • Integrated WAN compression, health checks, and zero-touch configuration for streamlined network management.
  • Unify policy management with third-party security services to enhance security.
  • Real-time dashboard for identifying Quality-of-Service issues and balancing application loads.
  • Robust performance supporting up to 4,096 concurrent users with stateful firewall throughput up to 8 Gbps.

Specifications:

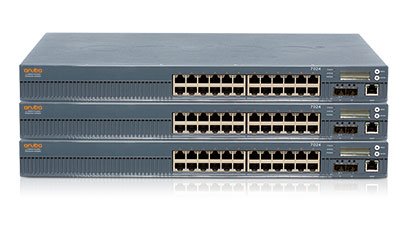

  • Models: 7005, 7008, 7010, 7024, 7030
    • Maximum campus AP licenses: 16 (7005 & 7008), 32 (7010 & 7024), 64 (7030)
    • Maximum concurrent users/devices: 1,024 (7005 & 7008), 2,048 (7010 & 7024), 4,096 (7030)
    • Firewall throughput: Up to 8 Gbps (7030)
    • Power consumption: 16.6W (7005), up to 450W with PoE (7030)
  • Physical Dimensions:
    • 7005: 4.1 cm x 20 cm x 20 cm, 0.92 kg
    • 7008: 4.2 cm x 20.32 cm x 20.32 cm, 1 kg
    • 7030: 4.4 cm x 30.5 cm x 21.1 cm, 2.06 kg
  • Operating Temperature: 0° C to 40° C
HPE Aruba JW679A Wireless Controller Overview

Aruba 7000 series Cloud Services Controllers optimize cloud services and secure enterprise applications at branch offices while providing configuration, management, encryption, and application visibility to ensure the reliable delivery of network services.

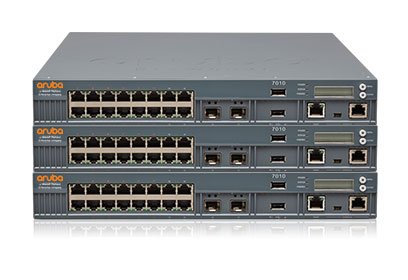

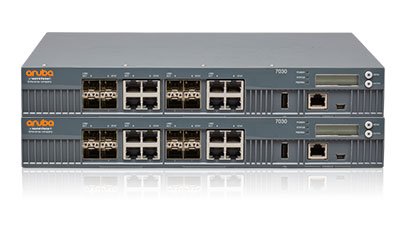

The 7005, 7010 and 7030 Cloud Services Controllers support 16, 32 and 64 APs, respectively. The Cloud Services Controllers also unify policy management for wired and wireless, making it simple and cost-effective to create an all-wireless workplace at branch offices.

Capable of handling up to 4,000 users, the 7000 series performs stateful firewall policy enforcement at up to 8 Gbps. Secure IP tunnels protect branch traffic across the public and private transport network to the cloud and headquarters. Local bridging can be performed, depending on end-user applications or IT traffic forwarding requirements.

The 7000 series also supports Aruba's Next-Generation Mobility Firewall with AppRF™ technology, which continuously evaluates app usage and performance and makes configuration changes in real-time to ensure optimal bandwidth, priority and network paths in branch offices.

This ensures the best possible app experience in the branch, even for apps that are hidden as encrypted or web traffic. And IT gets unprecedented insight into over 1,500 apps, including cloud and web-based apps like Lync, SharePoint, Box, GoToMeeting and Salesforce.com. A real-time dashboard makes it easy to identify and correct quality-of-service tags, load-balance specific apps across APs, adjust RF management and roaming parameters for latency-sensitive apps, and apply bandwidth contracts per app or for a group of apps.

The 7000 series supports other enterprise-critical capabilities like authentication, VPN connections, IPv4 and IPv6 services, the Policy Enforcement Firewall™, Adaptive Radio Management™ and ClientMatch™ technologies, and RFProtect™ spectrum analysis and wireless intrusion protection.

Full specifications (PDF)
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
16
PoE (RJ-45) Port:
Yes
VGA:
No
HDMI:
No
USB:
Yes
Powerline:
No
Management Port:
Yes
Physical Characteristics
Form Factor:
Rack-mountable
Height:
1.7"
Width:
12.5"
Depth:
13.3"
Weight (Approximate):
7.50 lb
Miscellaneous
Certifications & Standards:
  • cTUVus
    • Country of Origin:
    China
    Environmentally Friendly:
    Yes
    Item Numbers
    GTIN: 0190017027340, 0641753363471, 0657379397974, 0842024848059
    UPC: 190017027340, 641753363471, 657379397974, 842024848059
    EAN: 0190017027340, 0641753363471, 0657379397974, 0842024848059
    UNSPSC: 43222600

    Recommended Accessories

    Category

    • HPE Aruba (14)
    • Telecom Accessories (14)
    • Wireless Controllers (14)

    Recommended Accessories for Model: HPE Aruba JW679A Wireless Controller

    Top HPE Aruba Purchased With HPE Aruba JW679A

    See All HPE Aruba for HPE Aruba JW679A Wireless Controller >

    Top Telecom Accessories Purchased With HPE Aruba JW679A

    See All Telecom Accessories for HPE Aruba JW679A Wireless Controller >

    Top Wireless Controllers Purchased With HPE Aruba JW679A

    See All Wireless Controllers for HPE Aruba JW679A Wireless Controller >

    Frequently Asked Questions

    The HPE Aruba 7010 supports up to 32 access points and 2,048 concurrent users or devices. This makes it ideal for mid-sized branch offices and enterprise deployments requiring reliable wireless coverage across multiple locations. We offer the 7010 as part of our comprehensive Aruba networking solutions portfolio.

    The HPE Aruba 7010 features 12 auto-negotiating 10/100/1000BASE-T PoE/PoE+ ports (150W total capacity), 4 additional 10/100/1000BASE-T ports, and 2 1G BASE-X SFP ports for uplink connectivity. This configuration provides flexible deployment options for both access and core network connections. Contact us today to discuss the right port configuration for your network architecture.

    Yes, the Aruba 7000 Series Mobility Controllers, including the 7010, are specifically designed to optimize cloud services and secure enterprise applications for hybrid WAN at branch offices. They feature integrated WAN compression, health checks, zero-touch configuration, and policy-based routing to simplify deployment and reduce network complexity. Visit barcodesinc.com to learn how we can help you implement this solution.

    The 7010 includes stateful firewall policy enforcement with 32,768 active firewall sessions, support for 1,024 concurrent IPsec sessions, and secure IP tunneling capabilities for robust connections to cloud and data center environments. It also unifies policy management with third-party security services to enhance overall network security posture. Our team can help you configure these security features for your specific requirements.

    Yes, the Aruba 7010 is purpose-built for branch office deployments, combining wireless, wired, and hybrid WAN services in a single 1 rack unit form factor. Its zero-touch provisioning capability and integrated management features significantly reduce deployment complexity and operational overhead at remote locations. Available from us with full technical support and deployment assistance.

    The HPE Aruba 7010 delivers 4 Gbps firewall throughput with encrypted throughput capabilities of 3.4 Gbps (AES-CCM) and 2.4 Gbps (3DES/AES-CBC), providing robust security processing for enterprise traffic. These performance metrics ensure that security policies don't compromise network speed in branch office environments. Contact us today for detailed performance specifications relevant to your deployment scenario.

    The HPE Aruba JW679A Wireless Controller is also known as HPE-JW679A
