HPE Aruba JW634A Wireless Controller

Part Number: JW634A
Model: 7000 Series
Add to My Shopping List Add to Compare
$1,468.27
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Ethernet Technology
Gigabit Ethernet
Number of Network (RJ-45) Ports
4
PoE (RJ-45) Port
No
PoE PD Port
Yes

Product Description:

  4x10/100/1000BASE-T ports, Supports up to 16AP and 1K clients, powered by PoE-PD ethernet port (optional DC power accessory available). This SKU is an US only SKU and should not be deployed in rest-of-world.
Explore all HPE Aruba 7000 Series Wireless Controllers
Add to Quote
HPE Aruba JW634A Wireless Controller
HPE Aruba JW634A Wireless Controller
HPE Aruba JW634A Wireless Controller
HPE Aruba JW634A Wireless Controller
HPE Aruba JW634A Wireless Controller
HPE Aruba JW634A Wireless Controller
HPE Aruba JW634A Wireless Controller
HPE Aruba JW634A Wireless Controller HPE Aruba JW634A Wireless Controller HPE Aruba JW634A Wireless Controller HPE Aruba JW634A Wireless Controller HPE Aruba JW634A Wireless Controller HPE Aruba JW634A Wireless Controller HPE Aruba JW634A Wireless Controller
Full specifications (PDF)

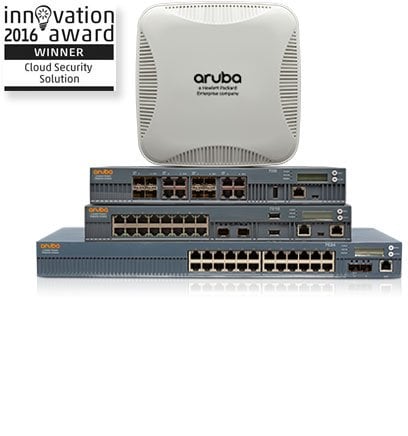

HPE Aruba 7000 Series Wireless Controller Model Overview

Aruba 7000 Series Mobility Controllers are designed to transform the digital workplace, enabling secure and efficient management of cloud services and enterprise applications across branch offices. These adept controllers simplify the deployment and administration of networks while enhancing scalability. Support for up to 64 access points and 24 Ethernet ports allows these devices to accommodate over 4,000 users. With integrated security features, including stateful firewall policy enforcement and secure IP tunneling, the Aruba 7000 ensures a robust connection to both cloud and data center environments. Effortlessly deployable with zero-touch provisioning, these controllers are essential for modern business infrastructures seeking reliability and efficiency.
Key features:
  • Optimize cloud services and secure enterprise applications for hybrid WAN in branch locations.
  • Integrated WAN compression, health checks, and zero-touch configuration for streamlined network management.
  • Unify policy management with third-party security services to enhance security.
  • Real-time dashboard for identifying Quality-of-Service issues and balancing application loads.
  • Robust performance supporting up to 4,096 concurrent users with stateful firewall throughput up to 8 Gbps.

Specifications:
  • Models: 7005, 7008, 7010, 7024, 7030
    • Maximum campus AP licenses: 16 (7005 & 7008), 32 (7010 & 7024), 64 (7030)
    • Maximum concurrent users/devices: 1,024 (7005 & 7008), 2,048 (7010 & 7024), 4,096 (7030)
    • Firewall throughput: Up to 8 Gbps (7030)
    • Power consumption: 16.6W (7005), up to 450W with PoE (7030)
  • Physical Dimensions:
    • 7005: 4.1 cm x 20 cm x 20 cm, 0.92 kg
    • 7008: 4.2 cm x 20.32 cm x 20.32 cm, 1 kg
    • 7030: 4.4 cm x 30.5 cm x 21.1 cm, 2.06 kg
  • Operating Temperature: 0° C to 40° C
HPE Aruba JW634A Wireless Controller Overview

Aruba 7000 series Cloud Services Controllers optimize cloud services and secure enterprise applications at branch offices while providing configuration, management, encryption, and application visibility to ensure the reliable delivery of network services.

The 7005, 7010 and 7030 Cloud Services Controllers support 16, 32 and 64 APs, respectively. The Cloud Services Controllers also unify policy management for wired and wireless, making it simple and cost-effective to create an all-wireless workplace at branch offices.

Capable of handling up to 4,000 users, the 7000 series performs stateful firewall policy enforcement at up to 8 Gbps. Secure IP tunnels protect branch traffic across the public and private transport network to the cloud and headquarters. Local bridging can be performed, depending on end-user applications or IT traffic forwarding requirements.

The 7000 series also supports Aruba's Next-Generation Mobility Firewall with AppRF™ technology, which continuously evaluates app usage and performance and makes configuration changes in real-time to ensure optimal bandwidth, priority and network paths in branch offices.

This ensures the best possible app experience in the branch, even for apps that are hidden as encrypted or web traffic. And IT gets unprecedented insight into over 1,500 apps, including cloud and web-based apps like Lync, SharePoint, Box, GoToMeeting and Salesforce.com.

A real-time dashboard makes it easy to identify and correct quality-of-service tags, load-balance specific apps across APs, adjust RF management and roaming parameters for latency-sensitive apps, and apply bandwidth contracts per app or for a group of apps.

The 7000 series supports other enterprise-critical capabilities like authentication, VPN connections, IPv4 and IPv6 services, the Policy Enforcement Firewall™, Adaptive Radio Management™ and ClientMatch™ technologies, and RFProtect™ spectrum analysis and wireless intrusion protection.

Full specifications (PDF)
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
4
PoE (RJ-45) Port:
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
USB:
Yes
Powerline:
No
Management Port:
Yes
Physical Characteristics
Form Factor:
Desktop
Height:
1.6"
Width:
7.9"
Depth:
7.9"
Weight (Approximate):
7.50 lb
Miscellaneous
Certifications & Standards:
  • cTUVus
    • Country of Origin:
    China
    Environmentally Friendly:
    Yes
    Item Numbers
    GTIN: 0190017026848, 0641753363464, 0657379398285, 0818214376114
    UPC: 190017026848, 641753363464, 657379398285, 818214376114
    EAN: 0190017026848, 0641753363464, 0657379398285, 0818214376114
    UNSPSC: 43222600

    Recommended Accessories

    Category

    • HPE Aruba (14)
    • Telecom Accessories (14)
    • Wireless Controllers (14)

    Recommended Accessories for Model: HPE Aruba JW634A Wireless Controller

    Top HPE Aruba Purchased With HPE Aruba JW634A

    See All HPE Aruba for HPE Aruba JW634A Wireless Controller >

    Top Telecom Accessories Purchased With HPE Aruba JW634A

    See All Telecom Accessories for HPE Aruba JW634A Wireless Controller >

    Top Wireless Controllers Purchased With HPE Aruba JW634A

    See All Wireless Controllers for HPE Aruba JW634A Wireless Controller >

    Frequently Asked Questions

    The HPE Aruba 7005 supports up to 16 access points and 1,024 concurrent users or devices. This makes it ideal for small to medium-sized branch office deployments that need reliable wireless coverage without the complexity of larger enterprise controllers. We offer the 7005 as part of our comprehensive Aruba wireless controller lineup available from barcodesinc.com.

    Yes, the Aruba 7000 Series is specifically designed to optimize cloud services and secure enterprise applications for hybrid WAN deployments at branch offices. It combines wireless, wired, and hybrid WAN services with integrated WAN compression and policy-based routing to reduce deployment complexity. Contact us today to learn how we can help you implement this solution for your branch network infrastructure.

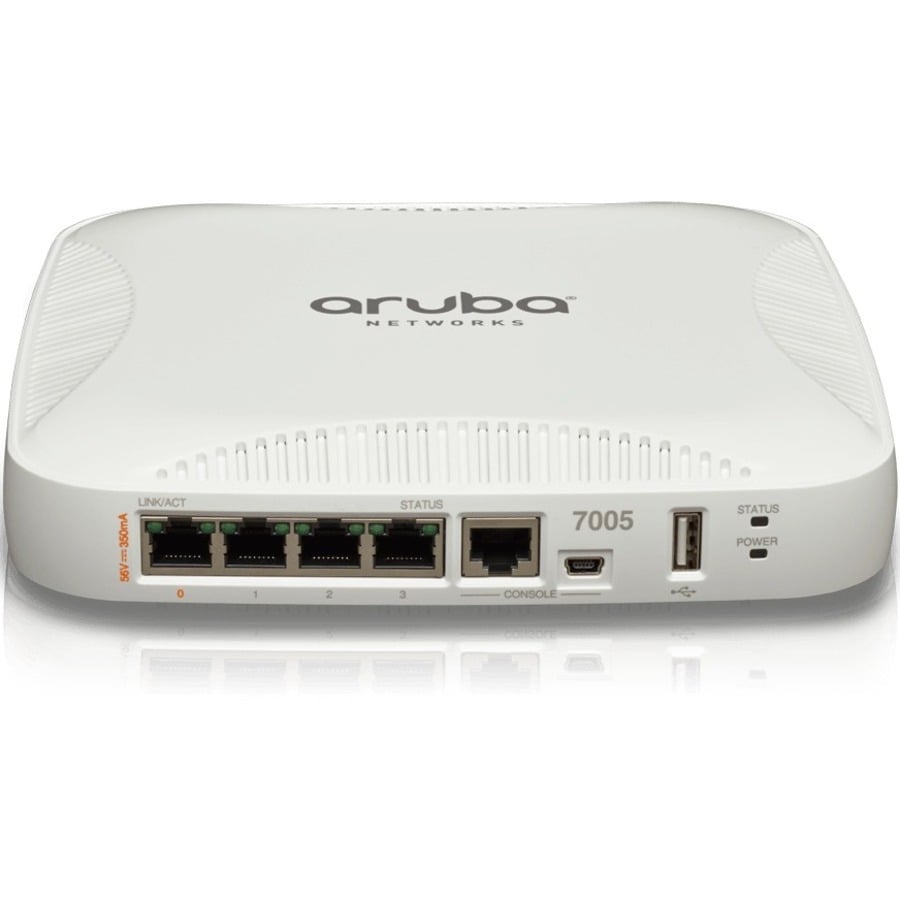

    The Aruba 7005 features 4 auto-negotiating 10/100/1000BASE-T Ethernet ports, one USB 2.0 port, and a console port (micro USB/RJ-45). The compact form factor makes it suitable for space-constrained branch office environments. Our team can help you determine if this connectivity meets your specific deployment requirements.

    Yes, the Aruba 7000 Series supports Power-over-Ethernet (PoE) delivery through its Ethernet ports, with an optional DC power accessory available for additional power requirements. This flexibility allows for simplified installation in remote branch locations where dedicated power infrastructure may be limited. Visit barcodesinc.com or contact us today for details on power accessory options.

    The Aruba 7005 includes stateful firewall policy enforcement with 16,384 active firewall sessions, secure IP tunneling with 256 concurrent GRE tunnels, and 512 concurrent IPsec sessions for encrypted communications. It also unifies policy management with third-party security services to create a comprehensive security posture across your wireless and wired networks. We offer complete support and configuration guidance for these advanced security capabilities.

    Yes, the Aruba 7000 Series features zero-touch configuration and provisioning capabilities, which significantly streamline network deployment and reduce the time and expertise required for branch office rollouts. Combined with integrated health checks and a real-time dashboard for identifying Quality-of-Service issues, this controller simplifies ongoing network management. Contact us today to discuss how zero-touch deployment can accelerate your branch network expansion.

    The HPE Aruba JW634A Wireless Controller is also known as HPE-JW634A
