AML Scepter – Mobile Computer – Android, Android 6.0, Android 7.1 – 1 GB

Part Number: M7800-1600
Model: Scepter

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
RAM Memory
1 GB
IP Rating
IP64, IP65
Interface Options
Wi-Fi
Operating System
Android, Android 6.0, Android 7.1

Product Description:

  Enterprise Mobile Computer, Wi-Fi (80211a/b/g/n), 2D Imager. Interface Cables And Charging Cradle Sold Separately.

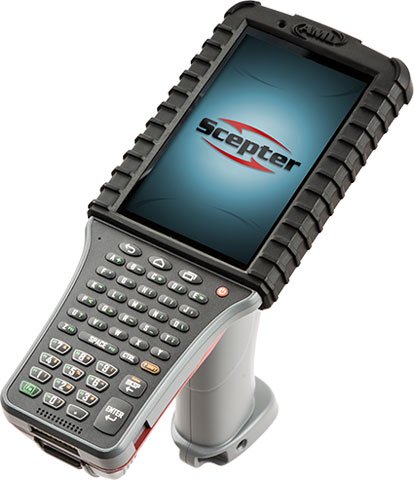

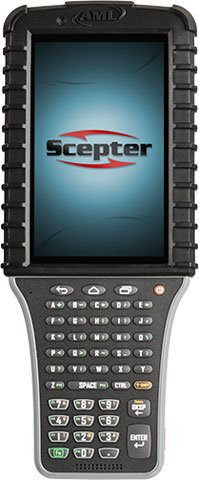

AML Scepter Mobile Computer Model Overview

The AML Scepter Enterprise Mobile Computer is the perfect blend of rugged durability and modern technology, built for demanding environments. With a stunning 5" optically-bonded capacitive touchscreen, it supports intuitive gestures and swiping, making it user-friendly for all types of tasks. Powered by Android 7.1 and a Quad Core 1GHz processor, the Scepter offers powerful performance and connectivity, equipped with various barcode scanning engines and an optional 5MP camera. This mobile computer also features a backlit alphanumeric keypad and a durable design that withstands drops up to 6 feet, making it ideal for warehouse or field use.
Key features:
  • Android 7.1 Nougat operating system
  • 5” Rugged LCD with Capacitive Touchscreen
  • Multiple Barcode Scan Engine Options
  • Backlit 47-key Alphanumeric Keypad
  • Dual-band Wi-Fi and BT BLE 4.0
  • Integrated Flashlight
  • Optional 5MP Camera

Specifications:
  • Processor: Quad Core 1GHz
  • Memory: 1GB or 2GB RAM (optional)
  • Internal Storage: 4GB eMMC
  • Display: 5.0" 480 x 800 TFT LCD, 550+ NIT Backlight
  • Dimensions: 9.5" x 4" x 6.9" (242mm x 101mm x 176mm)
  • Weight: 24oz (680g)
  • Drop Rating: 6 Feet / 1.829 Meters
  • Sealing: IP65
  • Operating Temperature: -20° C to 50° C / -4° F to 122° F
AML M7800-1600 Mobile Computer Overview

The Scepter mobile computer, from AML, combines tried-and-true convention with the new and contemporary, resulting in the most versatile barcode-scanning mobile computer available today. Designed specifically for rugged environments, the Scepter boasts the largest display of any product in its class, sizing up at 5" (127mm). The optically-bonded capacitive touch screen supports the intuitive swiping and gesturing that smart device users are accustomed to.

Powered by Android 7.1 (Nougat) running on a Quad Core 1GHz processor, the Scepter has no shortage of power, performance or resources. The dual band 802.11abgn WLAN radio and BT BLE 4.0 radio provide wireless connectivity for inside-the-four-walls environments. A wide variety of barcode scan engines are available along with an optional 5MP camera. We've even included a dual-beam LED flashlight for those dark corners of the warehouse.

For the user interface, the Scepter's 5" display provides ample room for a virtual on-screen keyboard. However, the 47-key backlit, tactile keypad delivers proven performance when keyed data is a significant component of the application.

The Scepter is the result of combining proven technology with contemporary innovation... an enterprise-grade mobile computer that will excel in virtually any task, delivering the performance and reliability demanded by today's industrial user.

The Scepter is engineered and manufactured in the U.S.A.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Image Sensor Type:
Imager
Scanner Range:
Standard Range
Sensor Type:
  • Accelerometer
  • Ambient Lighting
Drop Specification:

Drop Rating 6 Feet / 1.8 Meters

Processor & Chipset
Processor Manufacturer:
Freescale
Processor Model:
i.MX 6
Processor Core:
Quad-core (4 Core)
Memory
Standard Memory:
1 GB
Memory Card Supported:
SDXC
Display & Graphics
Screen Size:
5"
Screen Resolution:
480 x 800
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Number of Keys:
47
Keyboard Type:
Alphanumeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 4.0
Interfaces/Ports
USB:
Yes
Software
Operating System:
Android
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Environmental Conditions
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-4°F (-20°C) to 185°F (85°C)
Physical Characteristics
Form Factor:
Full-size/Gun
Rugged:
Yes
Weight (Approximate):
2.50 lb
Miscellaneous
Ingress Protection (IP) Rating:
  • IP64
  • IP65
Country of Origin:
United States
Item Numbers
UNSPSC: 43211715
