AML M7800-1101 Mobile Handheld Computer

Overview

Full specifications (PDF)

AML Scepter Mobile Computer Model Overview

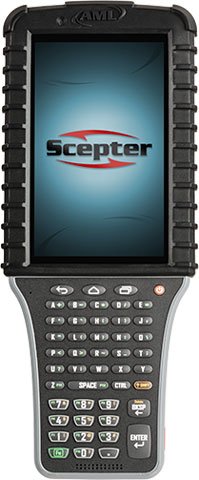

The Scepter mobile computer, from AML, combines tried-and-true convention with the new and contemporary, resulting in the most versatile barcode-scanning mobile computer available today. Designed specifically for rugged environments, the Scepter boasts the largest display available on a pistol-grip handle device, sizing up at 5". The optically-bonded capacitive touch screen supports the intuitive swiping and gesturing that smart device users are accustomed to.

AML M7800-1101 Mobile Computer Overview

Rugged Android Mobile Computer for Barcoding Applications in Industrial Facilities

The Scepter mobile computer brings the "big screen" to the rugged mobile device marketplace. With a 5" LCD it offers the largest display available on any non-tablet device. A larger display is beneficial for reviewing more data and faster task completion. The Scepter has various barcode scan engines such as 2D barcode scanning capabilities. Powered by Android, the Scepter is perfectly suited for either cloud-based or on-premise inventory management systems, using modern terminal emulation clients or the onboard web browser.

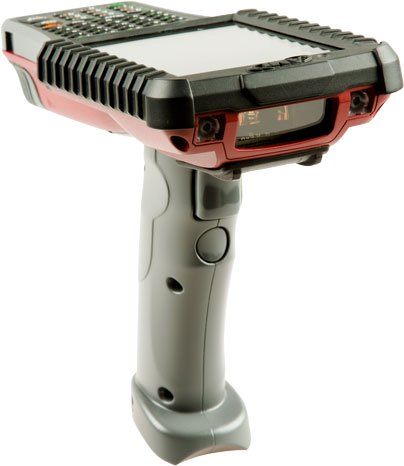

It's also rich with a variety of options such as a pistol-grip handle, multiple keypad options, and a variety of barcode scan engines to accommodate different application requirements. Specifically designed for industrial applications, the Scepter defines ruggedness and reliability, and raises the bar when it comes to performance.

The Scepter was engineered for manufacturing and warehouse barcode scanning applications, and more specifically, for inventory control tasks. The oversized 5" LCD offers plenty of screen space to accommodate more viewable data, especially for web-based applications. The added capability of long range barcode scanning makes the Scepter the ideal choice for distribution centers and with 2D barcode scanning capability, any barcode can be read in any orientation. While Windows-based barcode scanning devices are being retired in the industrial markets, rugged handheld computers running the Android operating system are the most ideal replacement devices.

Top Features

Powered by Android 7.1 (Nougat)
5" LCD with capacitive touchscreen
Integrated flashlight
Optional camera
Multiple barcode scan engine options
802.11 abgn radio
47-key backlit alphanumeric keypad
41-key backlit numeric/function keypad

The Scepter is the perfect all-day, multi-shift mobile computer for virtually any data collection application.

Designed specifically for challenging environments such as Manufacturing, Distribution, and Warehousing, any task is performed with ease using the Scepter.

Common Tasks

Receiving
Put-Away
Replenishment
Picking
Cycle Counts
Kitting
Returns
Work-in-Process Tracking

Users tasked with all-day use of a mobile computer will appreciate the engineering put into the American-Made Scepter. The model equipped with a pistol grip handle weighs in at 2 pounds (680g) and is extremely well balanced over the handle, making for comfortable operation even over long stretches of time.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Scanning Capability:

Light Source:

Laser

Scanner Range:

Standard Range

Sensor Type:

Ambient Lighting
Accelerometer

Brightness:

550 Nit

Drop Specification:

Drop Rating 5 ft.1.5 m, 6 ft.1.8 m

Processor & Chipset

Processor Manufacturer:

Freescale

Processor Model:

i.MX 6

Processor Core:

Quad-core (4 Core)

Processor Speed:

1 GHz

Memory

Standard Memory:

1 GB

Flash Memory:

4 GB

Memory Card Supported:

SDXC

Display & Graphics

Screen Size:

Screen Resolution:

480 x 800

Display Screen Type:

LCD

Touchscreen Information

Touchscreen:

Yes

Multi-touch Screen:

Yes

Keyboard/Keypad

Number of Keys:

Keyboard Type:

Alphanumeric

Network & Communication

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11a/b/g/n

Bluetooth:

Yes

Bluetooth Standard:

Bluetooth 4.0

Interfaces/Ports

USB:

Yes

Camera

Rear Camera:

Yes

Rear Camera Resolution:

5 Megapixel

Software

Operating System:

Android 7.1 Nougat

Power Description

Power Source:

Battery

Battery Information

Battery Capacity:

3350 mAh

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Voltage:

7.40 V

Environmental Conditions

Operating Temperature:

-4°F (-20°C) to 122°F (50°C)

Storage Temperature:

-4°F (-20°C) to 185°F (85°C)

Physical Characteristics

Form Factor:

Full-size/Gun

Rugged:

Yes

Weight (Approximate):

1.50 lb

Miscellaneous

Package Contents:

Scepter Handheld Terminal
Battery

Application/Usage:

Warehouse
Manufacturing
Distribution
Industrial

Ingress Protection (IP) Rating:

IP64
IP65

Country of Origin:

United States

Warranty

Limited Warranty:

1 Year

Additional Warranty Information:

AML products are warranted against defects in material and workmanship under normal use and service for a period of one year from the date of purchase. The obligation of AML under this warranty is limited to furnishing labor and materials necessary to return the product to its normal operating condition, or to replace the unit, at AML's discretion, and only on a "return to factory" basis. This limited warranty does not extend to any product, which has been modified, misused, abused, or incorrectly installed. Warranty, also, does not extend to any product that has been repaired or altered by any party other than AML, or has been subjected to unusual physical or electrical stress, negligence or accident. Prior to returning a product for repair, the user must obtain a Return Authorization Number, which must be clearly marked on the outside of the shipping container.

Item Numbers

UNSPSC: 43211715
