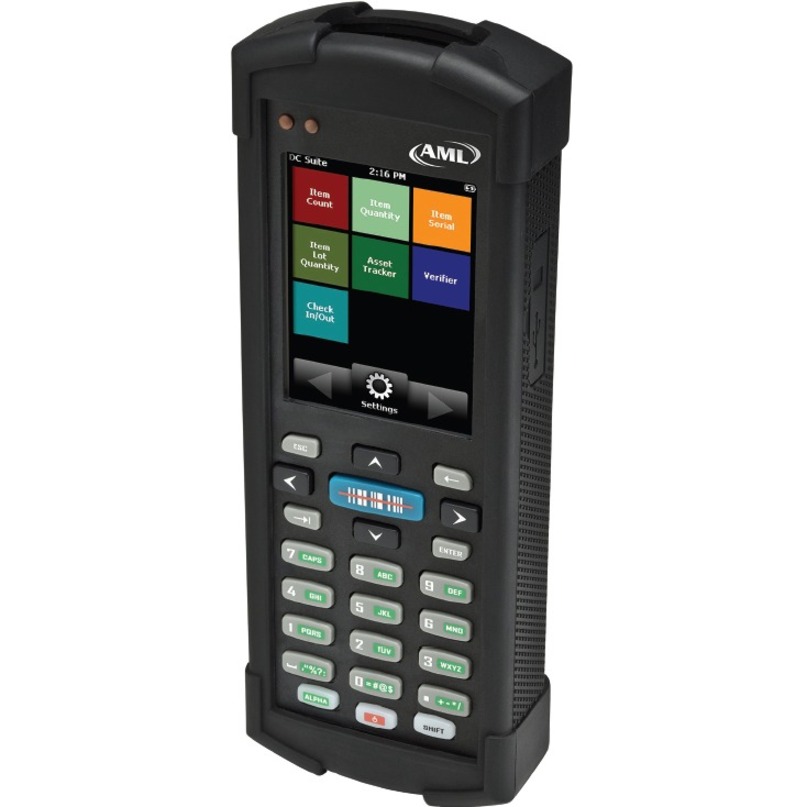

AML LDX10 – Mobile Computer – Windows CE 6.0 – 128 MB

Part Number: LDX10-0003-00

Model: LDX10

Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

RAM Memory

128 MB

IP Rating

IP54

Interface Options

None

Operating System

Windows CE 6.0

Product Description:

Batch, Mobile Computer, AML LDX10, CCD Scanner, Pre-loaded AML DC Suite Data Collection Software, 3200 MAH Battery, 24-key Alpha-Numeric Keypad, Includes USB cable and Wall Charger, Charging cradle sold separately.

Explore all AML LDX10 Mobile Computers

Add to Quote

Overview

Full specifications (PDF)

AML LDX10 Mobile Computer Model Overview

The LDX10 is AML's next-generation handheld computer, expertly designed for light-duty commercial applications with cost-efficiency in mind. Manufactured and serviced in the U.S.A., this device combines affordability with powerful capabilities, featuring a robust battery that allows for up to 4,000 scans. Pre-loaded with the DC Suite software, users can easily engage in daily barcode data collection tasks right out of the box. With its durable design and innovative features, the LDX10 is perfect for businesses looking to streamline their data acquisition processes while maintaining quality and reliability.
Key Features

Lower Investment Cost: No external cradle needed for charging or data transfer.
Durable Design: Protective silicone case with an IP54 environmental rating.
Extended Battery Life: 3200 mAh battery supporting up to 4,000 scans.
MVA Technology: Maintains display clarity from multiple angles.
ScreenFlash Technology: Visual alerts for barcode reads.
Pre-loaded Software: Seven versatile applications for immediate use.

Specifications

Dimensions: 181.5 mm L x 65 mm W x 15.1 mm D (7.15" L x 2.56" W x 0.59" D)
Weight: 270g (10.4 oz)
Display: 2.8" QVGA (320x240), 16-bit TFT LCD with MVA Technology
Power: 3200 mAh Lithium-ion battery
Operating System: Windows® Embedded CE 6.0 R3
Environmental Rating: IP54 (dust and water resistant)
Operating Temperature: -20° to 50° C (-4° to 122° F)
Humidity: 0% to 90% RH, non-condensing
Barcode Scanning: Standard Range Linear CCD with ScreenFlash Verification Technology

AML LDX10-0003-00 Mobile Computer Overview

Light Cost. Heavy Workload.

The LDX10 is the next generation of handheld computers from AML. Like all hand-held AML products, the LDX10 is engineered, manufactured, and serviced in the U.S.A. It is specifically designed for light-duty commercial applications where acquisition cost is a driving factor when selecting a data collection device.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Batch

Image Sensor Type:

CCD

Scanner Range:

Standard Range

Drop Specification:

Air Electrostatic Discharge (+/-):

15kV DC

Contact Electrostatic Discharge (+/-):

8kV DC

Processor & Chipset

Processor Manufacturer:

Freescale

Processor Type:

ARM9

Processor Speed:

454 MHz

Memory

Standard Memory:

128 MB

Flash Memory:

512 MB

Memory Card Slot:

Yes

Memory Card Supported:

microSD

Maximum Memory Card Size Supported:

16 GB

Display & Graphics

Screen Size:

2.8"

Screen Mode:

QVGA

Screen Resolution:

320 x 240

Display Color:

Color

Display Screen Type:

LCD

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Resistive

Keyboard/Keypad

Number of Keys:

Keyboard Type:

Alphanumeric

Interfaces/Ports

USB:

Yes

Software

Operating System:

Windows Embedded CE 6.0

Battery Information

Battery Capacity:

3200 mAh

Battery Chemistry:

Lithium Ion (Li-Ion)

Physical Characteristics

Width:

2.6"

Depth:

0.6"

Length:

7.1"

Weight (Approximate):

9.52 oz

Miscellaneous

Package Contents:

Batch Data Collection Handheld
DC Console Application Design Software
DC Suite Data Collection Software
USB Cable

Certifications & Standards:

FCC
CE
IP54

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Country of Origin:

United States

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43211715
