Full specifications (PDF)
Protection Type:
Fuse
Altronix WPTV244175UL Power Device
Part Number:
WPTV244175UL
Model:
WPTV244175UL
Altronix WPTV244175UL Power Device Model Overview

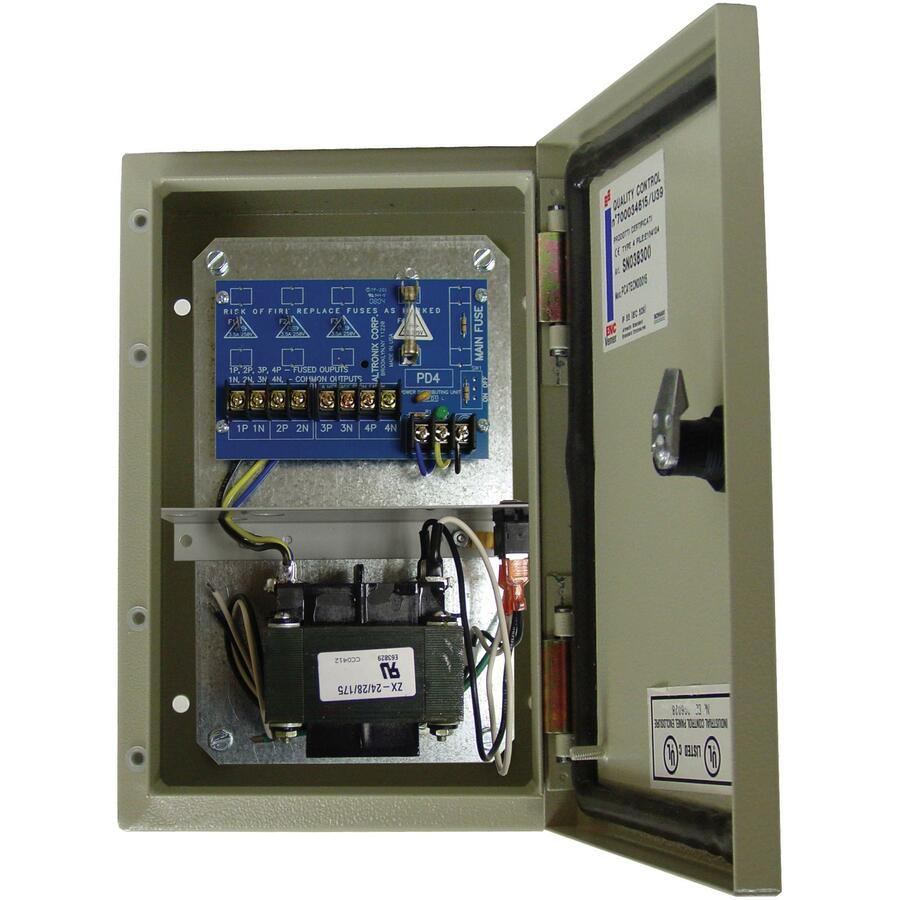

The Altronix WPTV244175UL Power Supply provides power via four (4) protected outputs for CCTV Cameras, heaters and other video accessories. It has one (1) fuse protected non-power limited output. The other three (3) are Class 2 Rated PTC protected power limited outputs rated @ 2.5 amp. WPTV244175UL Power Supply has NEMA 4 Rated enclosure for outdoor use and an illuminated power disconnect circuit breaker with manual reset.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 24 V AC
- 28 V AC
Output Voltage Detail:
- 24 V AC @ 7 A
- 28 V AC @ 6.25 A
Input Current:
1.76 A @ 110V
Output Current:
- 7 A
- 6.25 A
Physical Characteristics
Height:
12"
Width:
7.8"
Depth:
4.5"
Miscellaneous
Compatibility:
- Heaters
- CCTV Cameras
- Video Accessories
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239939893
UPC:
782239939893
EAN:
0782239939893
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix WPTV244175UL Power Device is also known as
ALT-WPTV244175UL
