Full specifications (PDF)
Protection Type:
- Fuse
- Surge

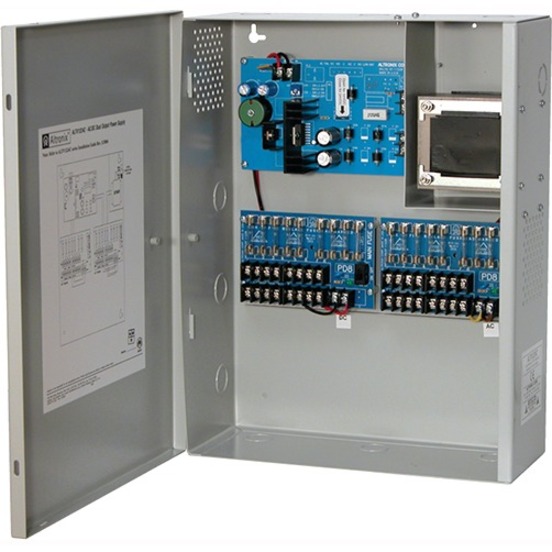

Altronix ALTV1224C Power Device
Part Number:
ALTV1224C
Model:
ALTV1224C
Altronix ALTV1224C Power Device Model Overview
The Altronix ALTV1224C AC/DC Dual Output Power Supply is the ideal solution for applications requiring both 12VDC and 24VAC outputs. With a total current capacity of 3.5 amps for each output type, this versatile power supply can effectively support a range of devices including cameras and access control systems. Its robust design includes surge suppression and an easy-to-use power ON/OFF switch, ensuring reliable performance while simplifying installation.
Key Features
Specifications
Key Features
- Eight 12VDC outputs with a total current of 3.5 amp.
- Eight 24VAC outputs also providing 3.5 amp.
- Surge suppression to protect connected devices.
- Sixteen individually fused outputs for enhanced safety.
- AC/DC power LED indicator for monitoring.
- Easy installation that saves time and reduces labor costs.
Specifications
- Input Voltage: 115VAC 50/60 Hz, 1.52 amp
- Total Output Current: 7 amp
- Main fuses: 5 amp / 250VAC
- Output fuses: 3.5 amp / 250VAC
- Dimensions: 15.5"H x 12"W x 4.5"D
- Spare fuses included
- Unit maintains camera synchronization
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 12 V DC
- 24 V AC
Output Voltage Detail:
- 12 V DC @ 3.5 A
- 24 V AC @ 3.5 A
Input Current:
1.52 A @ 110V
Output Current:
3.50 A
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Wall Mount
Height:
15.5"
Width:
12"
Depth:
4.5"
Weight (Approximate):
15.50 lb
Miscellaneous
Additional Information:
- Total Output Current 7A
- 8 x 12VDC Output
- 8 x 24VAC Output
Compatibility:
CCTV Camera
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239931231, 4703876699250
UPC:
782239931231
EAN:
0782239931231, 4703876699250
UNSPSC:
39121004
