Protection Type:
- Fuse
- Short Circuit
- Thermal Overload

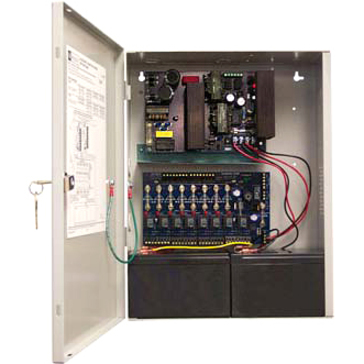

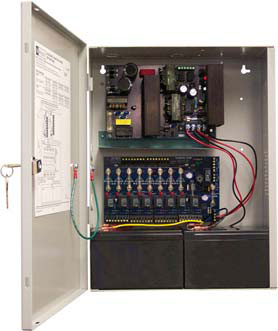

Altronix AL1024ULACM Power Device
Part Number:
AL1024ULACM
Model:
AL1024ULACM
Altronix AL1024ULACM Power Device Model Overview
The Altronix AL1024ULACM is a state-of-the-art Power Supply/Charger designed to convert an 115VAC 60Hz input into eight independently controlled 24VDC outputs, providing a total supply current of 10 amps. It seamlessly activates various access control hardware such as mag locks and electric strikes, supporting both Fail-Safe and Fail-Secure modes. With options for a single power source or two independent sources, this unit is adaptable for different operational needs. Its built-in features also allow for emergency egress and alarm monitoring, ensuring utmost reliability and safety in access control applications.
Key features:
Specifications:
Key features:
- Eight independently controlled, fuse-protected outputs.
- Filtered and electronically regulated outputs, ensuring consistent performance.
- Fire alarm disconnect feature, individually selectable for any or all outputs.
- AC fail supervision and monitoring capabilities for enhanced safety.
- Class 2 rated power limited outputs for compliance and reliability.
Specifications:
- Power Input: 115VAC 60Hz rated @ 4.4 amp.
- Supply Current: 24VDC @ 10 amp.
- Output Ratings:
- Standard Fuses rated @ 3.5 amp (AL1024ULACM).
- PTCs rated @ 2.5 amp (AL1024ULACMCB).
- Trigger Inputs: Eight (8) normally open (NO) or open collector inputs.
- Relay Outputs: Eight (8) Fail-Safe and/or Fail-Secure.
- Dimensions: 15.5"H x 12"W x 4.5"D.
Altronix AL1024ULACM Power Device Overview
Model AL1024ULACM converts a 115VAC 60Hz input into eight (8) independently controlled 24VDC non power limited fuse protected Fail-Safe and/or Fail-Secure outputs with a total of 10 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL1024ULACMCB is a PTC protected version of this unit.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
120 V AC
Output Voltage:
24 V DC
Output Voltage Detail:
24 V DC @ 10 A
Input Current:
4.4 A @ 110V
Output Current:
10 A
Physical Characteristics
Form Factor:
- Wall Mount
- Enclosure
Height:
15.5"
Width:
12.2"
Depth:
4.5"
Miscellaneous
Compatibility:
- Mag Locks
- Electric Strikes
- Magnetic Door Holders
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239935765, 0818256500935
UPC:
782239935765, 818256500935
EAN:
0782239935765, 0818256500935
UNSPSC:
39121004
