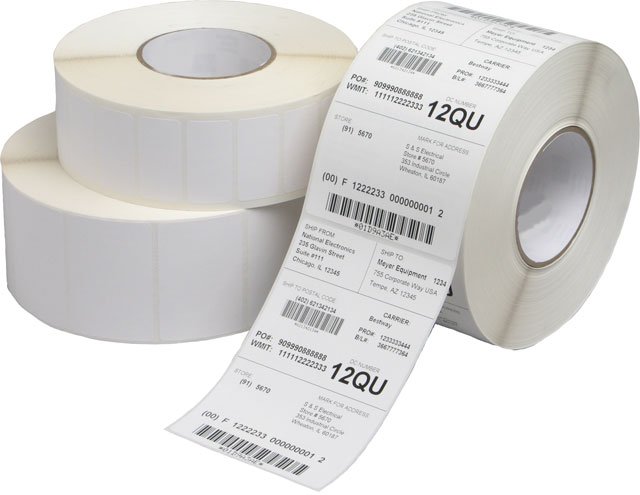

AirTrack BCI300200BIPL-BROWN-2D-S-1 Barcode Label
AirTrack® Premier Barcode Label Model Overview
We produce both Direct thermal and Thermal transfer labels in various sizes, materials, and applications. We strive to offer the highest quality product at a superior price.
AirTrack Premier Labels offer you:
- Exceptional Choice
- Increased Flexibility
- Quality Craftsmanship
- Superior Price
- A Brand You Can Trust
Frequently Asked Questions
What is the Impinj R700 RAIN RFID Reader?
The Impinj R700 is a four-port fixed RAIN RFID reader built for enterprise-grade deployments. It complies with the GS1 UHF Gen2v2 air interface standard, standardized by ISO/IEC as 18000-63, and reads up to 1,100 tags per second with a maximum receive sensitivity of -92 dBm at a 10⁻³ bit error rate.
Unlike a handheld reader, the R700 is mounted in a fixed position and connected to external antennas — four monostatic RP-TNC ports supporting up to 32 read zones. It ships in two regional variants: IPJ-R700-141 for FCC markets and IPJ-R700-241 for ETSI markets. Typical applications include loss prevention, pallet tracking, real-time inventory management, asset management, conveyor systems and supply chain visibility.
How does the Impinj R700 compare to the Speedway R420?
The R700 is a substantial hardware generation ahead. Its receive sensitivity is -92 dBm versus -84 dBm on the Speedway R420 — an 8 dB improvement that lets it read smaller tags and reach further. Processing moves from a 400 MHz single-core to a 1 GHz dual-core processor, RAM from 256 MB to 1,024 MB, and the custom application partition from 32 MB to 128 MB.
Connectivity improves as well: Gigabit Ethernet replaces 10/100, USB peripheral slots go from one to three, and the GPIO block is integrated rather than sold as an accessory. Both readers have four antenna ports, 32 maximum read zones and an 1,100 reads-per-second rate, and both support PoE and PoE+. Maximum transmit power rises slightly, from 32.5 dBm to 33.0 dBm.
How is the Impinj R700 powered, and does the power source affect performance?
The Impinj R700 is powered exclusively over Ethernet — either PoE (802.3af) or PoE+ (802.3at) — with no separate DC input. Where the reader is not connected to a PoE-capable switch, an Impinj midspan power injector (part IPJ-A2010) adds inline power to the network connection.
The power source does affect RF performance. On PoE, maximum transmit power is 30 dBm; on PoE+, it rises to 33 dBm. When connected to a device supporting Link Layer Discovery Protocol (LLDP), the R700 checks whether PoE+ is available and configures itself to use it automatically. If maximum read range matters, verify the switch or injector delivers PoE+.
How do we develop applications for and integrate with the Impinj R700?
The Impinj R700 supports four development paths. A RESTful interface allows host-based applications in over 80 languages, connecting the reader to IoT applications the same way as other IoT devices. The Octane SDK covers host-based .NET and Java development, and the LLRP Toolkit covers .NET, Java, C and C++.
For on-reader applications, the Embedded Toolkit supports C and C++ running in a 128 MB custom application partition, so tag-processing algorithms can execute at the edge rather than sending raw reads upstream. Gigabit Ethernet keeps latency low and prevents data bottlenecks. Firmware is Impinj R700 LLRP with Impinj extensions, and the network stack supports IPv4 and IPv6 with SSH, HTTP, HTTPS, NTP, DHCP, SFTP and mDNS services.
What security features does the Impinj R700 provide?
The Impinj R700 runs a secure, field-upgradable Linux operating system on a 5.1 kernel. It uses an encrypted software image and a secure software boot with chain-of-trust, which prevents unauthorized software from executing on the reader — a common requirement in enterprise and retail deployments where readers sit on the corporate network.
It supports 802.1x port security for network access control, HTTPS and SSH for encrypted management, and event logs with syslog forwarding for centralized monitoring. Firmware upgrades are web-based and can be performed remotely, so a distributed fleet can be patched without site visits.
Where can the Impinj R700 be installed, and what are its environmental limits?
The Impinj R700 has a ruggedized, shock-resistant die-cast aluminum enclosure weighing 2.12 lb. (0.96 kg), rated to United States Military Standard MIL-STD-810G for shock and vibration. Its operating temperature range is -4° F to 122° F (-20° C to 50° C) at 5–95% non-condensing humidity.
Note the sealing rating is IP50 — protected against dust, but with no rating for water ingress. The reader itself should be installed indoors or in a protected enclosure, even though Impinj offers outdoor-rated antennas such as the Times-7 Slim Outdoor and Compact Outdoor models for the read zone itself. Mounting is via VESA 100 x 100 on the enclosure bottom or two removable brackets compatible with the Impinj Speedway mounting system. Under FCC rules, professional installation is required.
Which iPhone and iPod models are compatible with the Socket Mobile DuraSled DS800?
The DuraSled DS800 is compatible with iPhone models 6, 7, 8, SE 2020, X, XR, Xs, Xs Max, 11, 11 Pro, and 11 Pro Max, as well as iPhone 6 Plus, 7 Plus, and 8 Plus. It also works with iPod touch 5th, 6th, and 7th generation devices. This wide compatibility ensures your scanning solution can adapt as you upgrade your Apple devices.
How long does the DuraSled DS800 battery last on a single charge?
The DuraSled DS800 provides up to 8 hours of active scanning time on a single charge thanks to its rechargeable Lithium Ion Polymer battery. The sled features fast charging with simultaneous charging for both the sled and scanner through integrated connectors, and magnetic docking ensures convenient charging between shifts.
What is the Bluetooth range of the DuraSled DS800?
The DuraSled DS800 has a Bluetooth wireless range of up to 10 meters (33 feet), allowing you to scan barcodes from a comfortable distance while maintaining a reliable connection to your iPhone or iPod. This range is ideal for warehouse operations, delivery services, and stock counting applications.
Is the DuraSled DS800 durable enough for warehouse and delivery environments?
Yes, the DuraSled DS800 features a durable Elastomeric protective case designed to protect your Apple device and scanner from daily challenges. It meets multiple 3.3 ft drop specifications to vinyl-covered concrete, making it suitable for demanding warehouse, delivery, and ticketing applications where durability is essential.
Can the scanner be used separately from the sled?
Yes, the DuraSled DS800 features an interchangeable scanner that can be used separately with any compatible iPhone or iPod device. This flexibility allows you to deploy the scanner independently when needed while maintaining your mobile deployment investments.
What are the operating temperature requirements for the DuraSled DS800?
The DuraSled DS800 operates reliably in temperatures ranging from +32°F to +122°F (0°C to +50°C), making it suitable for both indoor and outdoor warehouse and logistics environments. Contact us today at barcodesinc.com to discuss your specific environmental requirements and find the right scanning solution for your operation.
