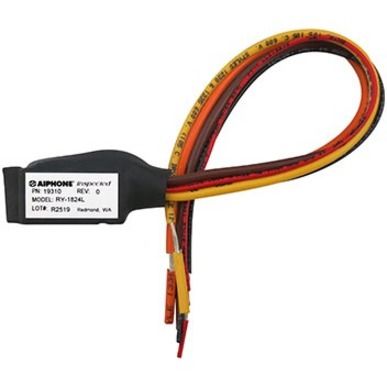

Aiphone RY-1824L Accessory Overview
The RY-1824L door release relay module is an interface between the door release contact on the Aiphone master station or CEU and the actual release mechanism. The contact closure directly from the master station or CEU has limited voltage and current capacity. Use the RY-1824L to ensure that the contact rating will be sufficient for the electric strike or magnetic lock used. The relay's contact rating supports a majority of door release hardware available. This relay is recommended for all AX, KB, JF, JO, and JP Series systems when using door release and will protect the built-in contact from possible surge damage. Us the RY-1824L with the JP-4MED, KB-3MRD, JF-2MED, JO-1MD, JO-1FD masters and sub stations or the AX-084C, AX-248C, AX-320C central control units.
Product Information
Power Description
Minimum Operating Voltage:
18 V DC
Maximum Operating Voltage:
24 V DC
Physical Characteristics
Height:
1.4"
Width:
0.8"
Depth:
0.4"
Miscellaneous
Additional Information:
- Relay Input: 18-24V DC, red and black wires, 22AWG
- Relay Output: Brown, yellow, orange wires, 18AWG
- Output Rating: 8A at 250V AC, 5A at 30V DC
- Wiring: 2-conductor from station's door release contacts to RY-1824L 2-conductor from RY-1824L to release mechanism, with power wired in series
- Country of origin: United States. Country of origin is subject to change
Compatibility:
Aiphone Masters and Sub Stations:
- JP-4MED
- KB-3MRD
- JF-2MED
- JO-1MD
- JO-1F
Aiphone Central Control Units:
- AX-084C
- AX-248C
- AX-320C
Country of Origin:
United States
Item Numbers
UNSPSC:
39122325
