Maximum Wiring Distance:
330 ft
Aiphone JP-DVF-HID Accessory
Part Number:
JP-DVF-HID
Model:
Parts
Aiphone Parts Accessory Model Overview
Products and parts from Aiphone.
Aiphone JP-DVF-HID Accessory Overview

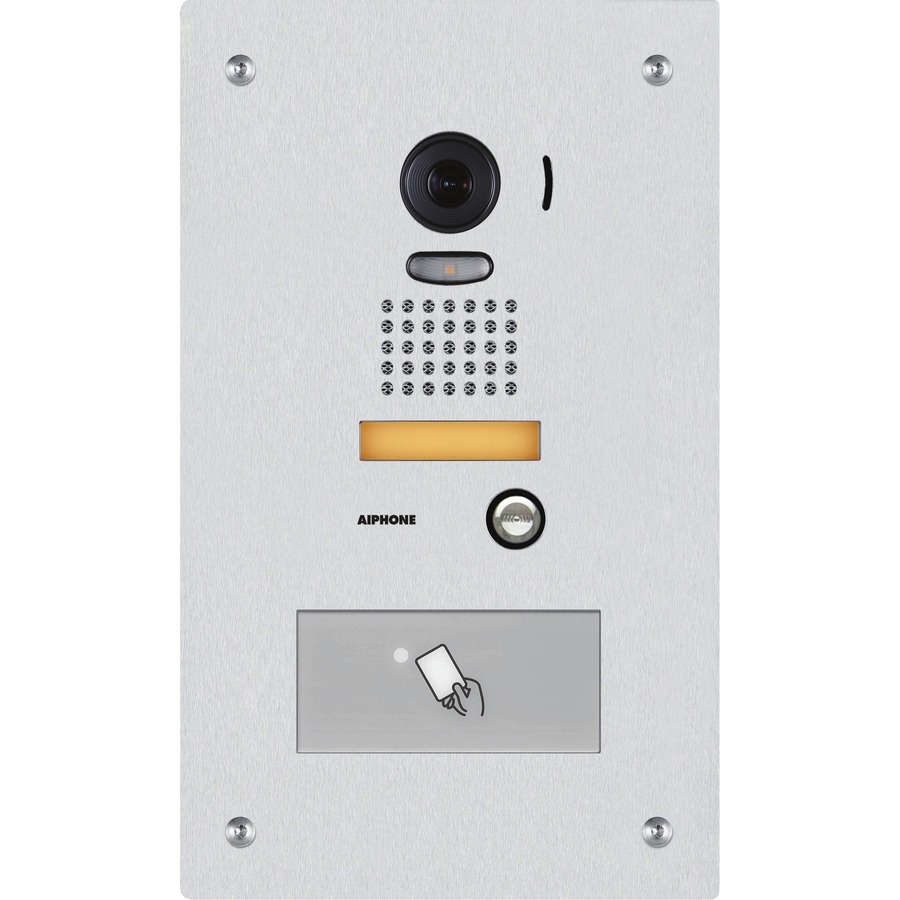

The JP-DVF-HID is a video door station for the JP Series with a built-in HID® proximity card reader.
The video door station will connect via 18AWG 2 conductor wire to the JP-4MED master station. Maximum distance from the door station to the master station is 330' with 871802 wire (980' with JPW-BA long distance adaptor).
Wiring and power for the card reader are separate from the intercom wiring. The card reader is to be connected to a host controller of any type that is compatible with the HID® ProxPoint® Plus card reader.
Flush mount with supplied back box or surface mount with SBX-IDVFRA.
The video door station will connect via 18AWG 2 conductor wire to the JP-4MED master station. Maximum distance from the door station to the master station is 330' with 871802 wire (980' with JPW-BA long distance adaptor).
Wiring and power for the card reader are separate from the intercom wiring. The card reader is to be connected to a host controller of any type that is compatible with the HID® ProxPoint® Plus card reader.
Flush mount with supplied back box or surface mount with SBX-IDVFRA.
Technical Information
Camera
Image Sensor Type:
CMOS
Minimum Illumination:
5 lux
Power Description
Input Voltage:
24 V DC
Physical Characteristics
Product Material:
Stainless Steel
Height:
11.7"
Width:
7"
Depth:
1.9"
Miscellaneous
Package Contents:
- Stainless Steel Flush Mount Video Door Station with HID Proximity Card Reader
- Back Box
Compatibility:
Aiphone JP-4MED Master Station
Item Numbers
GTIN:
0788255315307
UPC:
788255315307
EAN:
0788255315307
UNSPSC:
43191513
The Aiphone JP-DVF-HID Accessory is also known as
AIP-JPDVFHID
